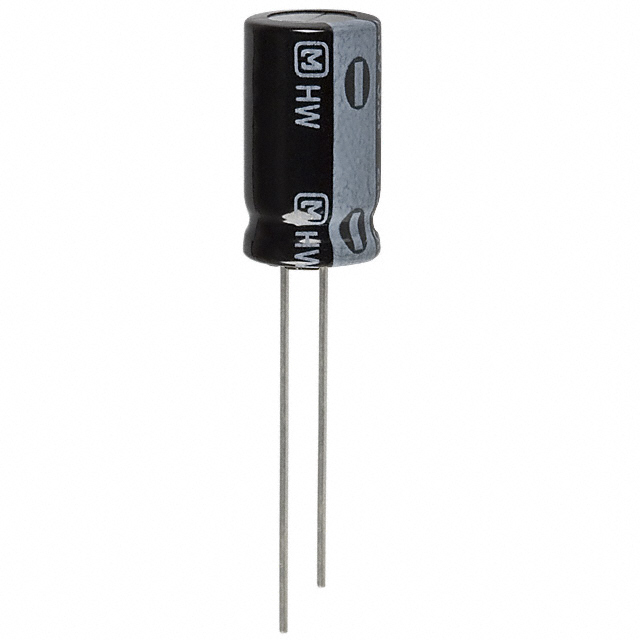

EEC-HW Series

Catalog

CAP 4.7F -20% +40% 2.3V T/H

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	ESR (Equivalent Series Resistance)	Capacitance	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Tolerance [Max]	Tolerance [Min]	Mounting Type	Termination	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components EEC-HW0D475	0.984 in	25 mm	2.3 V	300 mOhm	4.7 F	Can Radial	0.492 in	12.5 mm	-25 °C	70 °C	1000 Hrs	0.197 "	5 mm	40 %	-20 %	Through Hole	PC Pins
Panasonic Electronic Components EEC-HW0D306			2.3 V	100 mOhm	30 F	Can Radial	0.709 in	18 mm	-25 °C	60 °C	1000 Hrs	0.295 in	7.5 mm	40 %	-20 %	Through Hole	PC Pins	37 mm	1.457 in
Panasonic Electronic Components EEC-HW0D226			2.3 V	100 mOhm	22 F	Can Radial	0.709 in	18 mm	-25 °C	70 °C	1000 Hrs	0.295 in	7.5 mm	40 %	-20 %	Through Hole	PC Pins	37 mm	1.457 in

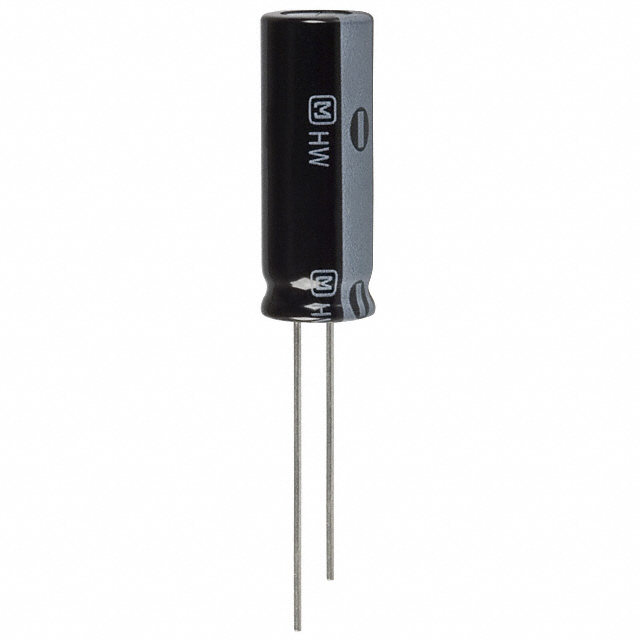

Panasonic Electronic Components EEC-HW0D106			2.3 V	200 mOhm	10 F	Can Radial	0.492 in	12.5 mm	-25 °C	70 °C	1000 Hrs	0.197 "	5 mm	40 %	-20 %	Through Hole	PC Pins	37 mm	1.457 in
Panasonic Electronic Components EEC-HW0D335	0.984 in	25 mm	2.3 V	300 mOhm	3.3 F	Can Radial	0.492 in	12.5 mm	-25 °C	70 °C	1000 Hrs	0.197 "	5 mm	40 %	-20 %	Through Hole	PC Pins
Panasonic Electronic Components EEC-HW0D506			2.3 V	100 mOhm	50 F	Can Radial	0.709 in	18 mm	-25 °C	60 °C	1000 Hrs	0.295 in	7.5 mm	40 %	-20 %	Through Hole	PC Pins		1.654 in	42 mm
