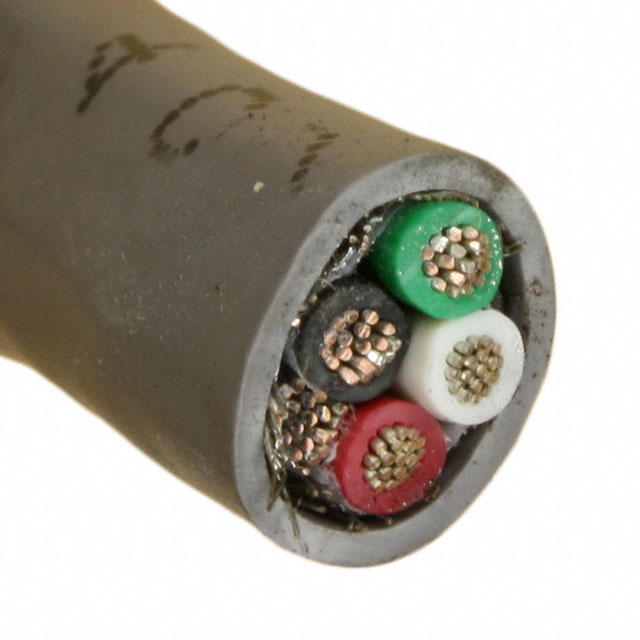

5174C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 4COND 16AWG SHLD
| Part | Shield Coverage | Shield Material | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Wire Gauge | Length | Length | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [diameter] | Conductor Material | Jacket Color | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Features | Usage | Number of Conductors | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | ISO 10993 UL Style 2464 | 8.03 mm | 0.316 " | Multi-Conductor | 16 AWG | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | 19 | 0.0117 in | Copper Tinned | Slate | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Braid Foil | Biological Compatibility Drain Wire Rip Cord | Communication Control | 4 | 300 VDC | -35 °C | 105 ░C | ||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | ISO 10993 UL Style 2464 | 8.03 mm | 0.316 " | Multi-Conductor | 16 AWG | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | 19 | 0.0117 in | Copper Tinned | Slate | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Braid Foil | Biological Compatibility Drain Wire Rip Cord | Communication Control | 4 | 300 VDC | -35 °C | 105 ░C | ||
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | ISO 10993 UL Style 2464 | 8.03 mm | 0.316 " | Multi-Conductor | 16 AWG | Poly-Vinyl Chloride (PVC) | 19 | 0.0117 in | Copper Tinned | Slate | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Braid Foil | Biological Compatibility Drain Wire Rip Cord | Communication Control | 4 | 300 VDC | -35 °C | 105 ░C | 100 ft | 30.5 m |
