AO741 Series

Catalog

MOSFET N-CH 30V 1.7A SC70-3

Part	Power Dissipation (Max)	Gate Charge (Qg) (Max) @ Vgs [Max]	Drive Voltage (Max Rds On, Min Rds On)	Supplier Device Package	Vgs(th) (Max) @ Id	Mounting Type	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds [Max]	Technology	FET Type	Operating Temperature [Max]	Operating Temperature [Min]	Vgs (Max)	Package / Case	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	Vgs (Max) [Max]	Gate Charge (Qg) (Max) @ Vgs	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Input Capacitance (Ciss) (Max) @ Vds

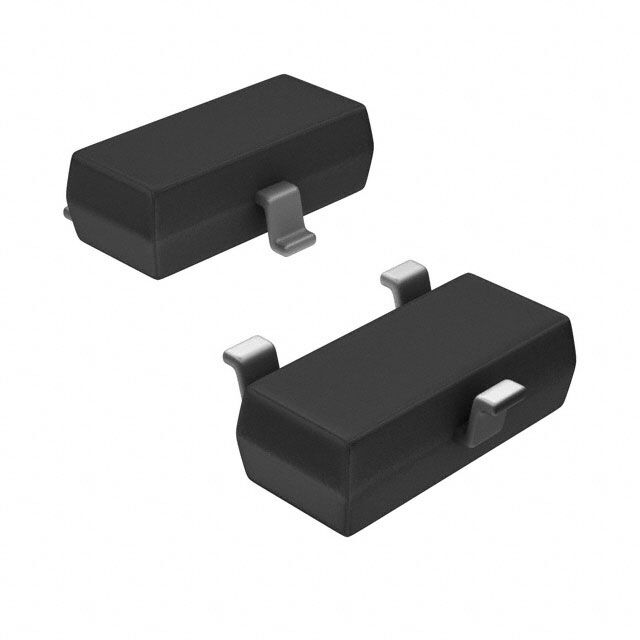

Alpha & Omega Semiconductor Inc. AO7410	350 mW	12 nC	2.5 V 10 V	SC-70-3	1.5 V	Surface Mount	30 V	285 pF	MOSFET (Metal Oxide)	N-Channel	150 °C	-55 °C	12 V	SC-70 SOT-323	1.7 A
Alpha & Omega Semiconductor Inc. AO7413	350 mW	4.5 nC	2.5 V 10 V	SC-70-3	1.2 V	Surface Mount	20 V	400 pF	MOSFET (Metal Oxide)	P-Channel	150 °C	-55 °C	12 V	SC-70 SOT-323	1.4 A	113 mOhm
Alpha & Omega Semiconductor Inc. AO7414	350 mW			SC-70-3	1 V	Surface Mount	20 V		MOSFET (Metal Oxide)	N-Channel	150 °C	-55 °C		SC-70 SOT-323	2 A	62 mOhm	8 V	3.8 nC	1.8 V	4.5 V	320 pF
