767039 Series

Catalog

CONN PLUG 114POS EDGE MNT GOLD

Part	Height Above Board [z]	Height Above Board [z]	Mounting Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Number of Positions	Pitch	Pitch	Connector Type	Features
TE Connectivity AMP Connectors 767039-3	6.38 mm	0.251 in	Board Edge Straddle Mount	Gold	30 Áin	0.76 Ám	2	114	0.64 mm	0.025 in	Plug Outer Shroud Contacts	Board Guide Ground Bus (Plane)
TE Connectivity AMP Connectors 767039-7	6.38 mm	0.251 in	Board Edge Straddle Mount	Gold	30 Áin	0.76 Ám	2	266	0.64 mm	0.025 in	Plug Outer Shroud Contacts	Board Guide Ground Bus (Plane)
TE Connectivity AMP Connectors 767039-4	6.38 mm	0.251 in	Board Edge Straddle Mount	Gold	30 Áin	0.76 Ám	2	152	0.64 mm	0.025 in	Plug Outer Shroud Contacts	Board Guide Ground Bus (Plane)

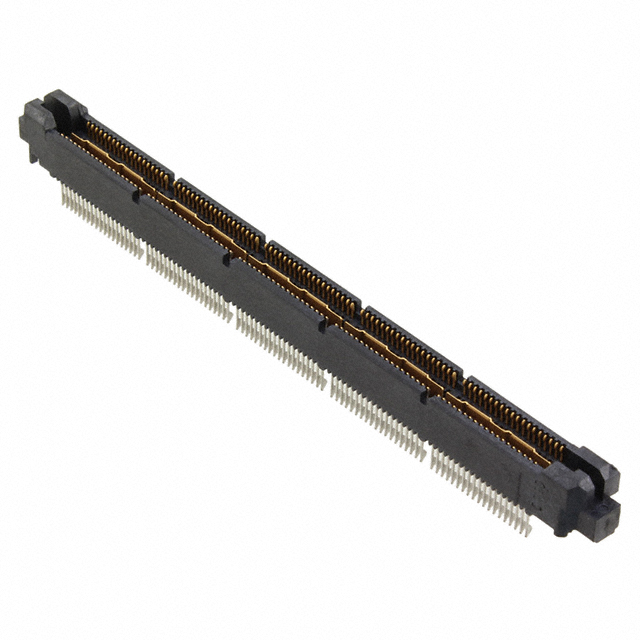

TE Connectivity AMP Connectors 767039-5	6.38 mm	0.251 in	Board Edge Straddle Mount	Gold	30 Áin	0.76 Ám	2	190	0.64 mm	0.025 in	Plug Outer Shroud Contacts	Board Guide Ground Bus (Plane)
