833-042 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 42POS 0.156
| Part | Termination Rows | Material - Insulation | Contact Material | Card Type | Mounting Type | Contact Type | Pitch | Pitch | Termination | Number of Rows | Card Thickness [Max] | Card Thickness [Min] | Number of Positions/Bay/Row | Color | Read Out | Gender | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Termination Rows [custom] | Number of Rows [custom] | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

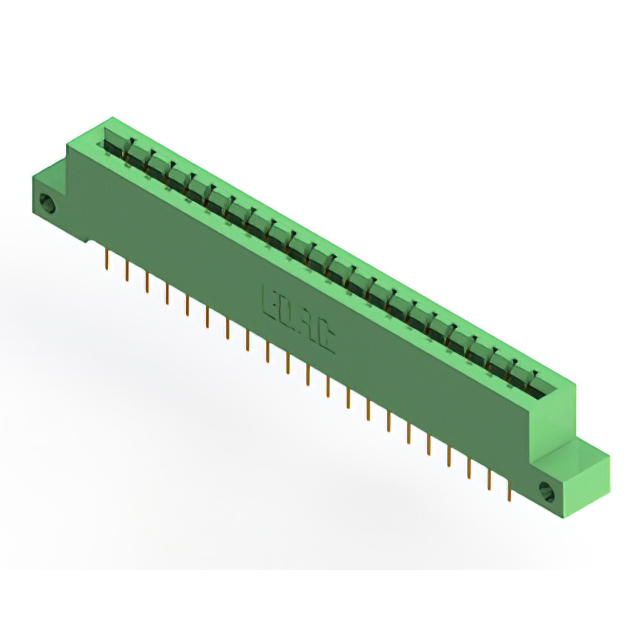

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Copper Alloy | Non Specified - Single Edge | Right Angle Through Hole | Cantilever | 3.96 mm | 0.156 in | Solder | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 42 | Green | Single | Female | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 42 | 125 °C | -40 C | Gold | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Copper Alloy | Non Specified - Single Edge | Through Hole | Cantilever | 3.96 mm | 0.156 in | Solder | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 42 | Green | Single | Female | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 42 | 125 °C | -40 C | Gold | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | Non Specified - Dual Edge | Right Angle Through Hole | Cantilever | 3.96 mm | 0.156 in | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Dual | Female | 0.128 " | 3.25 mm | 42 | 125 °C | -40 C | Gold | 0.25 Ám | 10 Áin | 2 | 2 | 21 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | Non Specified - Dual Edge | Through Hole | Cantilever | 3.96 mm | 0.156 in | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Dual | Female | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 42 | 125 °C | -40 C | Gold | 0.25 Ám | 10 Áin | 2 | 2 | 21 | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Copper Alloy | Non Specified - Single Edge | Through Hole | Cantilever | 3.96 mm | 0.156 in | Wire Wrap | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 42 | Green | Single | Female | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 42 | 125 °C | -40 C | Gold | 0.25 Ám | 10 Áin | |||

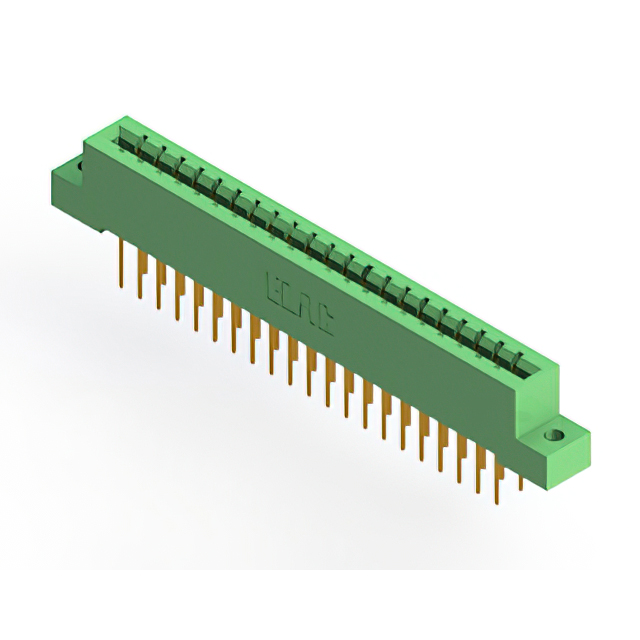

 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | Non Specified - Dual Edge | Through Hole | Cantilever | 3.96 mm | 0.156 in | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Dual | Female | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 42 | 125 °C | -40 C | Gold | 0.25 Ám | 10 Áin | 2 | 2 | 21 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | Non Specified - Dual Edge | Through Hole | Cantilever | 3.96 mm | 0.156 in | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Dual | Female | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 42 | 125 °C | -40 C | Gold | 0.25 Ám | 10 Áin | 2 | 2 | 21 | |||

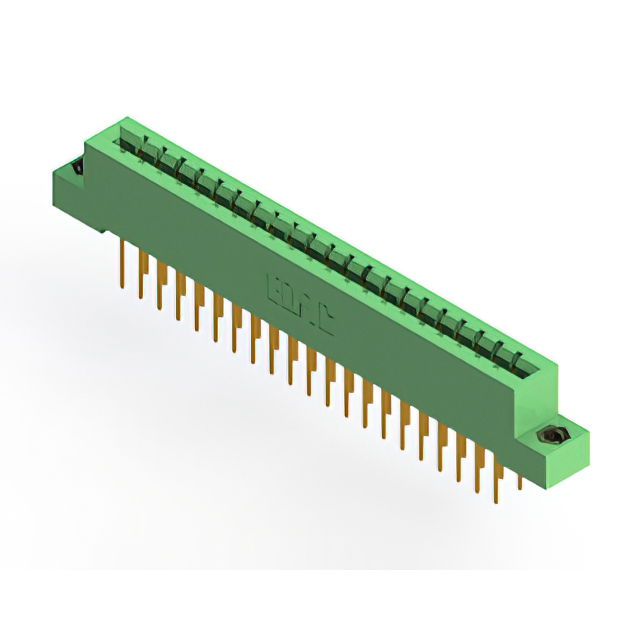

 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | Non Specified - Dual Edge | Through Hole | Cantilever | 3.96 mm | 0.156 in | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Dual | Female | Flush Mount M3 Threaded Insert Top Opening | 42 | 125 °C | -40 C | Gold | 0.25 Ám | 10 Áin | 2 | 2 | 21 | |||||

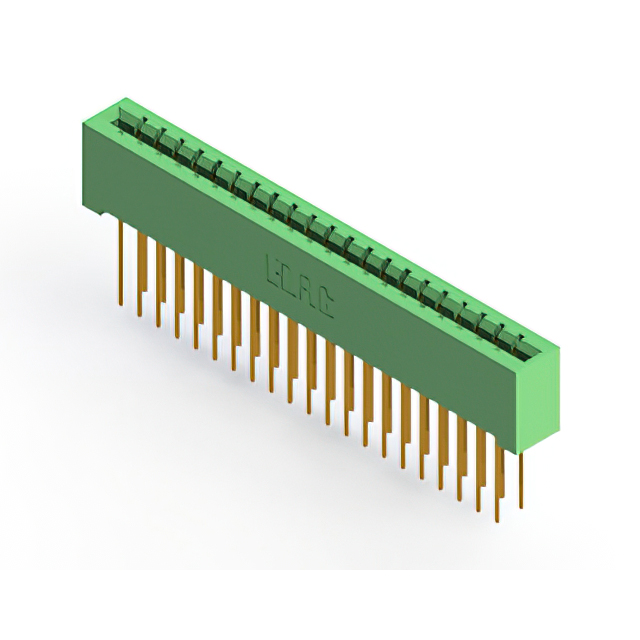

 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | Non Specified - Dual Edge | Through Hole | Cantilever | 3.96 mm | 0.156 in | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Dual | Female | 42 | 125 °C | -40 C | Gold | 0.25 Ám | 10 Áin | 2 | 2 | 21 | ||||||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Copper Alloy | Non Specified - Single Edge | Through Hole | Cantilever | 3.96 mm | 0.156 in | Wire Wrap | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 42 | Green | Single | Female | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 42 | 125 °C | -40 C | Gold | 0.25 Ám | 10 Áin |
