PS2841-4B Series

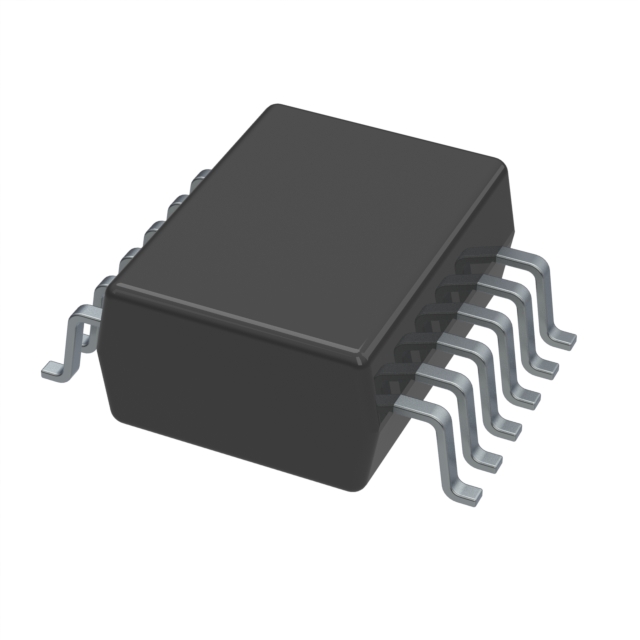

Ultra-small, 4-Channel, 12-pin, Ultra Shrink SOP Photocoupler

Manufacturer: Renesas Electronics Corporation

Catalog

Ultra-small, 4-Channel, 12-pin, Ultra Shrink SOP Photocoupler

Part	Number of Channels	Output Type	Current Transfer Ratio (Min) [Min]	Voltage - Forward (Vf) (Typ)	Vce Saturation (Max) [Max]	Current - Output / Channel [custom]	Package / Case	Package / Case	Package / Case	Voltage - Output (Max) [Max]	Voltage - Isolation	Current - DC Forward (If) (Max) [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current Transfer Ratio (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Mounting Type	Supplier Device Package
Renesas Electronics Corporation PS2841-4B-AX	4	1.81 mOhm	100 %	1.1 V	300 mV	20 mA	0.173 in	12-BSOP	4.4 mm	70 V	1500 VAC	20 mA	110 µs	20 µs	400 %	100 °C	-40 °C	DC	Surface Mount	12-SSOP

Catalog

Ultra-small, 4-Channel, 12-pin, Ultra Shrink SOP Photocoupler

Description

The PS2841-4A and PS2841-4B are optically coupled isolators containing GaAs light emitting diodes and NPN silicon phototransistors. These products include four channels in a single package for high-density mounting applications. The PS2841-4A and PS2841-4B are the world's smallest class of photocouplers and realize about 50%reduction in mounting area compared with the PS280x and PS281x Series.
