PRPC029 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 58POS 2.54MM

Part	Contact Finish Thickness - Post	Insulation Color	Contact Finish - Mating	Fastening Type	Connector Type	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Contact Shape	Number of Positions Loaded	Contact Finish Thickness - Mating	Shrouding	Number of Positions	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Contact Material	Insulation Material	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Style	Contact Type	Contact Finish - Post	Number of Rows [custom]	Termination	Mounting Type	Number of Rows	Overall Contact Length [x]	Overall Contact Length [x]	Overall Contact Length	Overall Contact Length	Overall Contact Length

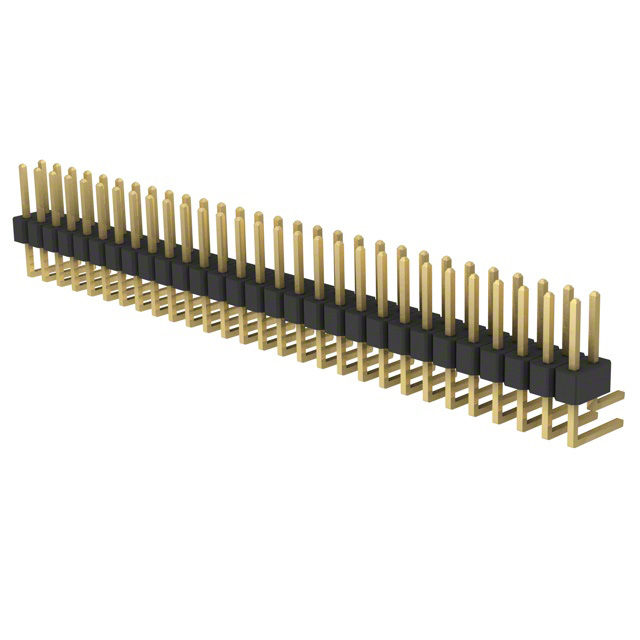

Sullins Connector Solutions PRPC029DBAN-M71RC	Flash	Black	Gold	Push-Pull	Header Breakaway	0.23 in	5.84 mm	0.197 "	5 mm	Square	All	Flash	Unshrouded	58	3.05 mm	0.12 in	0.1 in	2.54 mm	3 A	Brass	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	UL94 V-0	-40 C	105 ░C	Board to Board Cable	Male Pin	Gold	2	Solder	Right Angle Through Hole

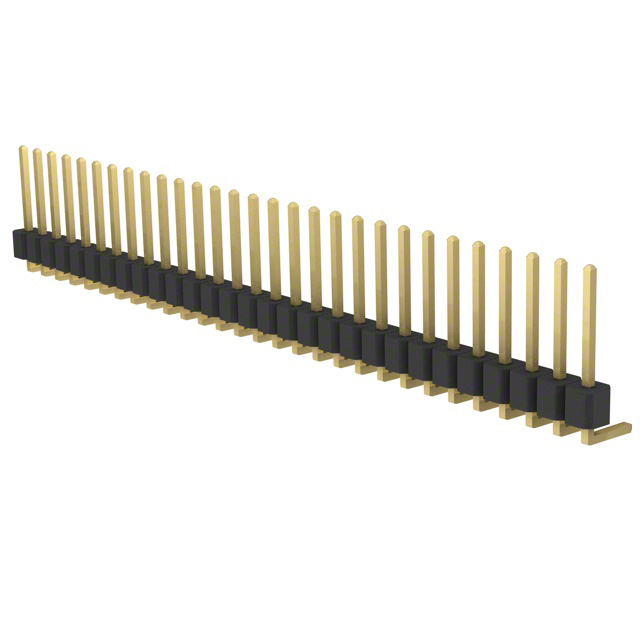

Sullins Connector Solutions PRPC029SGAN-M71RC	Flash	Black	Gold	Push-Pull	Header Breakaway	0.318 in	8.08 mm	0.098 "	2.5 mm	Square	All	Flash	Unshrouded	29	3.05 mm	0.12 in			3 A	Brass	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	UL94 V-0	-40 C	105 ░C	Board to Board Cable	Male Pin	Gold		Solder	Right Angle Through Hole	1

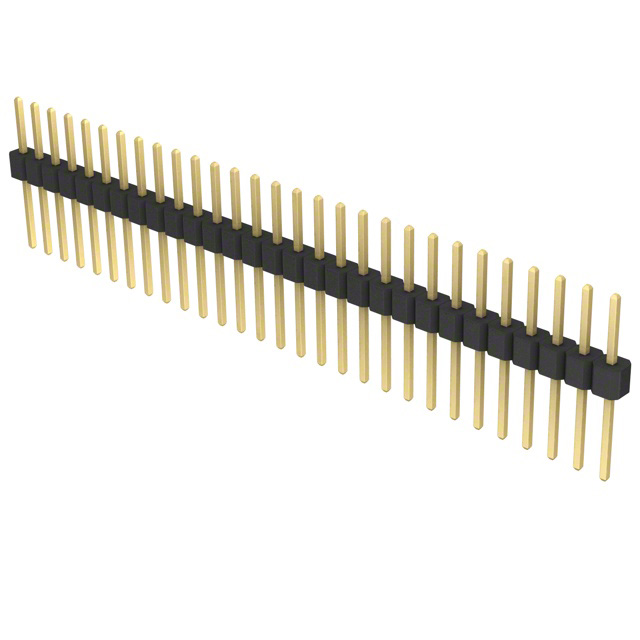

Sullins Connector Solutions PRPC029SACN-RC	Flash	Black	Gold	Push-Pull	Header Breakaway	0.23 in	5.84 mm	0.098 "	2.5 mm	Square	All	Flash	Unshrouded	29	8.13 mm	0.32 in			3 A	Brass	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	UL94 V-0	-40 C	105 ░C	Board to Board Cable	Male Pin	Gold		Solder	Through Hole	1	0.648 in	16.47 mm
Sullins Connector Solutions PRPC029SFAN-RC	Flash	Black	Gold	Push-Pull	Header Breakaway	0.318 in	8.08 mm	0.098 "	2.5 mm	Square	All	Flash	Unshrouded	29	3.05 mm	0.12 in			3 A	Brass	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	UL94 V-0	-40 C	105 ░C	Board to Board Cable	Male Pin	Gold		Solder	Through Hole	1	0.537 in	13.63 mm

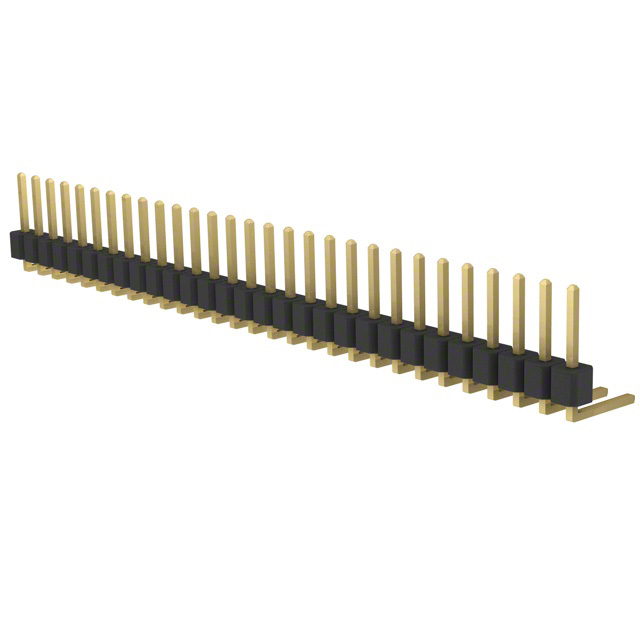

Sullins Connector Solutions PRPC029SBBN-M71RC	Flash	Black	Gold	Push-Pull	Header Breakaway	0.23 in	5.84 mm	0.098 "	2.5 mm	Square	All	Flash	Unshrouded	29	5.58 mm	0.22 in			3 A	Brass	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	UL94 V-0	-40 C	105 ░C	Board to Board Cable	Male Pin	Gold		Solder	Right Angle Through Hole	1
Sullins Connector Solutions PRPC029DAAN-RC	Flash	Black	Gold	Push-Pull	Header Breakaway	0.23 in	5.84 mm	0.098 "	2.5 mm	Square	All	Flash	Unshrouded	58	3.05 mm	0.12 in	0.1 in	2.54 mm	3 A	Brass	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	UL94 V-0	-40 C	105 ░C	Board to Board Cable	Male Pin	Gold	2	Solder	Through Hole				0.448 in	11.39 mm

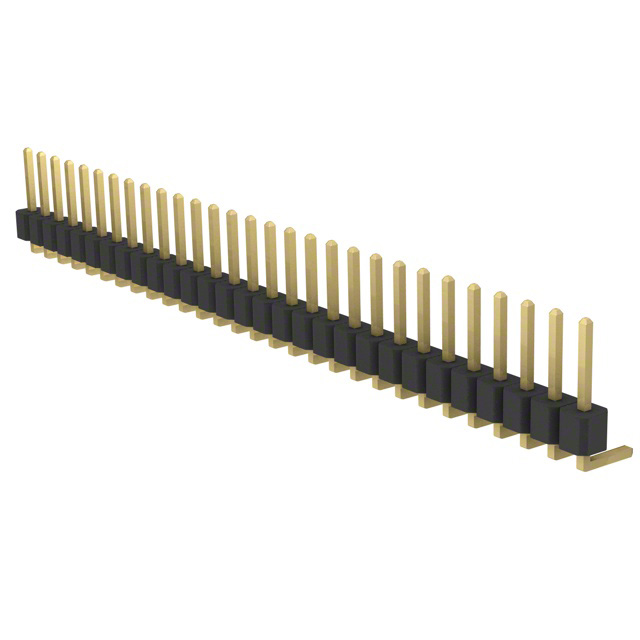

Sullins Connector Solutions PRPC029SBAN-M71RC	Flash	Black	Gold	Push-Pull	Header Breakaway	0.23 in	5.84 mm	0.098 "	2.5 mm	Square	All	Flash	Unshrouded	29	3.05 mm	0.12 in			3 A	Brass	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	UL94 V-0	-40 C	105 ░C	Board to Board Cable	Male Pin	Gold		Solder	Right Angle Through Hole	1
Sullins Connector Solutions PRPC029DFBN-RC	Flash	Black	Gold	Push-Pull	Header Breakaway	0.318 in	8.08 mm	0.098 "	2.5 mm	Square	All	Flash	Unshrouded	58	5.58 mm	0.22 in	0.1 in	2.54 mm	3 A	Brass	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	UL94 V-0	-40 C	105 ░C	Board to Board Cable	Male Pin	Gold	2	Solder	Through Hole					0.637 in	16.17 mm

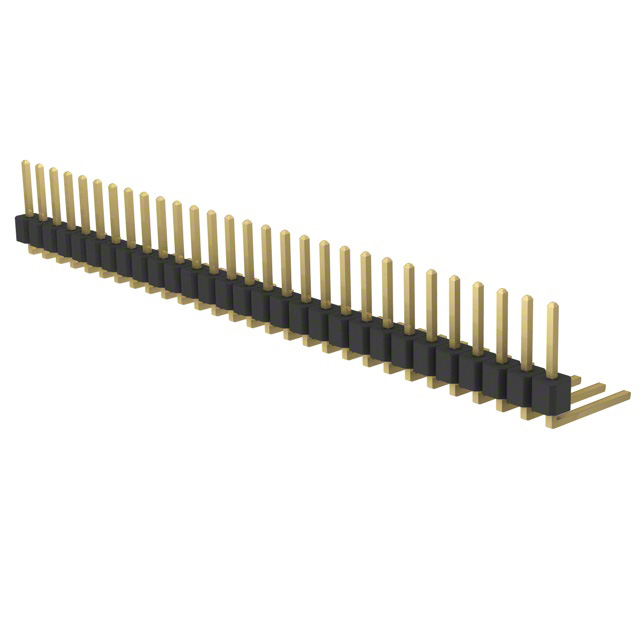

Sullins Connector Solutions PRPC029SBCN-M71RC	Flash	Black	Gold	Push-Pull	Header Breakaway	0.23 in	5.84 mm	0.098 "	2.5 mm	Square	All	Flash	Unshrouded	29	8.13 mm	0.32 in			3 A	Brass	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	UL94 V-0	-40 C	105 ░C	Board to Board Cable	Male Pin	Gold		Solder	Right Angle Through Hole	1
