CT1102VS2 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Switch Travel	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Actuator Length, Right Angle [x]	Contact Rating @ Voltage	Illumination	Switch Function	Actuator Orientation	Circuit	Operating Force	Actuator Type	Outline [y]	Outline [x]	Mounting Type

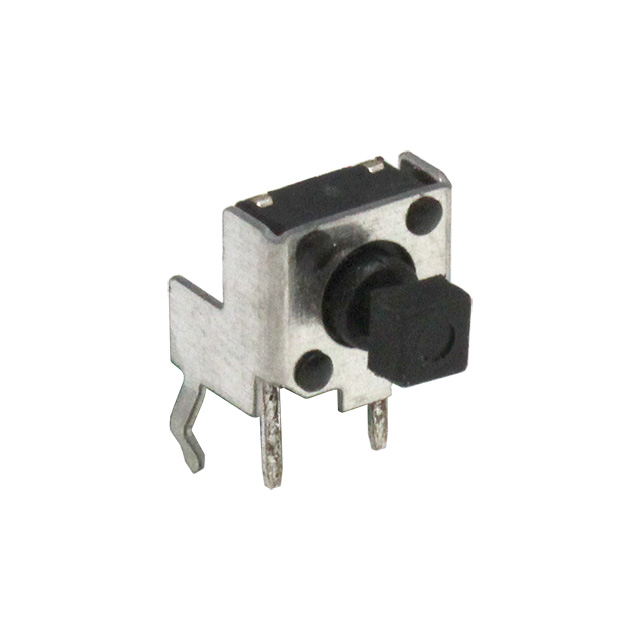

CIT Relay and Switch CT1102VS2.8F100	0.25 mm	Nylon 6/6 Polyamide (PA66)	85 °C	-40 C	PC Pin	7.5 mm	0.05 A 50 VDC	Non-Illuminated	Off-Mom	Side Actuated	SPST-NO	100 gf	Plunger for Cap	6.3 mm	7.5 mm	Right Angle Through Hole
CIT Relay and Switch CT1102VS2.8F160	0.25 mm	Nylon 6/6 Polyamide (PA66)	85 °C	-40 C	PC Pin	7.5 mm	0.05 A 50 VDC	Non-Illuminated	Off-Mom	Side Actuated	SPST-NO	160 gf	Plunger for Cap	6.3 mm	7.5 mm	Right Angle Through Hole

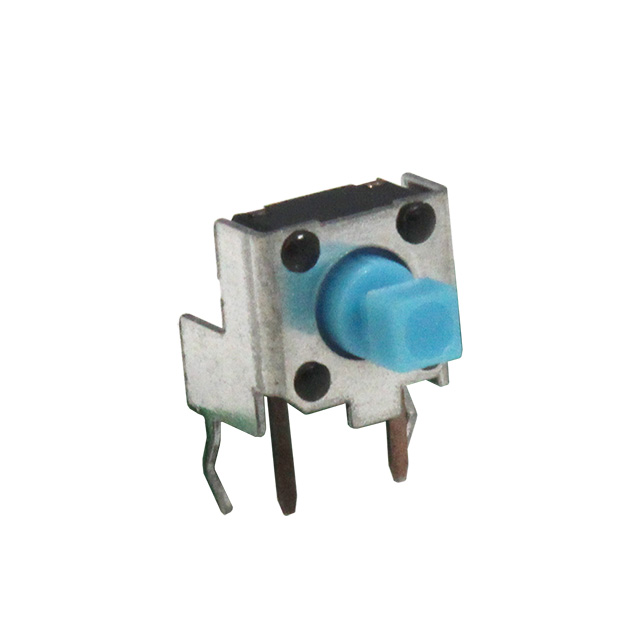

CIT Relay and Switch CT1102VS2.4F260	0.25 mm	Nylon 6/6 Polyamide (PA66)	85 °C	-40 C	PC Pin	7.5 mm	0.05 A 50 VDC	Non-Illuminated	Off-Mom	Side Actuated	SPST-NO	260 gf	Plunger for Cap	6.3 mm	7.5 mm	Right Angle Through Hole
CIT Relay and Switch CT1102VS2.4F160	0.25 mm	Nylon 6/6 Polyamide (PA66)	85 °C	-40 C	PC Pin	7.5 mm	0.05 A 50 VDC	Non-Illuminated	Off-Mom	Side Actuated	SPST-NO	160 gf	Plunger for Cap	6.3 mm	7.5 mm	Right Angle Through Hole
CIT Relay and Switch CT1102VS2.8F260	0.25 mm	Nylon 6/6 Polyamide (PA66)	85 °C	-40 C	PC Pin	7.5 mm	0.05 A 50 VDC	Non-Illuminated	Off-Mom	Side Actuated	SPST-NO	260 gf	Plunger for Cap	6.3 mm	7.5 mm	Right Angle Through Hole
CIT Relay and Switch CT1102VS2.4F100	0.25 mm	Nylon 6/6 Polyamide (PA66)	85 °C	-40 C	PC Pin	7.5 mm	0.05 A 50 VDC	Non-Illuminated	Off-Mom	Side Actuated	SPST-NO	100 gf	Plunger for Cap	6.3 mm	7.5 mm	Right Angle Through Hole
