SDS104 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN D-SUB HD PLUG 62P SLDR CUP
| Part | Wire Gauge | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Form | Contact Material | Dielectric Material | Color | Flange Feature | Mounting Type | Contact Finish Thickness | Contact Type | Connector Type | Number of Positions | Number of Rows [custom] | Contact Finish | Current Rating (Amps) | Connector Style | Features | Shell Size, Connector Layout | Shell Size, Connector Layout | Material Flammability Rating | Shell Size, Connector Layout [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | 22 AWG | 250 V | -55 C | 105 ░C | Stamped | Brass | Polybutylene Terephthalate (PBT) Glass Filled | Black | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | Flash | Signal | Plug Male Pins | 62 | 3 | Gold | 3 A | D-Sub High Density | Grounding Indents | C DC | 4 | UL94 V-0 | |
Sullins Connector Solutions | 22 AWG | 250 V | -55 C | 105 ░C | Stamped | Brass | Polybutylene Terephthalate (PBT) Glass Filled | Black | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | Flash | Signal | Receptacle Female Sockets | 26 | 3 | Gold | 3 A | D-Sub High Density | DA A | UL94 V-0 | 2 | ||

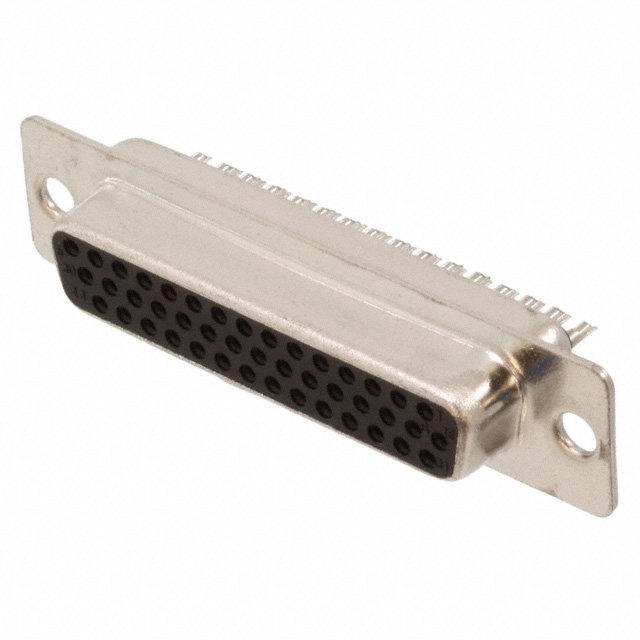

 Sullins Connector Solutions | 22 AWG | 250 V | -55 C | 105 ░C | Stamped | Brass | Polybutylene Terephthalate (PBT) Glass Filled | Black | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | Flash | Signal | Receptacle Female Sockets | 44 | 3 | Gold | 3 A | D-Sub High Density | 3 | UL94 V-0 | |||
 Sullins Connector Solutions | 22 AWG | 250 V | -55 C | 105 ░C | Stamped | Brass | Polybutylene Terephthalate (PBT) Glass Filled | Black | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | Flash | Signal | Plug Male Pins | 44 | 3 | Gold | 3 A | D-Sub High Density | Grounding Indents | 3 | UL94 V-0 | ||
Sullins Connector Solutions | 22 AWG | 250 V | -55 C | 105 ░C | Stamped | Brass | Polybutylene Terephthalate (PBT) Glass Filled | Black | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | Flash | Signal | Receptacle Female Sockets | 62 | 3 | Gold | 3 A | D-Sub High Density | C DC | 4 | UL94 V-0 |
