NB7VPQ904M Series

1.8V USB Type-C™ DisplayPort™ ALT Mode 10Gbps Linear Redriver

Catalog

1.8V USB Type-C™ DisplayPort™ ALT Mode 10Gbps Linear Redriver

Part	Mounting Type	Type	Input	Data Rate (Max)	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Channels	Delay Time	Supplier Device Package	Output	Applications	Package / Case	Signal Conditioning

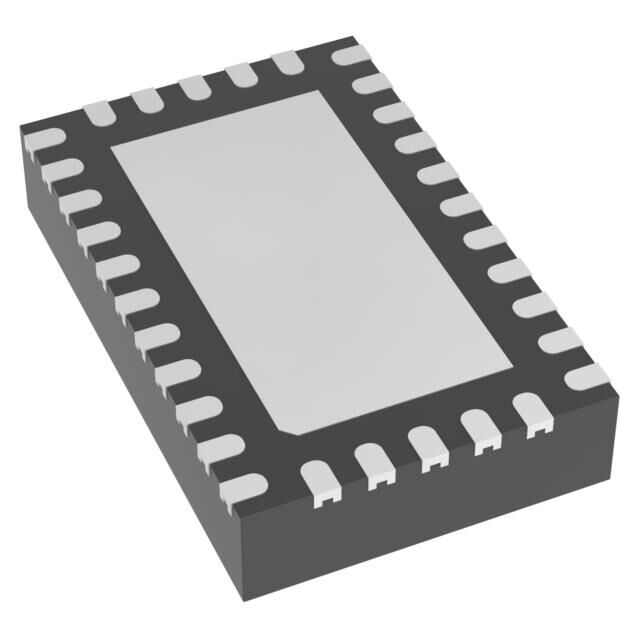

ON Semiconductor NB7VPQ904MMUTWG	Surface Mount	Buffer ReDriver	CML	10 Gbps	1.89 V	1.71 V	4	110 ps	32-X2QFN (2.85x4.5)	CML	USB Type C	32-XFQFN Exposed Pad	Input Equalization

Catalog

1.8V USB Type-C™ DisplayPort™ ALT Mode 10Gbps Linear Redriver

Key Features

• 1.8 V +/- 5% Power Supply

• 4 channel linear redriver supporting data rates up to 10Gbps

• Supports USB Type-C USB3.1 Gen 1/ Gen 2 and DP1.4 as an Alternate Mode with device operation modes

• Supports SOC's that have integrated USB3.1 & DP1.4 MUX over USB Type-C

• Can be utilized in USB Type-C cables to reduce cable losses

• Integrated switch for USB Type-C SBU Signals used for DP AUX Channel

• Chip Enable Pin for Deep Power-Saving Mode

• Hot-Plug Capable

• ESD Protection ± 4kV HBM

Description

The NB7VPQ904M is a 1.8 V USB Type−C™ DisplayPort™ Alternate Mode Linear redriver fully supporting DisplayPort 1.4 (8.1 Gbps) and USB 3.1 Gen 1/Gen 2 (5/10 Gbps) protocols. Signal integrity degrades from PCB traces, transmission cables, and inter−symbol interference (ISI). The NB7VPQ904M compensates for these losses by engaging varying levels of user selectable flat gain & equalization to create the best eye opening for the outgoing data signals.
