MX34020N Series
Manufacturer: JAE Electronics
Beta
⌘K

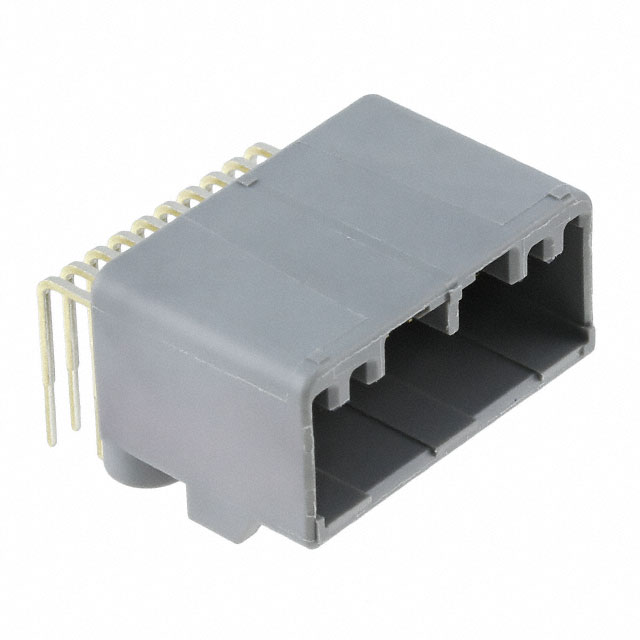

CONN HEADER R/A 20POS 2.2MM
| Part | Applications | Contact Type | Row Spacing - Mating | Row Spacing - Mating | Contact Material | Mounting Type | Number of Positions Loaded | Shrouding | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating | Number of Rows [custom] | Current Rating (Amps) | Contact Length - Mating | Contact Length - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Height | Insulation Height | Connector Type | Insulation Material | Termination | Features | Contact Finish - Post | Insulation Color | Number of Positions | Style | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Automotive | Male Pin | 0.118 in | 3 mm | Brass | Right Angle Through Hole | All | Shrouded - 4 Wall | Locking Ramp | 85 °C | -40 C | 0.087 in | 2.2 mm | 2 | 3 A | 0.303 in | 7.7 mm | 0.126 " | 3.2 mm | 0.626 in | 15.9 mm | Header | Glass Filled Syndiotactic Polystyrene (SPS) | Solder | Board Lock | Tin | Gray | 20 | Board to Cable/Wire | Square |
