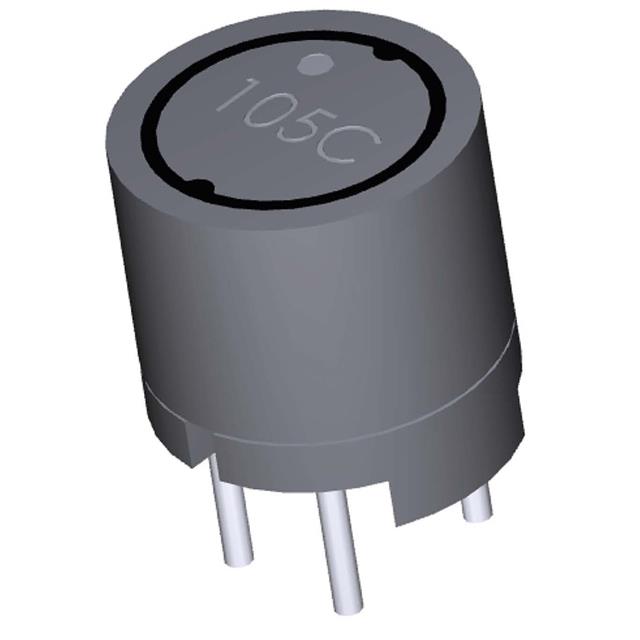

12RS Series

Catalog

INDUCTOR, 33UH, 20%, 2.1A, RADIAL ROHS COMPLIANT: YES

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Inductance	Shielding	Inductance Frequency - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Type	Tolerance	Current Rating (Amps)	DC Resistance (DCR)
Murata Electronics 12RS333C	Through Hole	85 °C	-40 C	10.5 mm	0.413 in	Radial Vertical Cylinder 4 Leads	33 µH	Shielded	10 kHz	0.335 "	8.5 mm	57 mOhm	Wirewound	15 %	2.7 A
Murata Electronics 12RS474C	Through Hole	85 °C	-40 C	10.5 mm	0.413 in	Radial Vertical Cylinder 4 Leads	470 µH	Shielded	10 kHz	0.335 "	8.5 mm	980 mOhm	Wirewound	15 %	0.72 A
Murata Electronics 12RS684C	Through Hole	85 °C	-40 C	10.5 mm	0.413 in	Radial Vertical Cylinder 4 Leads	680 µH	Shielded	10 kHz	0.335 "	8.5 mm	1.2 Ohm	Wirewound	15 %	0.55 A
Murata Electronics 12RS224C	Through Hole	85 °C	-40 C	10.5 mm	0.413 in	Radial Vertical Cylinder 4 Leads	220 µH	Shielded	10 kHz	0.335 "	8.5 mm		Wirewound	15 %	1.1 A	290 mOhm
Murata Electronics 12RS105C	Through Hole	85 °C	-40 C	10.5 mm	0.413 in	Radial Vertical Cylinder 4 Leads	1 mH	Shielded	10 kHz	0.335 "	8.5 mm	1.5 Ohm	Wirewound	15 %	0.44 A
Murata Electronics 12RS223C	Through Hole	85 °C	-40 C	10.5 mm	0.413 in	Radial Vertical Cylinder 4 Leads	22 µH	Shielded	10 kHz	0.335 "	8.5 mm	42 mOhm	Wirewound	20 %	3.3 A
Murata Electronics 12RS683C	Through Hole	85 °C	-40 C	10.5 mm	0.413 in	Radial Vertical Cylinder 4 Leads	68 µH	Shielded	10 kHz	0.335 "	8.5 mm		Wirewound	15 %	1.8 A	150 mOhm
Murata Electronics 12RS153C	Through Hole	85 °C	-40 C	10.5 mm	0.413 in	Radial Vertical Cylinder 4 Leads	15 µH	Shielded	10 kHz	0.335 "	8.5 mm	36 mOhm	Wirewound	20 %	4 A
Murata Electronics 12RS154C	Through Hole	85 °C	-40 C	10.5 mm	0.413 in	Radial Vertical Cylinder 4 Leads	150 µH	Shielded	10 kHz	0.335 "	8.5 mm	230 mOhm	Wirewound	15 %	1.25 A
Murata Electronics 12RS473C	Through Hole	85 °C	-40 C	10.5 mm	0.413 in	Radial Vertical Cylinder 4 Leads	47 µH	Shielded	10 kHz	0.335 "	8.5 mm		Wirewound	15 %	2.2 A	100 mOhm
