2FA54 Series

Catalog

SWITCH TOGGLE SPST 15A 125V

Part	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Illumination	Actuator Length [x]	Switch Function	Current Rating (Amps)	Mounting Type	Actuator Type	Circuit	Bushing Thread	Termination Style	Panel Cutout Dimensions [diameter]
Carling Technologies 2FA54-78/2 HEX	50000 Cycles	-17.8 °C	65.6 °C	125 V	Non-Illuminated	17.45 mm	On-Off	15 A	Panel Mount	Standard Round	SPST	15/32-32	Screw Terminal	12.7 mm
Carling Technologies 2FA54-63	50000 Cycles	-17.8 °C	65.6 °C	125 V	Non-Illuminated	14.28 mm	On-Off	15 A	Panel Mount	Standard Round	SPST	15/32-32	Screw Terminal	12.7 mm

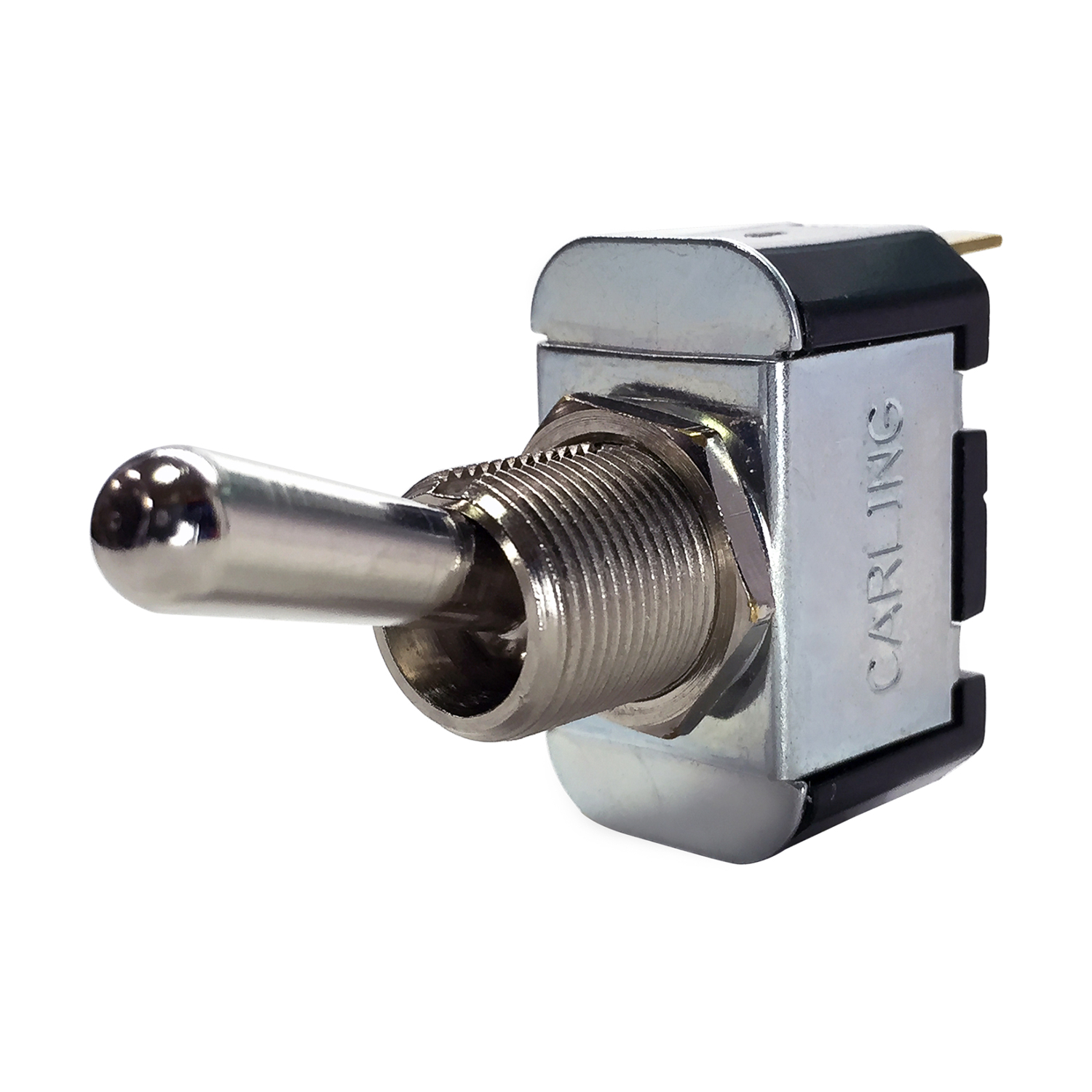

Carling Technologies 2FA54-73/END TERM	50000 Cycles	-17.8 °C	65.6 °C	125 V	Non-Illuminated	17.45 mm	On-Off	15 A	Panel Mount	Standard Round	SPST	15/32-32	Screw Terminal	12.7 mm
Carling Technologies 2FA54-78	50000 Cycles	-17.8 °C	65.6 °C	125 V	Non-Illuminated	17.45 mm	On-Off	15 A	Panel Mount	Standard Round	SPST	15/32-32	Screw Terminal	12.7 mm
Carling Technologies 2FA54-52	50000 Cycles	-17.8 °C	65.6 °C	125 V	Non-Illuminated	10.31 mm	On-Off	15 A	Panel Mount	Standard Round	SPST	15/32-32	Screw Terminal	12.7 mm
Carling Technologies 2FA54-57	50000 Cycles	-17.8 °C	65.6 °C	125 V	Non-Illuminated	10.31 mm	On-Off	15 A	Panel Mount	Standard Round	SPST	15/32-32	Screw Terminal	12.7 mm
Carling Technologies 2FA54-E8	50000 Cycles	-17.8 °C	65.6 °C	125 V	Non-Illuminated	50.8 mm	On-Off	15 A	Panel Mount	Standard Round	SPST	15/32-32	Screw Terminal	12.7 mm
Carling Technologies 2FA54-A2	50000 Cycles	-17.8 °C	65.6 °C	125 V	Non-Illuminated	1 in	On-Off	15 A	Panel Mount	Standard Round	SPST	15/32-32	Screw Terminal	12.7 mm
