AB15AP Series
Manufacturer: NKK Switches
Beta
⌘K

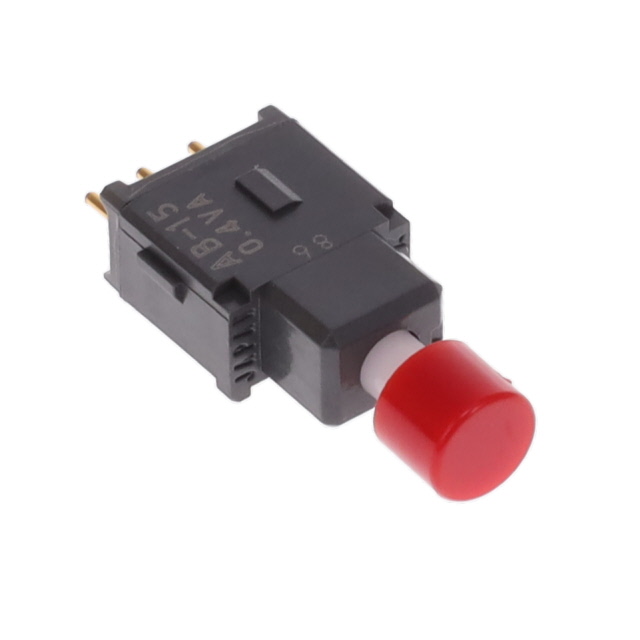

SWITCH PUSH BUTTON ON (ON) SPDT ROUND PLUNGER 0.1A 28VAC 28VDC 0.4VA MOMENTARY THRU-HOLE PC PINS
| Part | Mechanical Life | Electrical Life | Color - Actuator/Cap | Actuator Type | Features | Mounting Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Type | Actuator Marking | Switch Function | Circuit | Voltage Rating - AC | Current Rating (Amps) | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 50000 Cycles | 50000 Cycles | Red | Button Round | Sealed - Fully | Through Hole | PC Pin | 85 °C | -30 ░C | Standard | No Marking | On-Mom | SPDT | 28 V | 0.4 VA | 28 V |
 NKK Switches | 50000 Cycles | 50000 Cycles | Black | Button Round | Sealed - Fully | Through Hole | PC Pin | 85 °C | -30 ░C | Standard | No Marking | On-Mom | SPDT | 28 V | 0.4 VA | 28 V |
