Q817 Series
Manufacturer: QT Brightek (QTB)
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

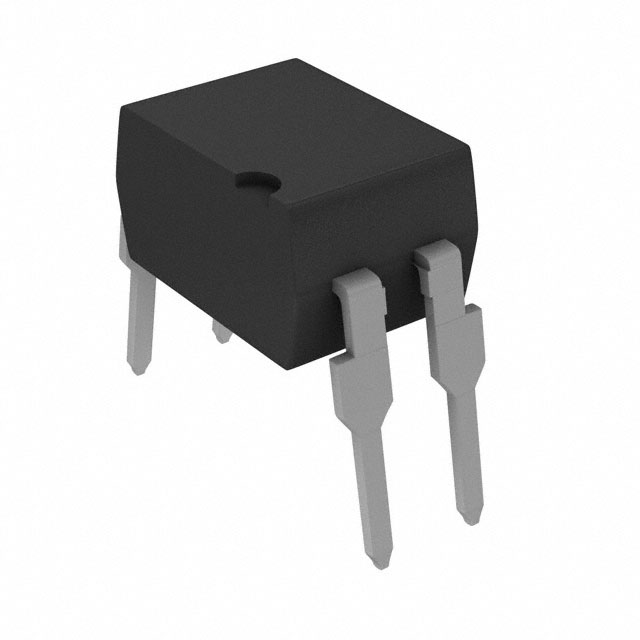

OPTOISOLATOR 5KV 1CH TRANS 4-DIP
| Part | Mounting Type | Current - DC Forward (If) (Max) | Current Transfer Ratio (Min) | Output Type | Rise Time (Typ) | Fall Time (Typ) | Voltage - Isolation | Number of Channels | Package Width | Package Name | Package Length | Current Transfer Ratio (Max) | Current - Output / Channel | Voltage - Output (Max) | Input Type | Vce Saturation (Max) | Voltage - Forward (Vf) (Typ) | Operating Temperature (Max) | Operating Temperature (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 QT Brightek (QTB) | Through Hole | 60 mA | 200 % | Transistor | 6 µs | 8 µs | 5000 Vrms | 1 | 7.62 mm | 4-DIP | 0.3 in | 400 % | 50 mA | 35 VDC | DC | 200 mV | 1.24 V | 110 °C | -55 °C |
