50.663 Series

Catalog

CABLE GLAND 32-42MM M63 POLYAMID

Part	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Operating Temperature [Min]	Operating Temperature [Max]	Color	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Type	Includes	Ingress Protection	Outside Cable Diameter (Max)	Material	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min]

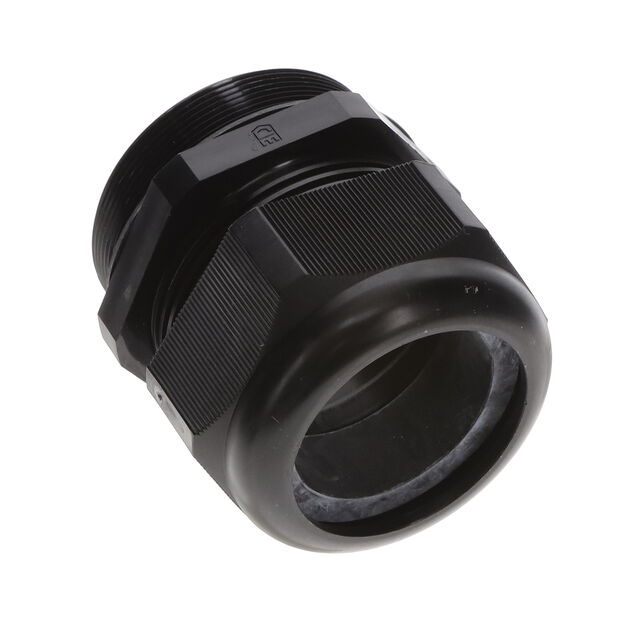

Jacob GmbH 50.663 PA/SWL	M63x1.5	32 mm	1.26 in	0.709 in	18.01 mm	-40 C	100 °C	Black	1.654 in	42 mm	Cable Gland	Sealing Ring	IP68 - Dust Tight Waterproof

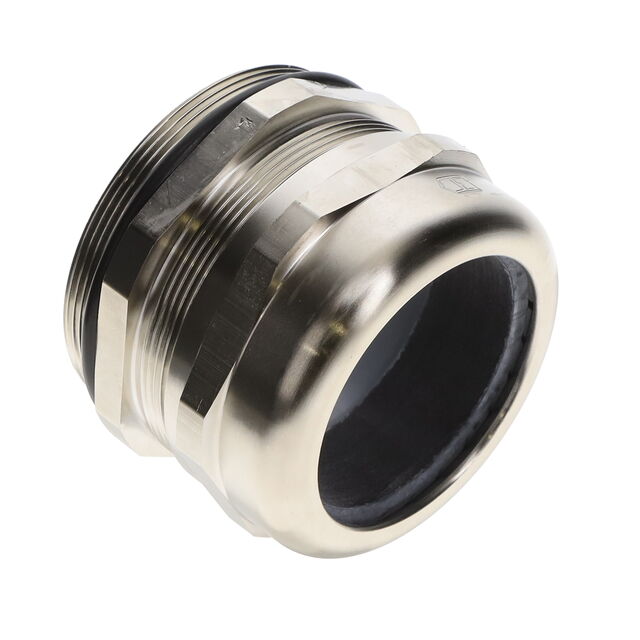

Jacob GmbH 50.663 M1	M63x1.5	38 mm	1.496 "	0.394 in	10 mm	-40 C	100 °C	Silver	1.89 in		Cable Gland	O-Ring Seal	IP68 - Dust Tight Waterproof	48 mm	Brass Nickel Plated

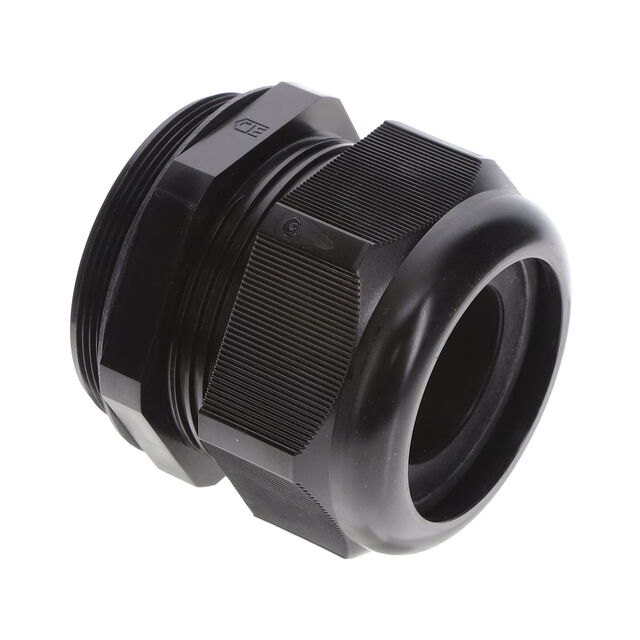

Jacob GmbH 50.663 PA/RSW	M63x1.5			0.472 in	12 mm	-40 C	100 °C	Black	1.89 in		Cable Gland	Sealing Ring	IP68 - Dust Tight Waterproof	48 mm		27 mm	1.063 in

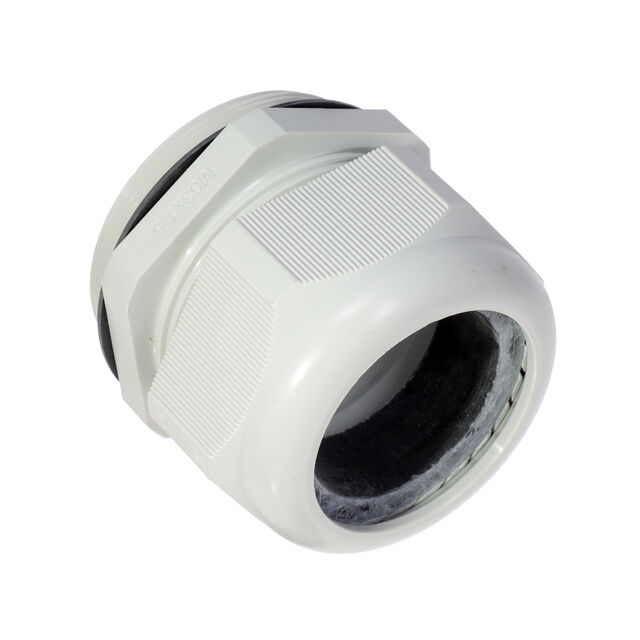

Jacob GmbH 50.663 PA7035	M63x1.5	32 mm	1.26 in	0.472 in	12 mm	-40 C	100 °C	Gray	1.654 in	42 mm	Cable Gland	Sealing Ring	IP68 - Dust Tight Waterproof

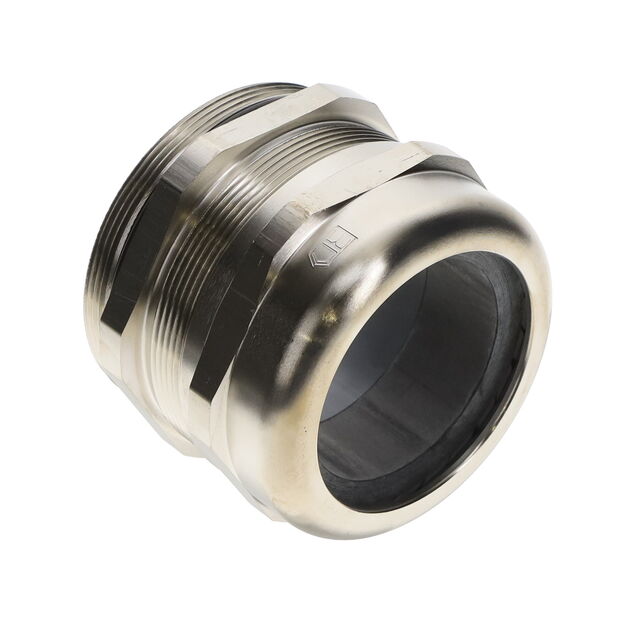

Jacob GmbH 50.663 M	M63x1.5	32 mm	1.26 in	0.394 in	10 mm	-40 C	100 °C	Silver	1.654 in	42 mm	Cable Gland	O-Ring Seal	IP68 - Dust Tight Waterproof		Brass Nickel Plated

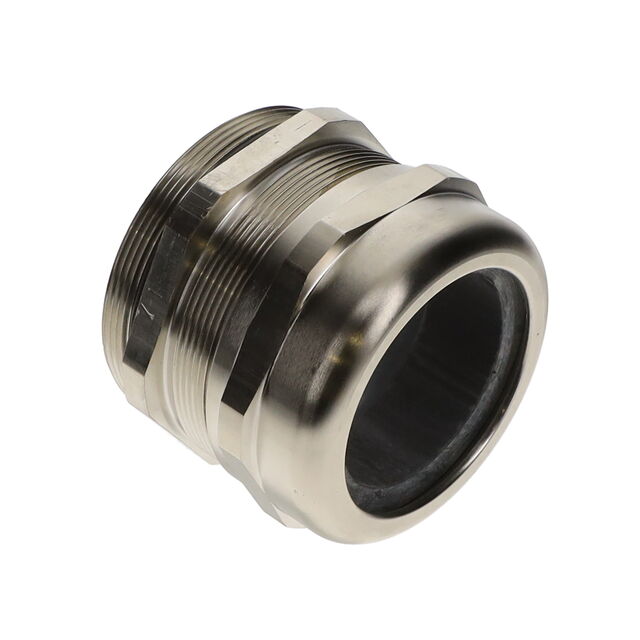

Jacob GmbH 50.663 M/EMV	M63x1.5	32 mm	1.26 in	0.394 in	10 mm	-40 C	100 °C	Silver	1.654 in	42 mm	Cable Gland	O-Ring Seal	IP68 - Dust Tight Waterproof		Brass Nickel Plated

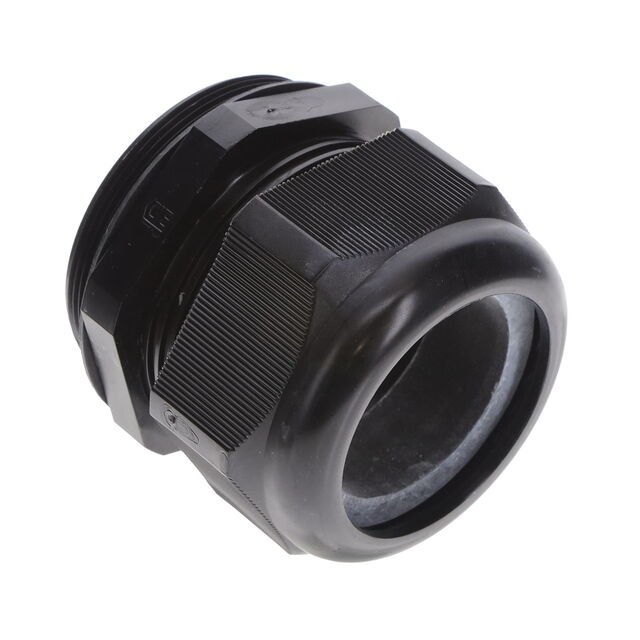

Jacob GmbH 50.663 PA/SW	M63x1.5	32 mm	1.26 in	0.472 in	12 mm	-40 C	100 °C	Black	1.654 in	42 mm	Cable Gland	Sealing Ring	IP68 - Dust Tight Waterproof

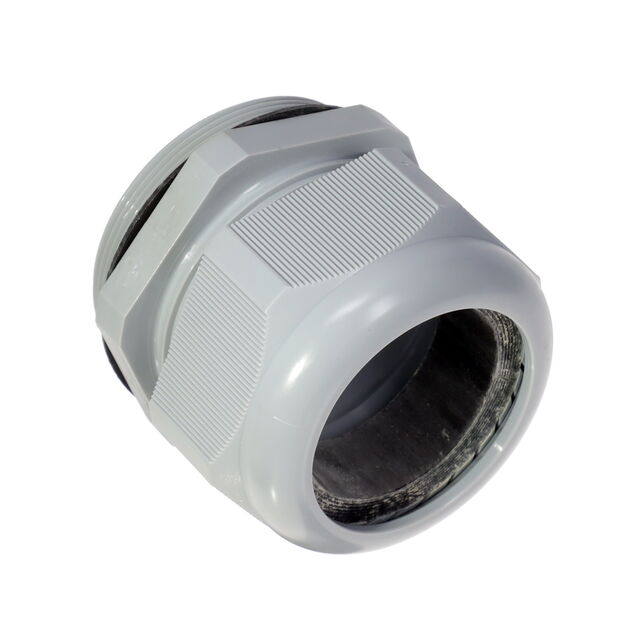

Jacob GmbH 50.663 PA7001	M63x1.5	32 mm	1.26 in	0.472 in	12 mm	-40 C	100 °C	Gray	1.654 in	42 mm	Cable Gland	Sealing Ring	IP68 - Dust Tight Waterproof

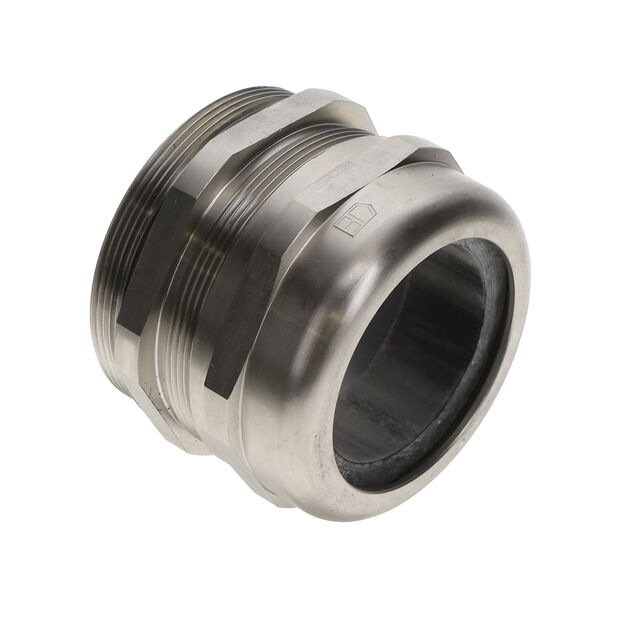

Jacob GmbH 50.663 ES	M63x1.5	32 mm	1.26 in	0.394 in	10 mm	-40 C	100 °C	Silver	1.654 in	42 mm	Cable Gland	O-Ring Seal	IP68 - Dust Tight Waterproof		Stainless Steel

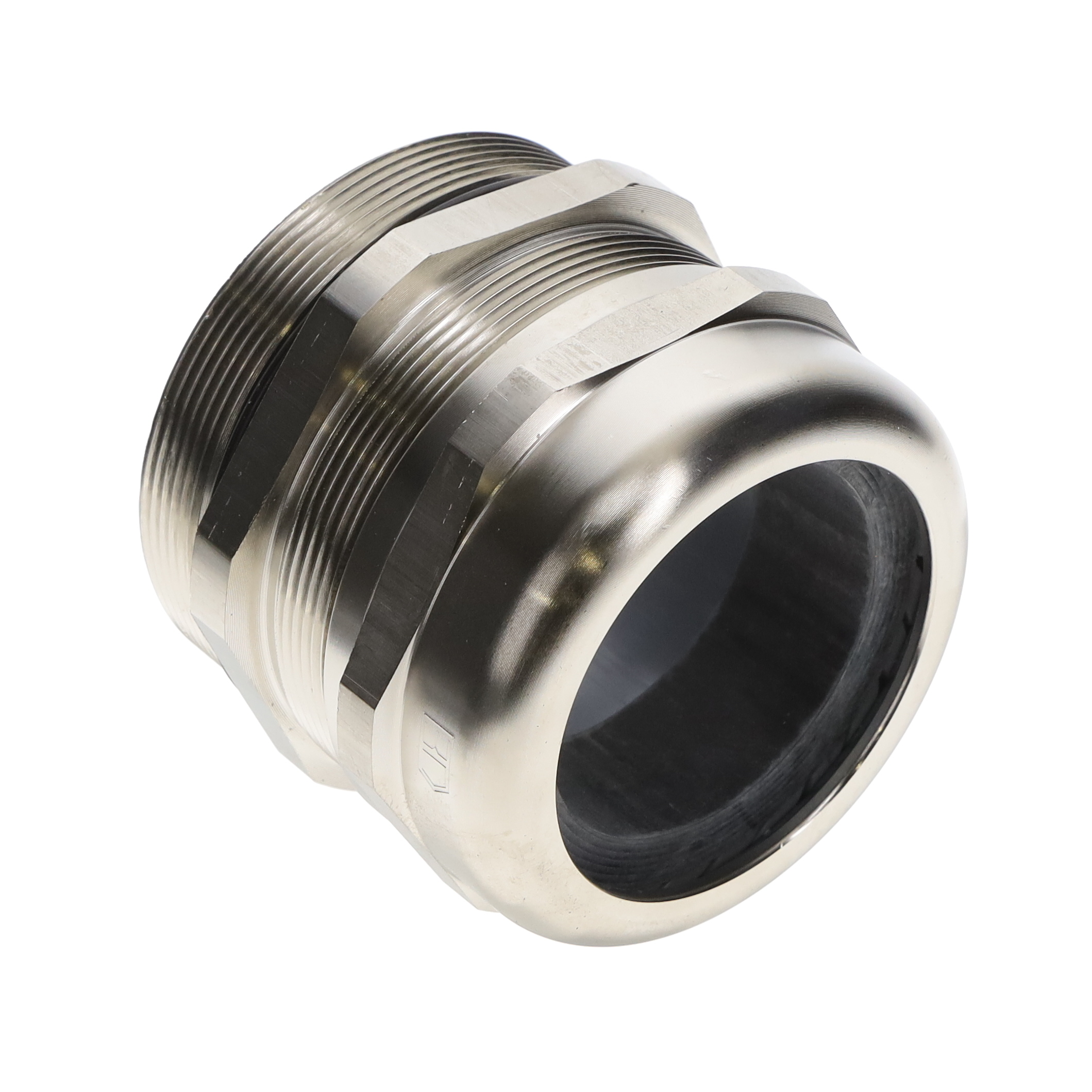

Jacob GmbH 50.663M/EMV/L	M63x1.5	32 mm	1.26 in	0.551 in	14 mm	-40 C	100 °C	Silver	1.654 in	42 mm	Cable Gland	O-Ring Seal	IP68 - Dust Tight Waterproof		Brass Nickel Plated
