Q2-F4X-1 Series

Manufacturer: Qualtek

Catalog

HEATSHRINK 1-1/2" X 4' BLK 1=1PC

Part	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Type	Shrinkage Ratio	Recovered Wall Thickness	Recovered Wall Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Color	Features	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrink Temperature	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Material	Length [x]	Length [x]	Shelf Life	Length	Length	Length

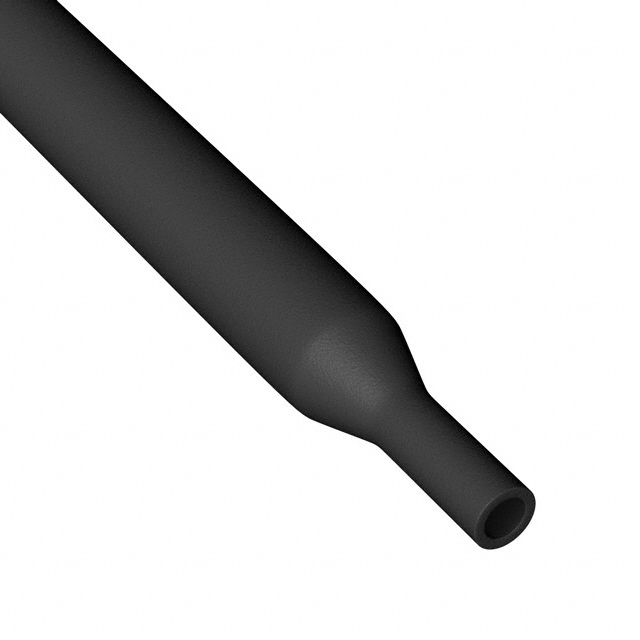

Qualtek Q2-F4X-1 1/2-01-QB48IN-5	9.53 mm	0.375 in	Tubing Flexible	4 to 1	1.7 mm	0.067 in	-55 C	135 °C	Black	Flame Retardant UV Resistant	38.1 mm	1.5 in	70 °C	40 °C	14 °F	-50 °F	40 °C	Polyolefin (PO)	4 ft	1.22 m	60 Months

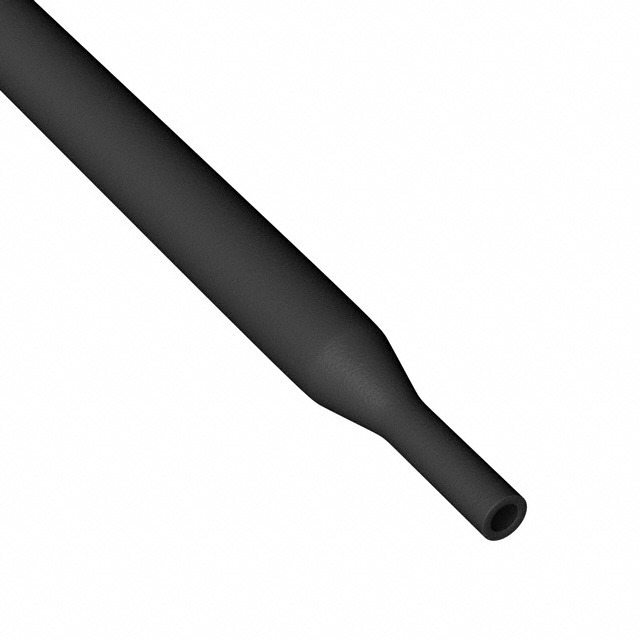

Qualtek Q2-F4X-1-01-QB6IN-8	7.06 mm	0.278 in	Tubing Flexible	4 to 1	1.7 mm	0.067 in	-55 C	135 °C	Black	Flame Retardant UV Resistant	25.4 mm	1 in	70 °C	40 °C	14 °F	-50 °F	40 °C	Polyolefin (PO)			60 Months	152.4 mm	0.5 '	6 "
