A60-112 Series
Manufacturer: EDAC Inc.
Beta
⌘K

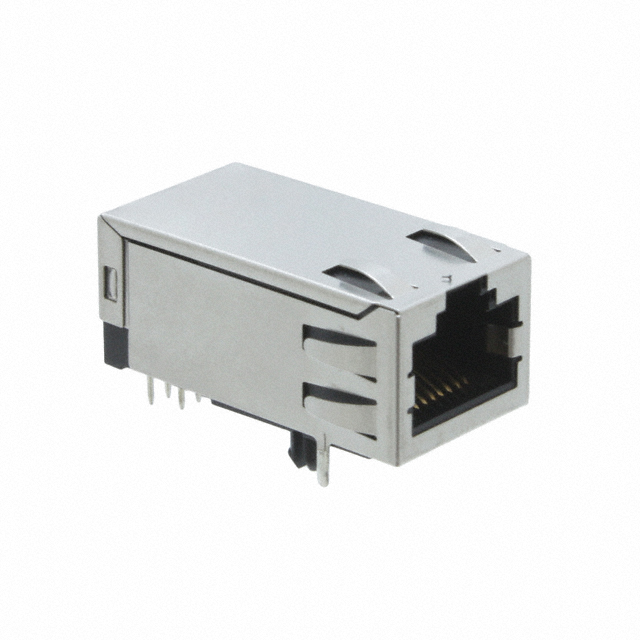

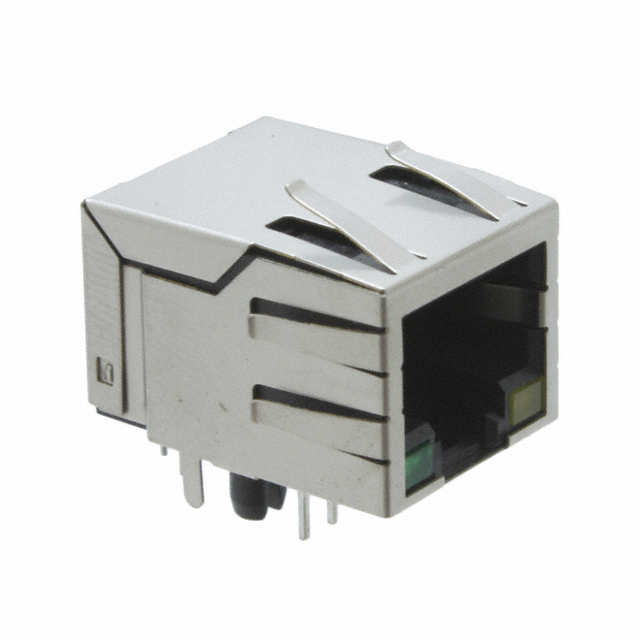

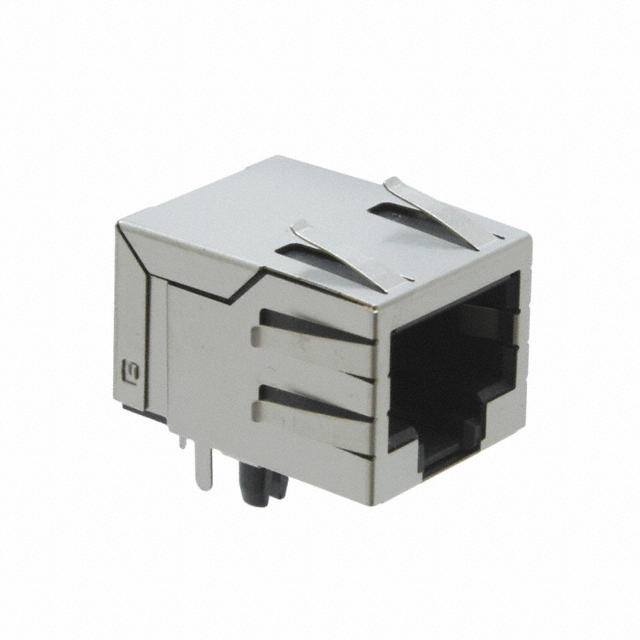

CONN JACK 1PORT 1000 BASE-T PCB
| Part | Housing Material | Shield Material | Contact Finish Thickness | Features | Operating Temperature [Max] | Operating Temperature [Min] | Number of Ports | Orientation | Number of Cores per Jack | LED Color | Termination | Connector Type | Mounting Type | Applications | Shielding | Contact Finish | Tab Direction | Contact Material | Number of Rows | Height Above Board [z] | Height Above Board [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Flash | Board Lock | 70 °C | 0 °C | 1 | 90 ° | 8 | Green - Yellow | Solder | RJ45 | Through Hole | 10/100/1000 Base-T AutoMDIX | EMI Finger Shielded | Gold | Down | Phosphor Bronze | 1 | 0.535 in | 13.59 mm |
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Flash | Board Lock | 70 °C | 0 °C | 1 | 90 ° | 8 | Does Not Contain LED | Solder | RJ45 | Through Hole | 10/100/1000 Base-T AutoMDIX | EMI Finger Shielded | Gold | Down | Phosphor Bronze | 1 | 0.535 in | 13.59 mm |
 EDAC Inc. | Polybutylene Terephthalate (PBT) Polyester | Copper Alloy | Flash | Board Lock | 70 °C | 0 °C | 1 | 90 ° | 8 | Does Not Contain LED | Solder | RJ45 | Through Hole | 10/100/1000 Base-T AutoMDIX | EMI Finger Shielded | Gold | Up | Phosphor Bronze | 1 | 0.535 in | 13.59 mm |
EDAC Inc. | Polybutylene Terephthalate (PBT) Polyester | Brass | Flash | Board Guide | 70 °C | 0 °C | 1 | 90 ° | 8 | Green - Green | Solder | RJ45 | Through Hole | 10/100/1000 Base-T AutoMDIX | EMI Finger Shielded | Gold | Up | Copper Alloy | 1 | 0.535 in | 13.59 mm |
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Flash | Board Lock | 70 °C | 0 °C | 1 | 90 ° | 8 | Green - Yellow | Solder | RJ45 | Through Hole | 10/100/1000 Base-T AutoMDIX | EMI Finger Shielded | Gold | Down | Phosphor Bronze | 1 | 0.535 in | 13.59 mm |
