1926734 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

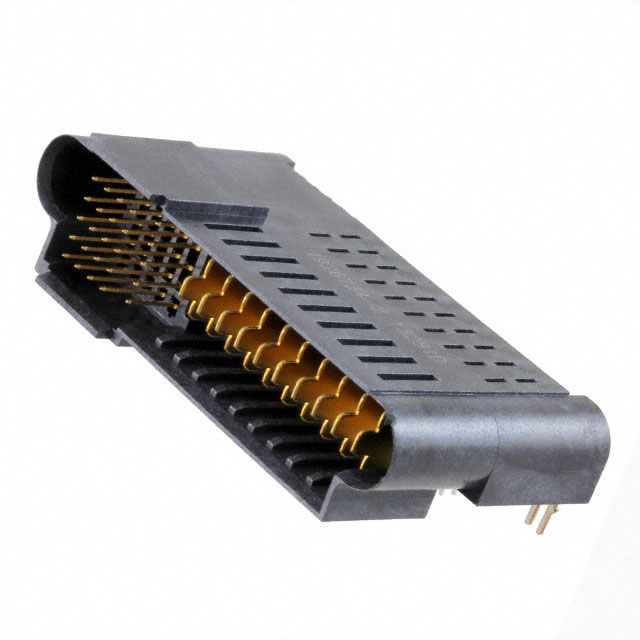

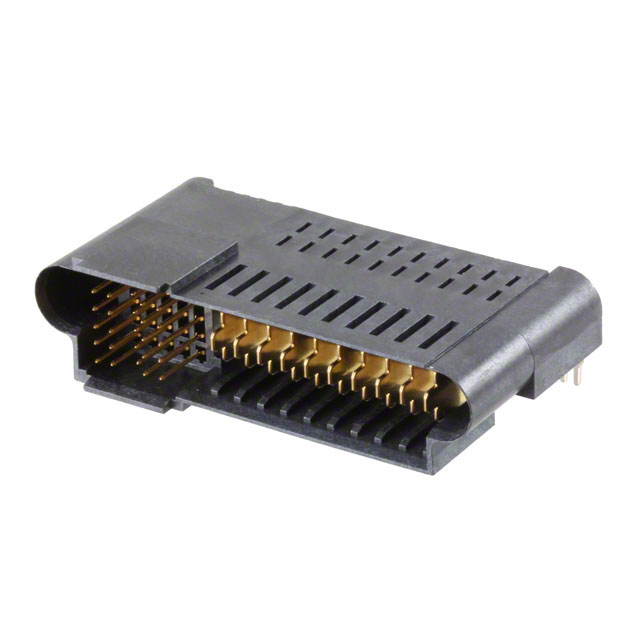

CONN PLUG 35POS EDGE MNT
| Part | Termination | Color | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Number of Positions Loaded | Contact Finish | Features | Connector Type | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Positions | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Press-Fit | Black | 25 | 10 | All | Gold Gold-Palladium | Board Lock Mating Guide | Plug Male Pins and Blades | UL94 V-0 | 0.76 Ám | 30 Áin | Board Edge Right Angle Through Hole | 35 | 5 | ||||
 TE Connectivity Raychem Cable Protection | Press-Fit | Black | 25 | 10 | All | Gold Gold-Palladium | Board Lock Mating Guide | Plug Male Pins and Blades | UL94 V-0 | 0.76 Ám | 30 Áin | Board Edge Right Angle Through Hole | 35 | 5 | ||||
TE Connectivity Raychem Cable Protection | Press-Fit | Black | 25 | 8 | All | Gold | Board Lock Mating Guide | Plug Male Pins and Blades | UL94 V-0 | 0.76 Ám | 30 Áin | Board Edge Right Angle Through Hole | 33 | 5 | -40 °C | 70 °C | 0.5 A | 150 VAC |
