CL-1-2008 Series

Catalog

PMI RND .555" LED 24V ULTRA BRIG

Part	Voltage	Termination Style	Panel Cutout Dimensions	Panel Cutout Dimensions	Type	Viewing Angle	Lens Style	Panel Cutout Shape	Ingress Protection	Lens Color	Current	Lamp Color	Millicandela Rating	Ratings
Visual Communications Company - VCC CL-1-2008-9910-I	2.1 V 24 V	Wire Leads - 6.000" (152.40mm)	0.56 in	14.2 mm	LED	30 °	Round with Domed Top	Round	IP67	Green	20 mA	Green	100 mcd	DC
Visual Communications Company - VCC CL-1-2008-9914-I	2.1 V 60 V	Wire Leads - 6.000" (152.40mm)	0.56 in	14.2 mm	LED	30 °	Round with Domed Top	Round	IP67	Green	20 mA	Green	100 mcd	DC
Visual Communications Company - VCC CL-1-2008-9907-I	2.1 V 5 V	Wire Leads - 6.000" (152.40mm)	0.56 in	14.2 mm	LED	30 °	Round with Domed Top	Round	IP67	Green	20 mA	Green	100 mcd	DC
Visual Communications Company - VCC CL-1-2008-9912-I	2.1 V 48 V	Wire Leads - 6.000" (152.40mm)	0.56 in	14.2 mm	LED	30 °	Round with Domed Top	Round	IP67	Green	20 mA	Green	100 mcd	DC

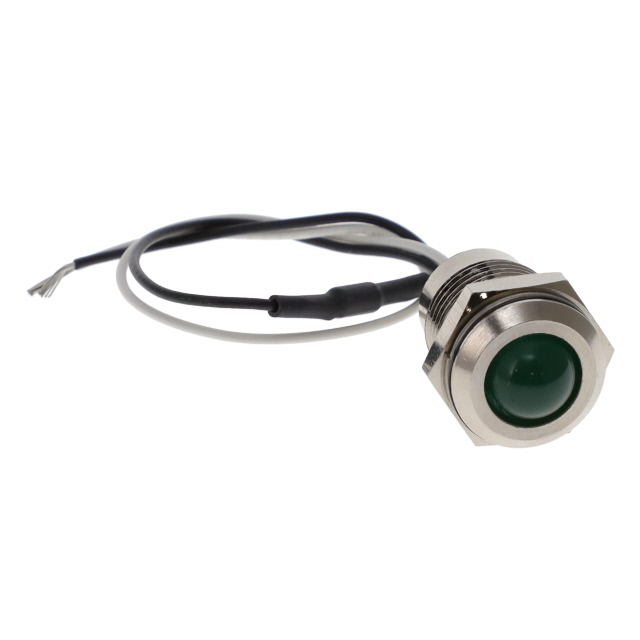

Visual Communications Company - VCC CL-1-2008-0120-I	120 V		0.551 in	14 mm	LED	30 °	Round with Domed Top	Round	IP67		7 mA	Green	100 mcd	AC
Visual Communications Company - VCC CL-1-2008-0240-I	240 V		0.551 in	14 mm	LED	30 °	Round with Domed Top	Round	IP67		3.5 mA	Green	100 mcd	AC
