PCA85 Series
Manufacturer: NXP USA Inc.
Beta
⌘K

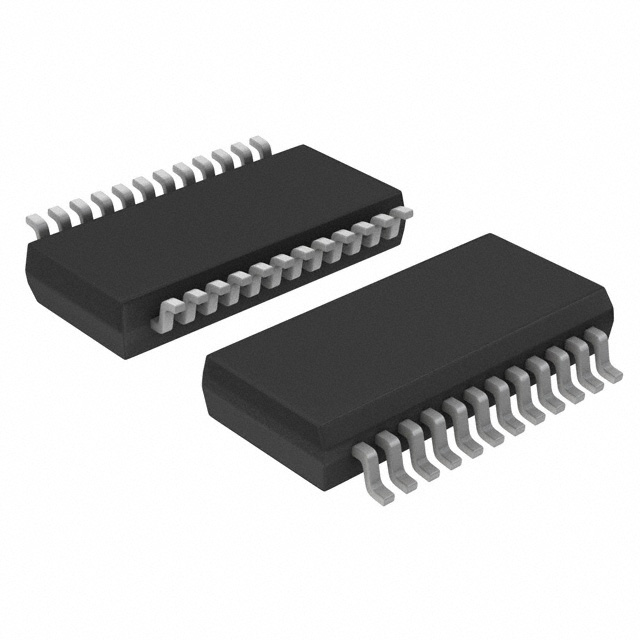

IC XPNDR 400KHZ I2C 24SSOP
| Part | Mounting Type | Package Name | Clock Frequency | Number of I/O | Features | Package Width | Package Length | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Output Type | Interface | Current - Output Sink | Current - Output Source | Operating Temperature (Min) | Operating Temperature (Max) | Interrupt Output | Current - Timekeeping (Max) Maximum | Current - Timekeeping (Max) Minimum | Date Format | Time Format | Type | Package / Case | Memory Format | Memory Size | Memory Depth | Memory Width | Technology | Memory Type | Memory Interface (Type) | Write Cycle Time - Word | Write Cycle Time - Page |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NXP USA Inc. | Surface Mount | 24-SSOP | 400 kHz | 16 | POR | 3.9 mm | 0.154 in | 5.5 V | 2.3 V | Push-Pull | I2C | 25 mA | 100 µA | -40 °C | 85 °C | Yes | |||||||||||||||
 NXP USA Inc. | Surface Mount | 20-LSSOP 20-SSOP | 400 kHz | 8 | POR | 4.4 mm | 0.173 in | 5.5 V | 2.3 V | Push-Pull | I2C | 25 mA | 100 µA | -40 °C | 85 °C | Yes | |||||||||||||||
 NXP USA Inc. | Through Hole | 16-DIP | 400 kHz | 8 | POR | 7.62 mm | 0.3 in | 5.5 V | 2.3 V | Push-Pull | I2C | 25 mA | 100 µA | -40 °C | 85 °C | Yes | |||||||||||||||
 NXP USA Inc. | Surface Mount | 16-SO 16-SOIC | 400 kHz | 8 | POR | 7.5 mm | 0.295 in | 5.5 V | 2.3 V | Push-Pull | I2C | 25 mA | 100 µA | -40 °C | 85 °C | Yes | |||||||||||||||
 NXP USA Inc. | Surface Mount | 10-HVSON | Alarm Leap Year Square Wave Output Watchdog Timer | 3 mm | 3 mm | 5.5 V | 1.8 V | 2-Wire Serial I2C | -40 °C | 125 °C | 5 µA | 1.2 µA | YY-MM-DD-dd | HH:MM:SS (24 hr) | Clock/Calendar | 10-VFDFN Exposed Pad | |||||||||||||||
 NXP USA Inc. | Surface Mount | 24-SSOP | 400 kHz | 16 | POR | 5.3 mm | 0.209 in | 5.5 V | 2.3 V | Push-Pull | I2C | 25 mA | 100 µA | -40 °C | 85 °C | Yes | |||||||||||||||
 NXP USA Inc. | Through Hole | 8-DIP | 100 kHz | 7.62 mm | 0.3 in | 5.5 V | 4.5 V | -25 °C | 85 °C | EEPROM | 1 Kbit | 128 | 8 bit | EEPROM | Non-Volatile | I2C | 10 ms | 10 ms | |||||||||||||
 NXP USA Inc. | Surface Mount | 8-SO 8-SOIC | 100 kHz | 3.9 mm | 0.154 in | 6 V | 2.5 V | -25 °C | 85 °C | EEPROM | 1 Kbit | 128 | 8 bit | EEPROM | Non-Volatile | I2C | 10 ms | 10 ms | |||||||||||||
 NXP USA Inc. | Surface Mount | 16-TSSOP | 400 kHz | 8 | POR | 4.4 mm | 0.173 in | 5.5 V | 2.3 V | Push-Pull | I2C | 25 mA | 100 µA | -40 °C | 85 °C | Yes | |||||||||||||||
NXP USA Inc. | Surface Mount | 20-LSSOP 20-SSOP | 400 kHz | 8 | POR | 4.4 mm | 0.173 in | 5.5 V | 2.3 V | Push-Pull | I2C | 25 mA | 100 µA | -40 °C | 85 °C | Yes |
