ASM3 Series

Catalog

LED HORTICULTURE ROYAL BLUE 3535

Part	Thermal Resistance of Package	Color	Supplier Device Package	Current - Max [Max]	Current - Test	Temperature - Test	Viewing Angle	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max)	Voltage - Forward (Vf) (Typ)	Wavelength [Max]	Wavelength	Wavelength [Min]	Flux @ 25°C, Current - Test	CRI (Color Rendering Index)	CCT (K) [Max]	CCT (K) [Min]
Broadcom Limited ASM3-SLD1-NST0H	8 °C/W	Royal Blue	3535	700 mA	350 mA	25 °C	130 °	705 mW	530 mW	580 mW	0.136 "	3.45 mm	3.45 mm	0.136 in	1414 (3535 Metric)	Surface Mount	0.085 in	2.15 mm	3 V

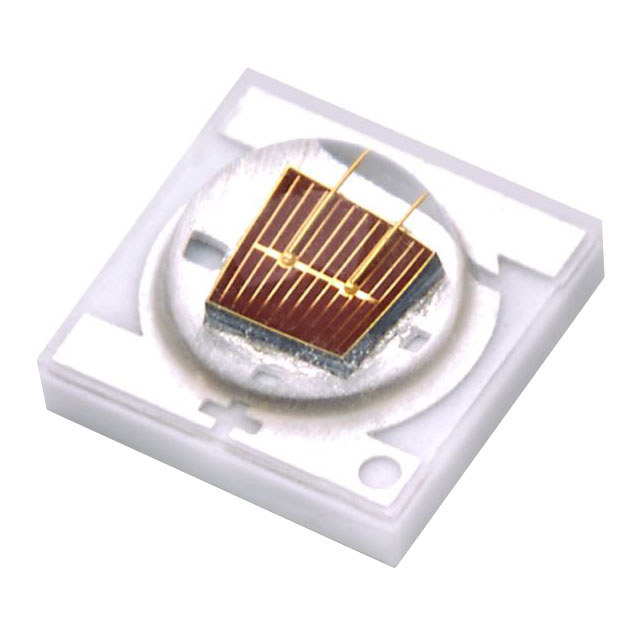

Broadcom Limited ASM3-SDD0-ANP0H	8 °C/W	Red	3535	700 mA	350 mA	25 °C	130 °	430 mW	330 mW	350 mW	0.136 "	3.45 mm	3.45 mm	0.136 in	1414 (3535 Metric)	Surface Mount	0.085 in	2.15 mm	2.1 V	670 nm	655 nm	650 nm
Broadcom Limited ASM3-S3D0-ALN0H	15 °C/W	Red	3535	700 mA	350 mA	25 °C	130 °	380 mW	230 mW	285 mW	0.136 "	3.45 mm	3.45 mm	0.136 in	1414 (3535 Metric)	Surface Mount	0.085 in	2.15 mm	2.1 V	745 nm	735 nm	720 nm

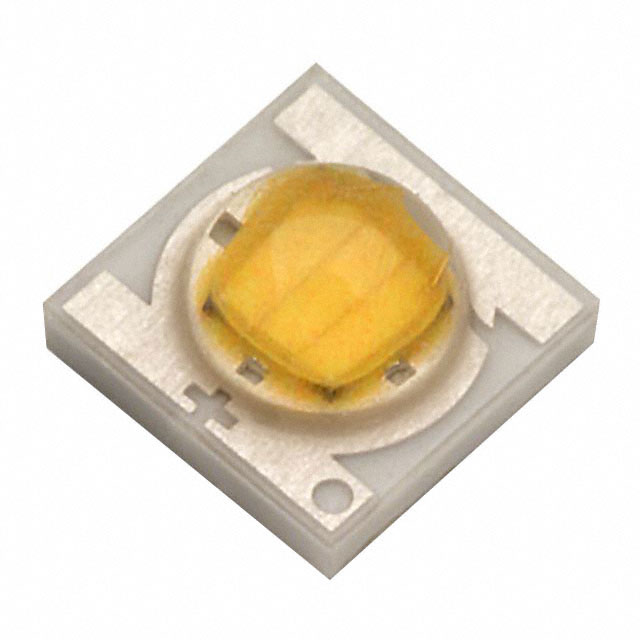

Broadcom Limited ASM3-SWD1-NPRHH	15 °C/W	Cool White	3535	700 mA	350 mA		130 °				0.136 "	3.45 mm	3.45 mm	0.136 in	1414 (3535 Metric)	Surface Mount	0.085 in	2.15 mm	3 V				125 mW	70	10000 K	5000 K
