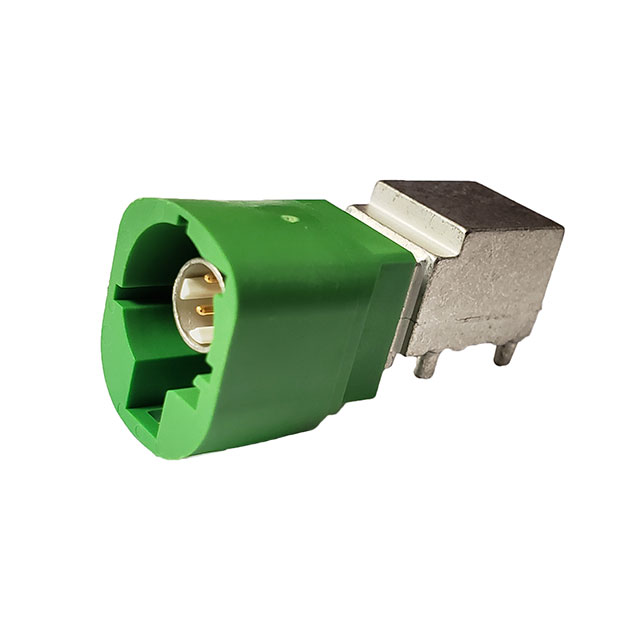

HSD-04L Series
Manufacturer: Adam Tech
Beta
⌘K
CONN FAKRA HIGH SPEED DATA 4POS
| Part | Dielectric Material | Body Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Mating Cycles | Connector Style | Mounting Type | Shield Termination | Connector Type | Center Contact Material | Housing Color | Impedance | Number of Ports | Frequency - Max [Max] | Features | Fastening Type | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Polyamide (PA) Nylon | Zinc Alloy | Tin | -40 C | 105 ░C | Gold | 25 | Fakra HSD® Quadraxial | Right Angle Through Hole | Solder | Plug Male Pin | Brass | Green Yellow | 100 Ohms | 1 | 2 GHz | Code L | Latch Lock | Solder |
