1577624 Series
Manufacturer: TE Connectivity AMP Connectors
Catalog

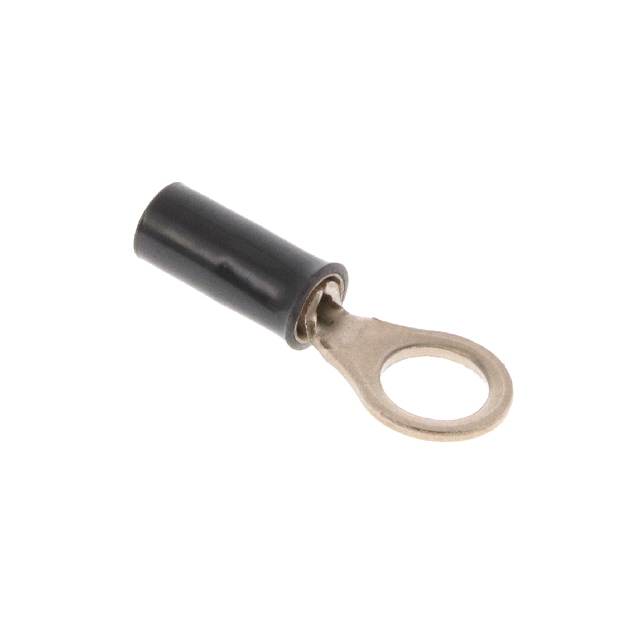

TERMINAL RT PIDG PEEK STRATO 20 AWG
| Part | Material - Insulation | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Min] | Insulation Diameter [Max] | Length - Overall [x] | Length - Overall [x] | Stud/Tab Size | Terminal Type | Mounting Type | Wire Gauge | Termination | Thickness | Thickness | Contact Finish | Features | Contact Material | Insulation | Width - Outer Edges [x] | Width - Outer Edges [x] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polyetheretherketone (PEEK) | 2.03 mm | 0.045 " | 1.14 mm | 0.08 " | 21.16 mm | 0.833 " | 10 Stud | Circular | Free Hanging (In-Line) | 20 AWG | Crimp | 0.81 mm | 0.032 in | Nickel | Serrated Termination | Copper | Insulated | 7.14 mm | 0.281 in | Gray |
