R16305 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

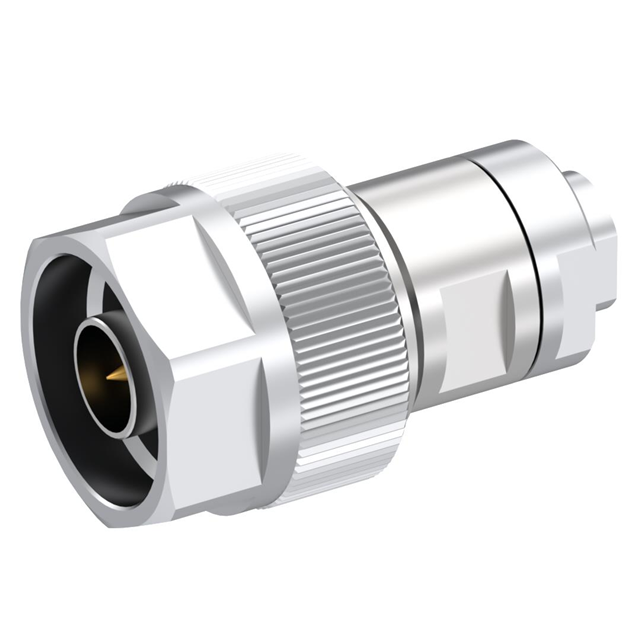

N 18 / STRAIGHT PLUG SOLDER TYPE
| Part | Voltage Rating | Body Material | Dielectric Material | Mating Cycles | Insertion Loss | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Center Contact Material | Contact Termination | Connector Type | Impedance | Mounting Type | Shield Termination | Fastening Type | Frequency - Max [Max] | Ingress Protection | Number of Ports | Connector Style | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 V | Stainless Steel | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | 500 | 0.15 dB | 125 °C | -40 C | Gold | Beryllium Copper | Solder | Plug Male Pin | 50 Ohms | Free Hanging (In-Line) | Solder | Threaded | 18 GHz | IP67 - Dust Tight Waterproof | 1 | N Type | Silver |
