170183 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

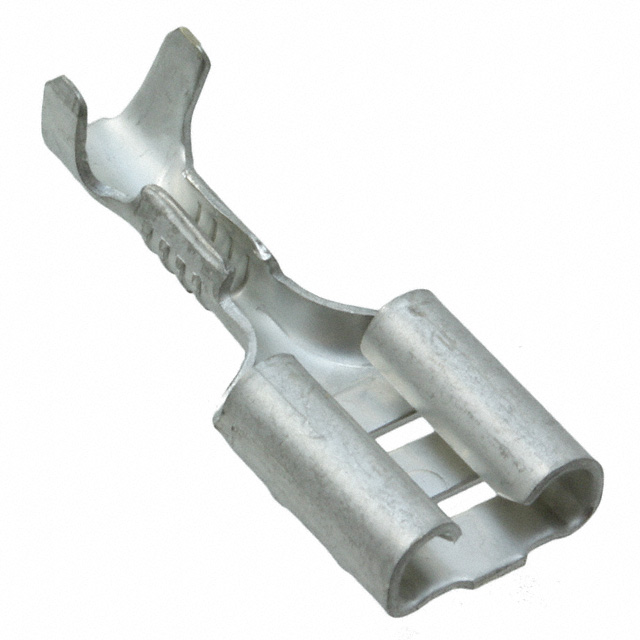

CONN QC RCPT 18-22AWG 0.250
| Part | Contact Finish | Tab Length | Tab Length | Wire Gauge [Max] | Wire Gauge [Min] | Mounting Type | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Tab Width | Tab Width | Gender | Termination | Terminal Type | Tab Thickness | Tab Thickness | Length - Overall | Length - Overall [x] | Contact Material | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Tin | 7.75 mm | 0.305 in | 22 AWG | 17.5 AWG | Free Hanging (In-Line) | 3.3 mm | 2.29 mm | 0.13 in | 0.09 in | 6.35 mm | 0.25 in | Female | Crimp | Standard | 0.031 " | 0.79 mm | 19.05 mm | 0.75 in | Brass | Non-Insulated |
