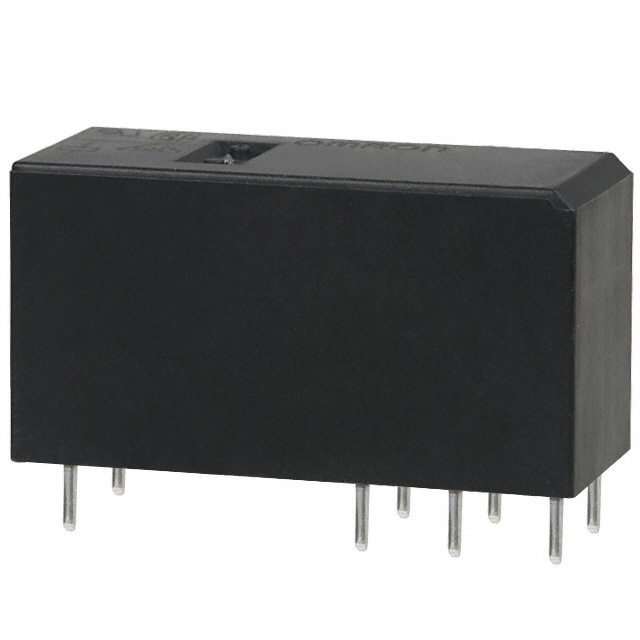

G2RL-24 D Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPDT 8A 12V
| Part | Coil Voltage | Termination Style | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Coil Resistance | Contact Rating (Current) | Coil Insulation | Release Time | Switching Voltage | Operate Time | Contact Material | Contact Form | Coil Type | Coil Current | Approval Agency | Seal Rating | Relay Type | Must Release Voltage | Load - Max Switching | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 12 VDC | PC Pin | Through Hole | 85 °C | -40 °C | 360 Ohms | 8 A | Class F | 5 ms | 300 VDC 440 VAC | 15 ms | Cadmium Free Silver Alloy | DPDT (2 Form C) | Non Latching | 33.3 mA | CQC CSA UR VDE | Sealed - Fully | General Purpose | 1.2 VDC | 2400 W 3520 VA | 8.4 VDC |
Omron Electronics Inc-EMC Div | 5 VDC | PC Pin | Through Hole | 85 °C | -40 °C | 62.5 Ohms | 8 A | Class F | 5 ms | 300 VDC 440 VAC | 15 ms | Cadmium Free Silver Alloy | DPDT (2 Form C) | Non Latching | 80 mA | CQC CSA UR VDE | Sealed - Fully | General Purpose | 0.5 VDC | 2400 W 3520 VA | 3.5 VDC |
