ZFS-105000 Series

Catalog

LED NEUT WHT LNR LGT STRIP 4250K

Part	Temperature - Test	Type	Color	Height [z]	Configuration	Luminous Flux @ Current/Temperature	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Lens Type	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	CCT (K)	Current - Test	Wavelength	Luminous Flux @ Current/Temperature	Features	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]
JKL Components Corp. ZFS-105000HD-12NW	25 °C	LED Module	Neutral White	2 mm	Linear Light Strip Flexible	7900 lm	5000 mm	10 mm	120 °	Flat	5 A	12 V
JKL Components Corp. ZFS-105000HD-24CW	25 °C	LED Module	Cool White	2 mm	Linear Light Strip Flexible	14400 lm	5000 mm	10 mm	120 °	Flat	3.75 A	24 V	6250 K
JKL Components Corp. ZFS-105000-12NW	25 °C	LED Module	Neutral White	2 mm	Linear Light Strip Flexible	3990 lm	5000 mm	10 mm	120 °	Flat	2.5 A	12 V
JKL Components Corp. ZFS-105000-24NW	25 °C	LED Module	Neutral White	2 mm	Linear Light Strip Flexible	9120 lm	5000 mm	10 mm	120 °	Flat	2.5 A	24 V

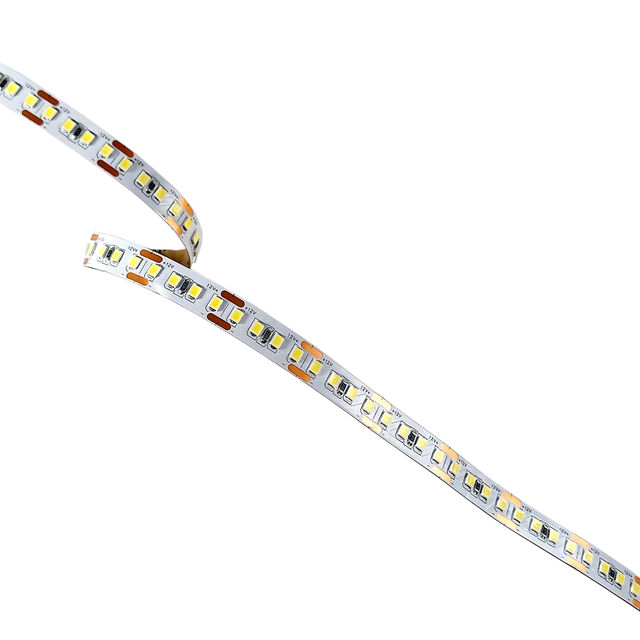

JKL Components Corp. ZFS-105000HD-12WW	25 °C	LED Module	Warm White	2 mm	Linear Light Strip Flexible	7500 lm	5000 mm	10 mm	120 °	Flat	5 A	12 V	3050 K
JKL Components Corp. ZFS-105000-24CW	25 °C	LED Module	Cool White	2 mm	Linear Light Strip Flexible	9600 lm	5000 mm	10 mm	120 °	Flat	2.5 A	24 V	6250 K

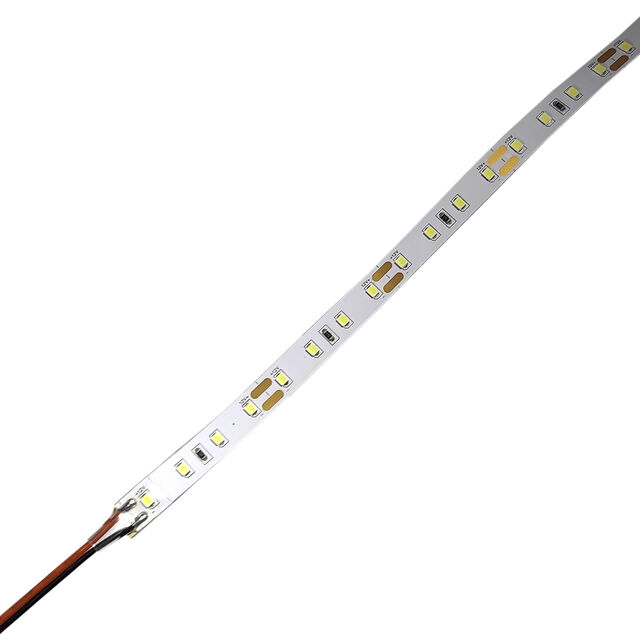

JKL Components Corp. ZFS-105000-12WW	25 °C	LED Module	Warm White	2 mm	Linear Light Strip Flexible	3750 lm	5000 mm	10 mm	120 °	Flat	2.5 A	12 V	3050 K

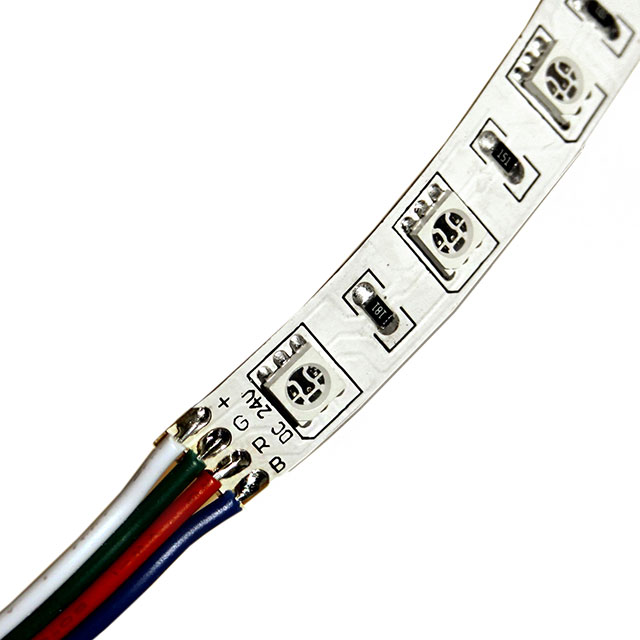

JKL Components Corp. ZFS-105000-24RGB	25 °C	LED Engine	Blue Green Red	1.46 mm	Linear Light Strip Flexible		5000 mm	10 mm	100 °	Flat	3 A	24 V		1 A	470 nm 524 nm 630 nm	143 lm 428 lm 1508 lm	With Connector	18 lm/W	69 lm/W	6 lm/W
JKL Components Corp. ZFS-105000-12CW	25 °C	LED Module	Cool White	2 mm	Linear Light Strip Flexible	4200 lm	5000 mm	10 mm	120 °	Flat	2.5 A	12 V	6250 K
JKL Components Corp. ZFS-105000HD-12CW	25 °C	LED Module	Cool White	2 mm	Linear Light Strip Flexible	8400 lm	5000 mm	10 mm	120 °	Flat	5 A	12 V	6250 K
