89505 Series
Manufacturer: Belden Inc.
Beta
⌘K

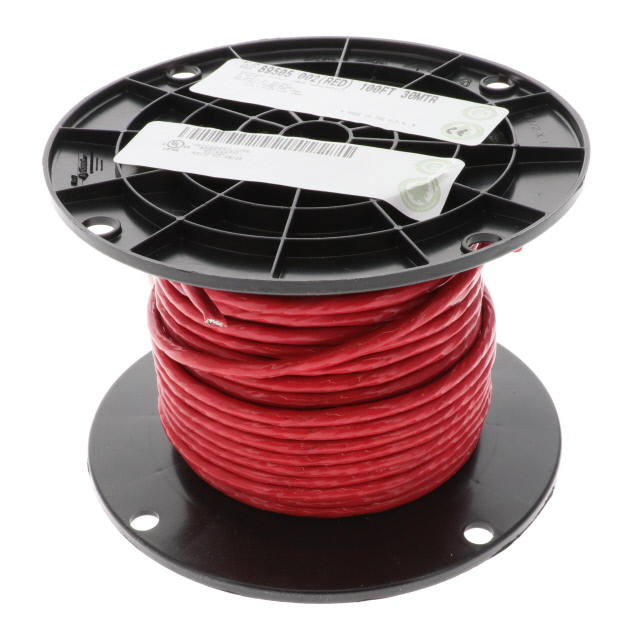

MULTI-PAIR 10COND 24AWG RED 100'
| Part | Shield Material | Shield Coverage | Usage | Features | Jacket (Insulation) Material | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Conductor Insulation | Length [x] | Length [x] | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Ratings | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Computer | Drain Wire | Fluorinated Ethylene-Propylene (FEP) Plenum | Multi-Pair | 7 | 32 AWG | 10 | Fluorinated Ethylene-Propylene (FEP) | 100 ft | 30.5 m | Red | -70 °C | 200 °C | Copper Tinned | 0.014 in | 0.356 mm | Foil | 24 AWG | 0.197 in | 5 mm | ||||
 Belden Inc. | Aluminum | 100 % | Computer | Drain Wire | Fluorinated Ethylene-Propylene (FEP) Plenum | Multi-Pair | 7 | 32 AWG | 10 | Fluorinated Ethylene-Propylene (FEP) | Red | -70 °C | 200 °C | Copper Tinned | 0.014 in | 0.356 mm | Foil | 24 AWG | 0.197 in | 5 mm | 304.8 m | 1000 ft | UL Style CMP | 300 VDC |
