T48SR Series
Manufacturer: Delta Electronics
Beta
⌘K

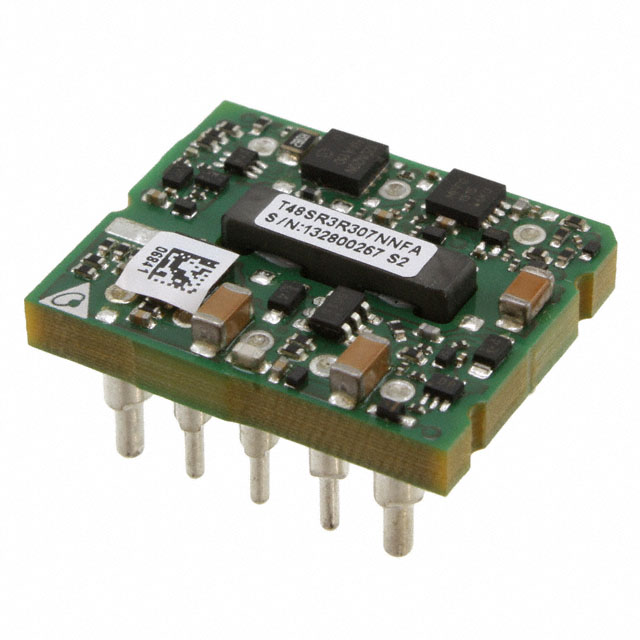

MODULE DC-DC 48VIN 1-OUT 3.3V 7.5A 24.75W 8-PIN 1/32-BRICK
| Part | Type | Voltage - Input (Max) [Max] | Power (Watts) | Current - Output (Max) [Max] | Applications | Number of Outputs | Features | Voltage - Input (Min) [Min] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Mounting Type | Voltage - Output 1 | Control Features | Efficiency | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Isolated Module | 75 V | 25 W | 7.5 A | ITE (Commercial) | 1 | OCP OTP OVP Remote On/Off UVLO | 36 V | 8-DIP Module 1/32 Brick | 85 °C | -40 C | 8.9 mm | 23.4 mm | 19.1 mm | 0.75 in | 0.92 " | 0.35 in | Through Hole | 3.3 V | Active Low Enable | 86 % | 1.5 kV |
