747470 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

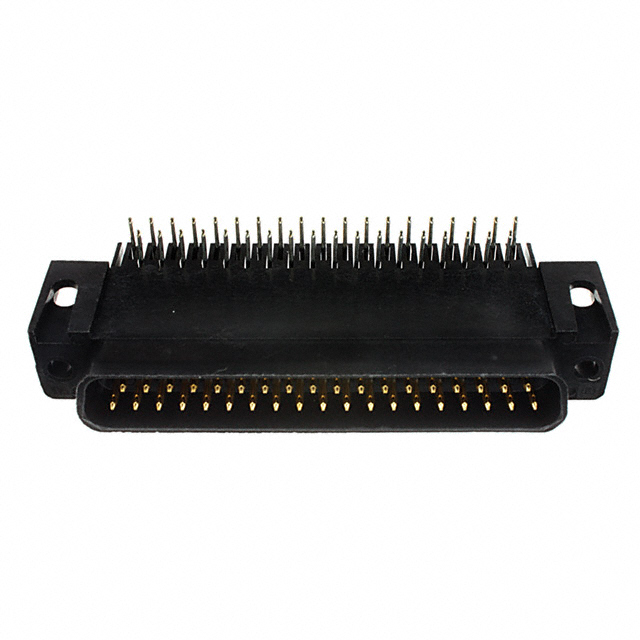

37 APFL PLUG RA 590 ROHS COMPLIANT: NO
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Material | Color | Shell Size, Connector Layout | Shell Size, Connector Layout | Termination | Material Flammability Rating | Contact Finish | Backset Spacing | Backset Spacing | Contact Type | Number of Positions | Current Rating (Amps) | Connector Type | Connector Style | Flange Feature | Mounting Type | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -55 C | 105 ░C | 125 VDC | Brass | Black | 4 | DC C | Solder | UL94 V-0 | Gold | 0.59 in | 14.99 mm | Signal | 37 | 6 A | Plug Male Pins | D-Sub | Housing/Shell (Unthreaded) | Right Angle Through Hole | 2 |
