9392 Series
Manufacturer: Belden Inc.
Beta
⌘K

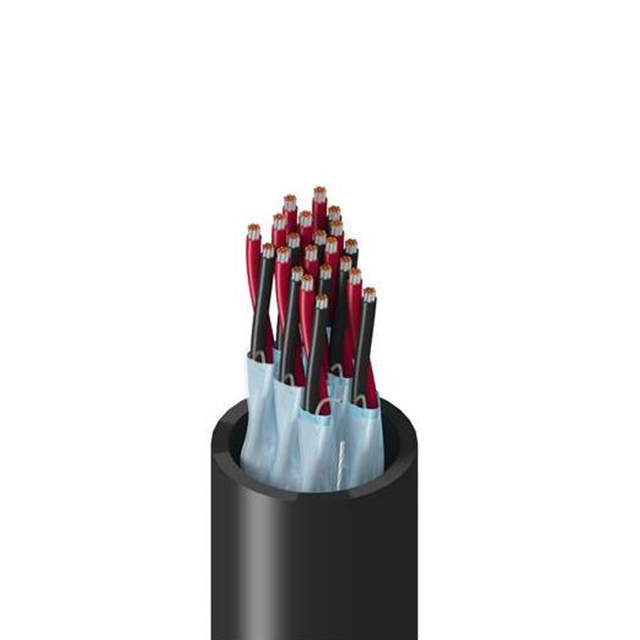

MULTI-PAIR 30COND 18AWG
| Part | Shield Coverage | Shield Material | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Features | Ratings | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Usage | Shield Type | Length | Length | Wire Gauge | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Multi-Pair | 1.6 mm | 0.063 in | -30 ░C | 105 ░C | Chrome | Poly-Vinyl Chloride (PVC) | 30 AWG | 19 | Direct Burial Drain Wire Ripcord UV Resistant | UL Style 2464 | 30 | 20.4 mm | 0.803 in | Copper Tinned | Audio Control Instrumentation | Foil | 304.8 m | 1000 ft | 18 AWG | Poly-Vinyl Chloride (PVC) |
