AS5147 Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K

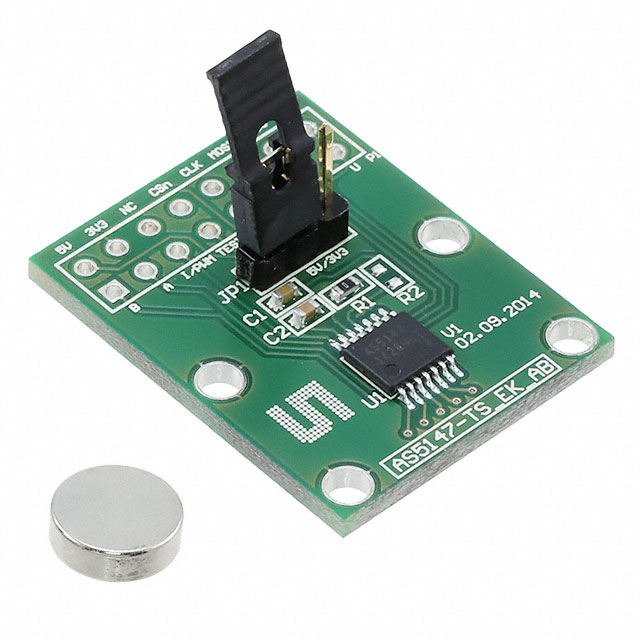

BOARD ADAPTER AS5147
| Part | Supplied Contents | Utilized IC / Part | Contents | Voltage - Supply | Sensing Range | Interface | Sensor Type | Output Type | Built in Switch | Actuator Type | Mounting Type | Encoder Type | Detent | Grade | Voltage - Supply [Max] | Voltage - Supply [Min] | Termination Style | Qualification | Pulses per Revolution |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | Accessories Board(s) | AS5147 | Accessories Board(s) | 3.3 V 5 VDC | 360 ° | SPI | Magnetic Rotary Position | ||||||||||||
 ams-OSRAM USA INC. | Commutation PWM Quadrature with Index (Incremental) SPI | External Magnet Not Included | Surface Mount | Magnetic | Automotive | 3.6 V 5.5 V | 3 V 4.5 V | SMD (SMT) Tab | AEC-Q100 | Programmable |
