SCP7QTF1 Series

Catalog

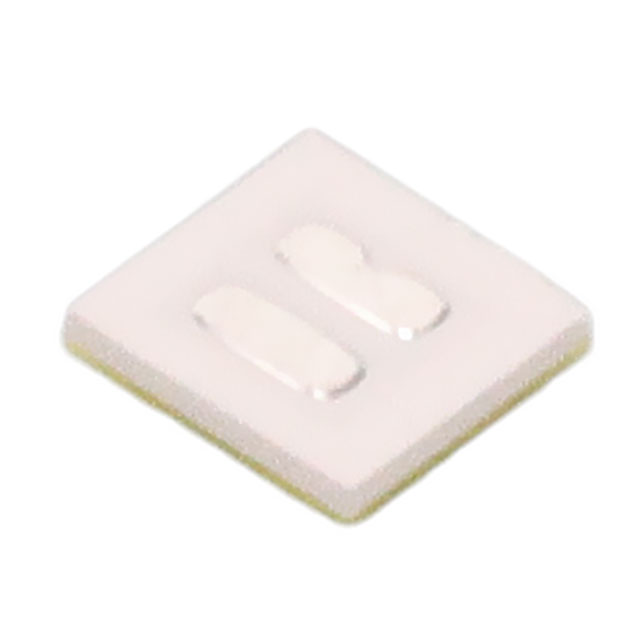

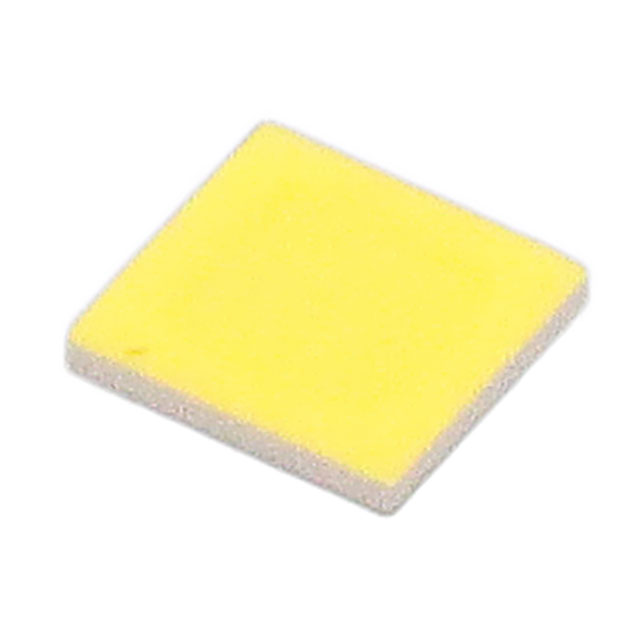

LED LH181B COOL WHITE 5700K SMD

Part	Thermal Resistance of Package	Current - Max [Max]	Current - Test	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	CRI (Color Rendering Index)	CCT (K)	Package / Case	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Viewing Angle	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test	Color	CCT (K)
Samsung Semiconductor, Inc. SCP7QTF1HEL1QKP34E	2 °C/W	1.4 A	350 mA	172 lm/W	2.9 V	0.019 in	0.48 mm	70	5700 K	2-SMD No Lead	Surface Mount	2.36 mm	0.093 in	2.36 mm	0.093 in	SMD	120 °	190 lm	160 lm	175 lm	Cool White
Samsung Semiconductor, Inc. SCP7QTF1HEL1QUP34E	2 °C/W	1.4 A	350 mA	172 lm/W	2.9 V	0.019 in	0.48 mm	70	5700 K	2-SMD No Lead	Surface Mount	2.36 mm	0.093 in	2.36 mm	0.093 in	SMD	120 °	190 lm	160 lm	175 lm	Cool White	3-Step MacAdam Ellipse
