M80-5T1 Series

Catalog

PIN HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 14 CONTACTS, THROUGH HOLE

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Mated Stacking Heights	Number of Rows [custom]	Contact Shape	Features	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Insulation Material	Shrouding	Termination	Connector Type	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Contact Finish - Post	Material Flammability Rating	Voltage Rating	Fastening Type	Contact Length - Post	Contact Length - Post	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Positions Loaded	Number of Positions	Style	Insulation Height	Insulation Height	Contact Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Mated Stacking Heights [z]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]

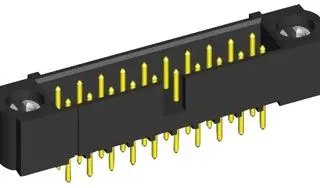

Harwin Inc. M80-5T11442MC	118.1 µin	3 µm	7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	2	Circular	Keying Slot Mating Flange	2.2 A	0.079 "	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Shrouded - 4 Wall	Solder	Header	Gold	2 mm	0.079 in	Through Hole	Tin	UL94 V-0	120 VDC	Push-Turn Lock	0.13 "	3.3 mm	Black	-55 C	121 C	Phosphor Bronze	All	14	Board to Board Cable	5.6 mm	0.22 in	Male Pin	29.5 µin	0.75 µm
Harwin Inc. M80-5T14242M3				2	Circular	Keying Slot Mating Flange Mounting Flange Mounting Hardware	2.2 A	0.079 "	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Shrouded - 4 Wall	Solder	Header	Gold	2 mm	0.079 in	Through Hole	Tin	UL94 V-0	800 VAC	Threaded	0.13 "	3.3 mm	Black	-55 C	125 °C	Phosphor Bronze	All	42	Board to Board Cable	5.6 mm	0.22 in	Male Pin	29.5 µin	0.75 µm	7.3 mm 7.8 mm	12 µin	0.3 µm

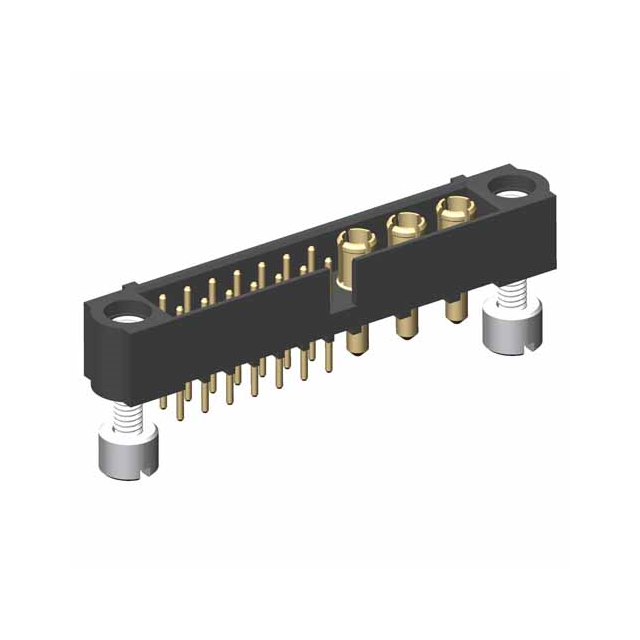

Harwin Inc. M80-5T11405M3-00-000-03-331			7.3 mm		Circular	Keying Slot Mating Flange Mounting Flange Mounting Hardware	2.2 A 20 A			Polyphenylene Sulfide (PPS) Glass Filled	Shrouded - 4 Wall	Solder	Header	Gold			Through Hole	Gold	UL94 V-0	800 VAC	Threaded	0.13 "	3.3 mm	Black	-55 C	125 °C	Copper Alloy Phosphor Bronze	All	17	Board to Cable/Wire	5.6 mm	0.22 in	Male Pin Power	29.5 µin	0.75 µm			29.5 µin	0.75 µm	3	14

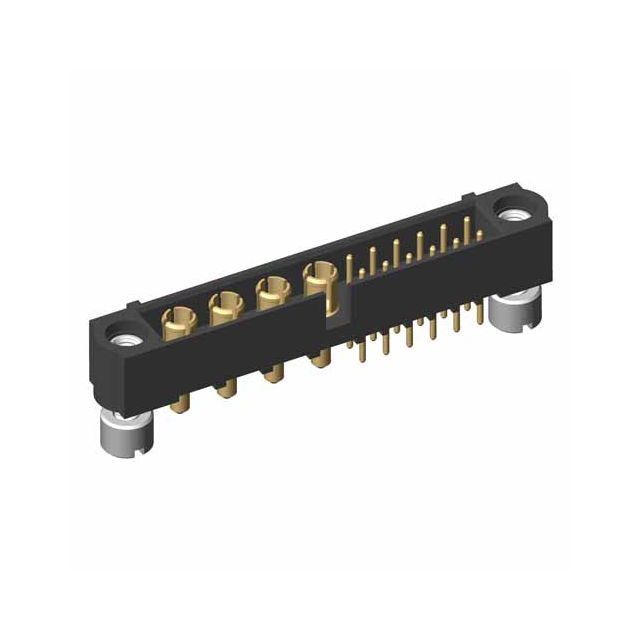

Harwin Inc. M80-5T11205M3-04-331-00-000			7.3 mm		Circular	Keying Slot Mating Flange Mounting Flange Mounting Hardware	2.2 A 20 A			Polyphenylene Sulfide (PPS) Glass Filled	Shrouded - 4 Wall	Solder	Header	Gold			Through Hole	Gold	UL94 V-0	800 VAC	Threaded	0.13 "	3.3 mm	Black	-55 C	125 °C	Copper Alloy Phosphor Bronze	All		Board to Cable/Wire	5.6 mm	0.22 in	Male Pin Power	29.5 µin	0.75 µm			29.5 µin	0.75 µm	4		12

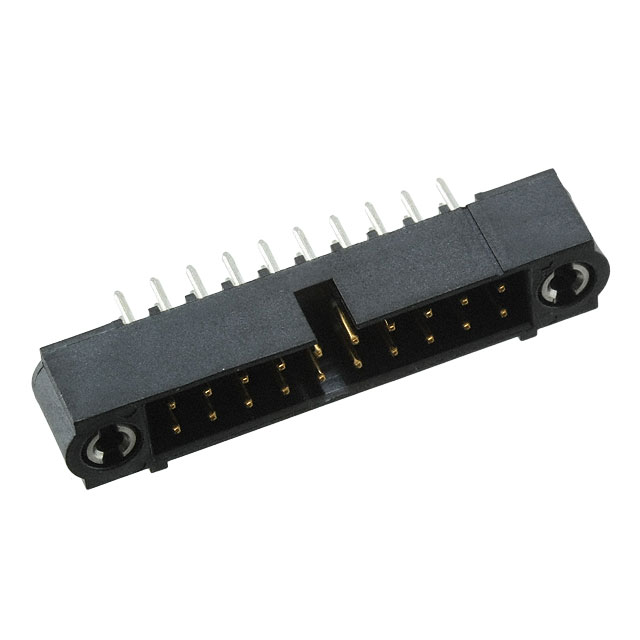

Harwin Inc. M80-5T12042MC	118.1 µin	3 µm	7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	2	Circular	Keying Slot Mating Flange	2.2 A	0.079 "	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Shrouded - 4 Wall	Solder	Header	Gold	2 mm	0.079 in	Through Hole	Tin	UL94 V-0	120 VDC	Push-Turn Lock	0.13 "	3.3 mm	Black	-55 C	121 C	Phosphor Bronze	All	20	Board to Board Cable	5.6 mm	0.22 in	Male Pin	29.5 µin	0.75 µm
Harwin Inc. M80-5T10605M2-02-331-00-000			7.3 mm	2	Circular	Keying Slot Mating Flange Mounting Flange Mounting Hardware	2.2 A 20 A	0.079 "	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Shrouded - 4 Wall	Solder	Header	Gold	2 mm	0.079 in	Through Hole		UL94 V-0	800 VAC	Threaded	0.13 "	3.3 mm	Black	-55 C	125 °C	Copper Alloy Phosphor Bronze	All		Board to Cable/Wire	5.6 mm	0.22 in	Male Pin	29.5 µin	0.75 µm					2			6
Harwin Inc. M80-5T10405M3-04-331-00-000			7.3 mm		Circular	Keying Slot Mating Flange Mounting Flange Mounting Hardware	2.2 A 20 A			Polyphenylene Sulfide (PPS) Glass Filled	Shrouded - 4 Wall	Solder	Header	Gold			Through Hole	Gold	UL94 V-0	800 VAC	Threaded	0.13 "	3.3 mm	Black	-55 C	125 °C	Copper Alloy Phosphor Bronze	All	8	Board to Cable/Wire	5.6 mm	0.22 in	Male Pin Power	29.5 µin	0.75 µm			29.5 µin	0.75 µm

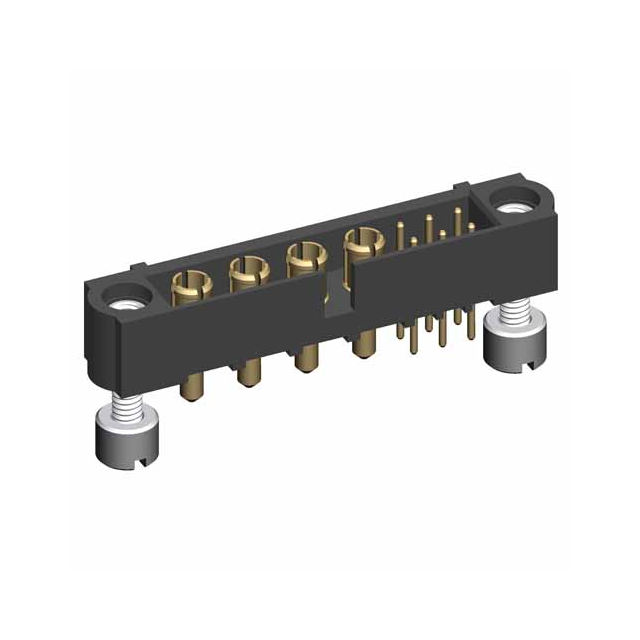

Harwin Inc. M80-5T10605M3-04-331-00-000			7.3 mm		Circular	Keying Slot Mating Flange Mounting Flange Mounting Hardware	2.2 A 20 A			Polyphenylene Sulfide (PPS) Glass Filled	Shrouded - 4 Wall	Solder	Header	Gold			Through Hole	Gold	UL94 V-0	800 VAC	Threaded	0.13 "	3.3 mm	Black	-55 C	125 °C	Copper Alloy Phosphor Bronze	All		Board to Board Cable	5.6 mm	0.22 in	Male Pin Power	29.5 µin	0.75 µm			29.5 µin	0.75 µm	4				6

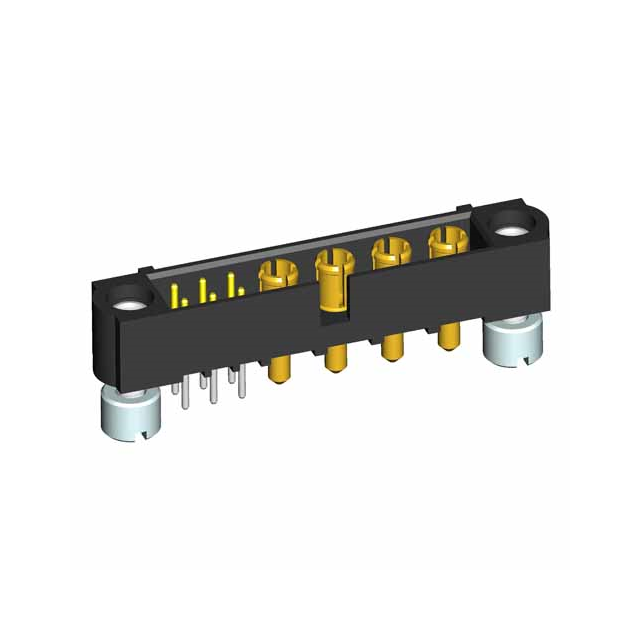

Harwin Inc. M80-5T10642M2-00-000-04-331			7.3 mm 9.75 mm	2	Circular	Keying Slot Mating Flange Mounting Flange Mounting Hardware		0.079 "	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Shrouded - 4 Wall	Solder	Header	Gold	2 mm	0.079 in	Through Hole		UL94 V-0		Threaded	0.13 "	3.3 mm	Black	-55 C	125 °C		All		Board to Cable/Wire	5.6 mm	0.22 in	Male Pin							4				6

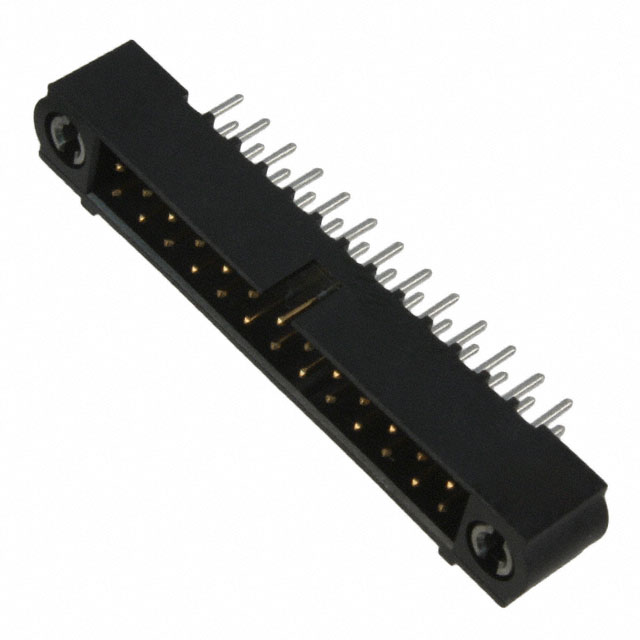

Harwin Inc. M80-5T12642MC	118.1 µin	3 µm	7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	2	Circular	Keying Slot Mating Flange	2.2 A	0.079 "	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Shrouded - 4 Wall	Solder	Header	Gold	2 mm	0.079 in	Through Hole	Tin	UL94 V-0	120 VDC	Push-Turn Lock	0.13 "	3.3 mm	Black	-55 C	121 C	Phosphor Bronze	All	26	Board to Board Cable	5.6 mm	0.22 in	Male Pin	29.5 µin	0.75 µm
