FUSE 250V FA PT 3AB Pb-FREE .125A
Description
AI

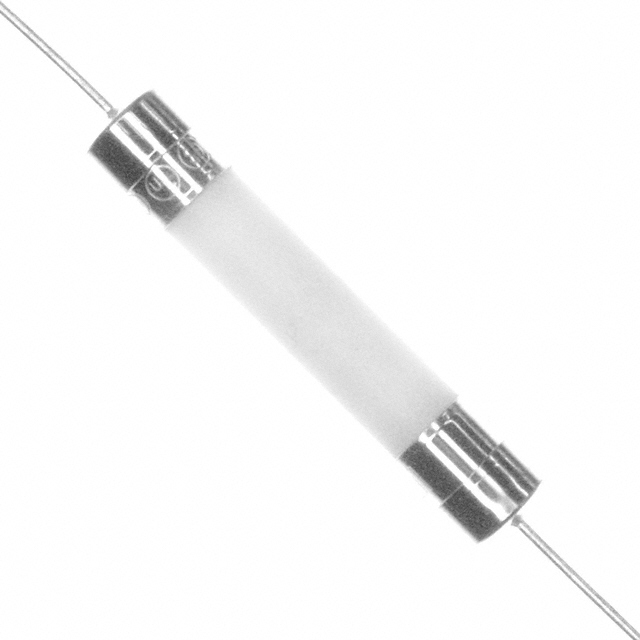

The 3AB Fast-Acting Fuse with ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected.
Beta
⌘K
FUSE 250V FA PT 3AB Pb-FREE .125A
FUSE 250V FA PT 3AB Pb-FREE .125A
| Part | DC Cold Resistance | Breaking Capacity @ Rated Voltage | Mounting Type | Approval Agency | Response Time | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Melting I²t | Voltage Rating - AC | Package / Case [y] | Package / Case | Package / Case [x] | Current Rating (Amps) | Fuse Type | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE | 6.2 Ohms | 10 kA 35 A | Through Hole | CE CSA UL | Fast Blow | 1.288 " | 6.99 mm | 32.72 mm | 0.275 in | -55 C | 125 °C | 0.00149 | 250 V | 3AB 3AG | 0.25 " | 0.125 Amps | Cartridge Ceramic | 125 VDC | |
 LITTELFUSE | 6.2 Ohms | 10 kA 35 A | Through Hole | CE CSA UL | Fast Blow | 1.288 " | 6.99 mm | 32.72 mm | 0.275 in | -55 C | 125 °C | 0.00149 | 250 V | 3AB 3AG | 0.25 " | 0.125 Amps | Cartridge Ceramic | 125 VDC |
