BWR-5 Series

Catalog

DC DC CONVERTER +/-5V 3W

Part	Efficiency	Applications	Package / Case	Type	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Output 2	Voltage - Input (Max) [Max]	Current - Output (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max) [Max]	Features

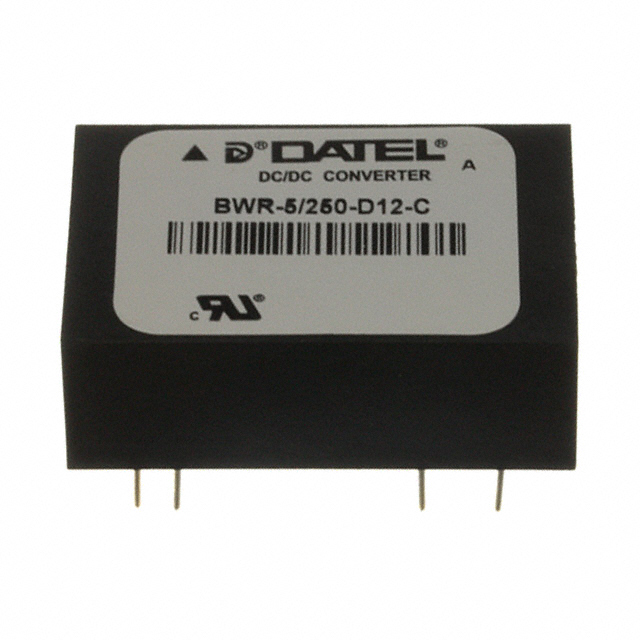

Murata Electronics BWR-5/250-D12-C	77 %	ITE (Commercial)	8-DIP Module	Isolated Module	2	0.45 in	0.8 "	1.25 in	31.8 mm	20.3 mm	11.4 mm	5 V	Through Hole	9 V	-5 V	36 V	250 mA	-25 °C	75 ░C	1000 V	3 W

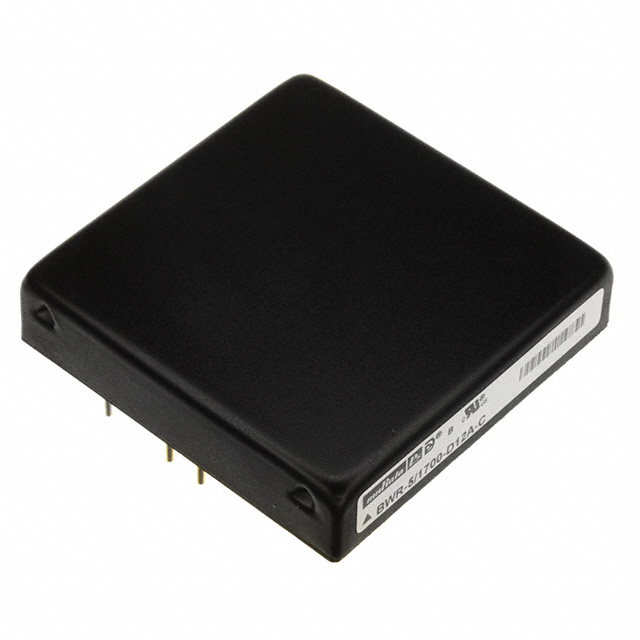

Murata Electronics BWR-5/1700-D12A-C	83 %	ITE (Commercial)	8-DIP Module 7 Leads	Isolated Module	2				50.8 mm			5 V	Through Hole	9 V	-5 V	36 V		-40 C	100 °C	1000 V	17 W	0.45 " 11.4 mm	50.8 mm	1.7 A

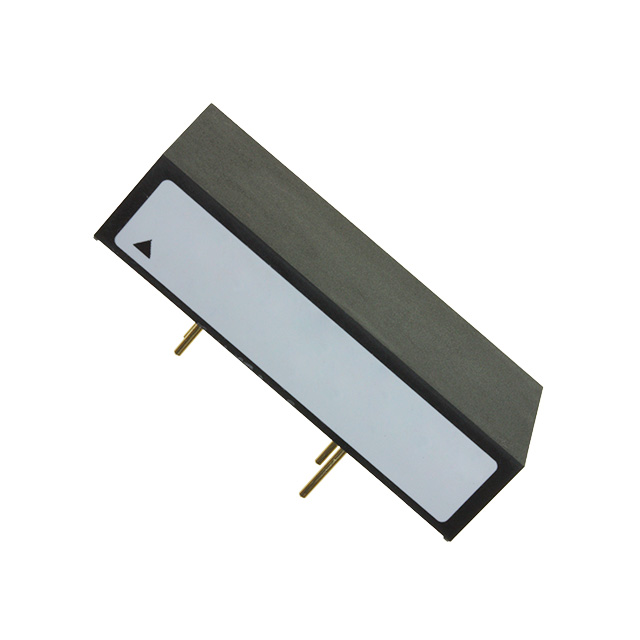

Murata Electronics BWR-5/1500-D48A-C	85 %	ITE (Commercial)	6-DIP Module	Isolated Module	2	0.47 "	1 "	2 in	50.8 mm			5 V	Through Hole	36 V	-5 V	75 V	1.5 A	-40 C	100 °C	1.5 kV	15 W	11.8 mm	25.4 mm		OCP OVP
Murata Electronics BWR-5/1500-D24A-C	83 %	ITE (Commercial)	6-DIP Module	Isolated Module	2	0.47 "	1 "	2 in	50.8 mm			5 V	Through Hole	18 V	-5 V	36 V	1.5 A	-40 C	100 °C	1.5 kV	15 W	11.8 mm	25.4 mm		OCP OVP
