OSTTA05 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

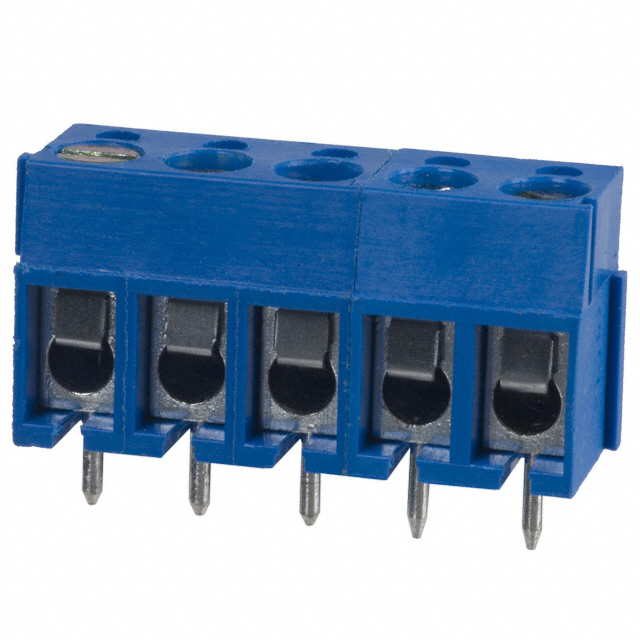

TERM BLK 5POS SIDE ENTRY 5MM PCB
| Part | Clamp Material - Plating [custom] | Torque - Screw | Torque - Screw | Screw Material - Plating | Housing Material | Screw Thread | Operating Temperature [Min] | Operating Temperature [Max] | Current | Features | Wire Termination | Number of Levels | Pitch | Pitch | Mating Orientation | Color | Positions Per Level | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | Stainless Steel | 2.6 Lb-In | 0.3 Nm | Steel - Zinc Plated | Thermoplastic | M3 | -30 ░C | 105 ░C | 16 A | Interlocking (Side) | Screw - Leaf Spring Wire Guard | 1 | 0.197 in | 5 mm | Horizontal with Board | Blue | 5 | 14 AWG | 26 AWG | Through Hole |
 On Shore Technology Inc. | Stainless Steel | 3.5 Lb-In | 0.4 Nm | Steel - Zinc Plated | Thermoplastic | M3 | -30 ░C | 105 ░C | 16 A | Interlocking (Side) | Screw - Leaf Spring Wire Guard | 1 | 0.295 in | 7.5 mm | Horizontal with Board | Blue | 5 | 14 AWG | 22 AWG | Through Hole |
