305-070 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 70 CONTACTS, PANEL MOUNT, STRAIGHT

Part	Termination Rows [custom]	Material - Insulation	Card Type	Features	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions/Bay/Row	Pitch	Pitch	Termination	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Gender	Color	Number of Positions	Contact Type	Read Out	Flange Feature	Card Thickness [Max]	Card Thickness [Min]	Flange Feature [diameter]	Flange Feature [diameter]

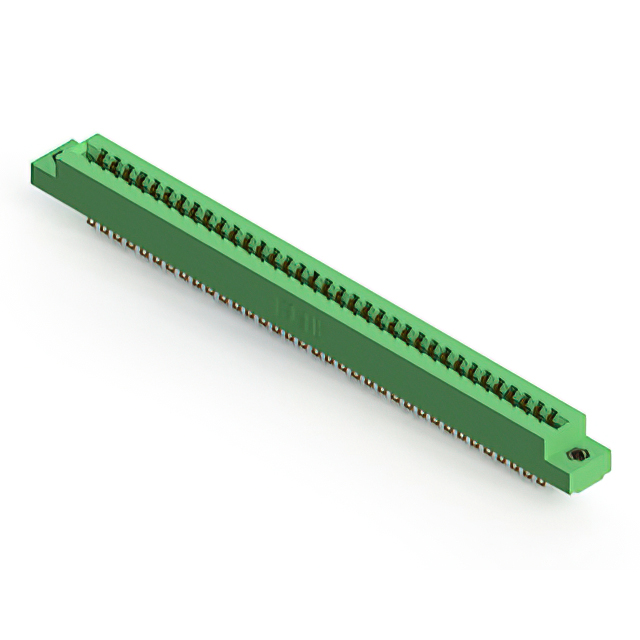

EDAC Inc. 305-070-555-207	2	Polyester Thermoplastic	Non Specified - Dual Edge	Card Extender	Copper Alloy	0.25 Ám	10 Áin	Board Edge Straddle Mount	35	3.96 mm	0.156 in	Solder	Gold	-40 C	105 ░C	2	Female	Green	70	Semi Bellows	Dual	Flush Mount M3 Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 305-070-521-258	2	Polyester Thermoplastic	Non Specified - Dual Edge		Copper Alloy	0.25 Ám	10 Áin	Panel Mount Through Hole	35	3.96 mm	0.156 in	Solder	Gold	-40 C	105 ░C	2	Female	Green	70	Semi Bellows	Dual	4-40 Flush Mount Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 305-070-500-258	2	Polyester Thermoplastic	Non Specified - Dual Edge		Copper Alloy	0.25 Ám	10 Áin	Panel Mount	35	3.96 mm	0.156 in	Solder Eyelet(s)	Gold	-40 C	105 ░C	2	Female	Green	70	Semi Bellows	Dual	4-40 Flush Mount Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 305-070-555-208	2	Polyester Thermoplastic	Non Specified - Dual Edge	Card Extender	Copper Alloy	0.25 Ám	10 Áin	Board Edge Straddle Mount	35	3.96 mm	0.156 in	Solder	Gold	-40 C	105 ░C	2	Female	Green	70	Semi Bellows	Dual	4-40 Flush Mount Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm

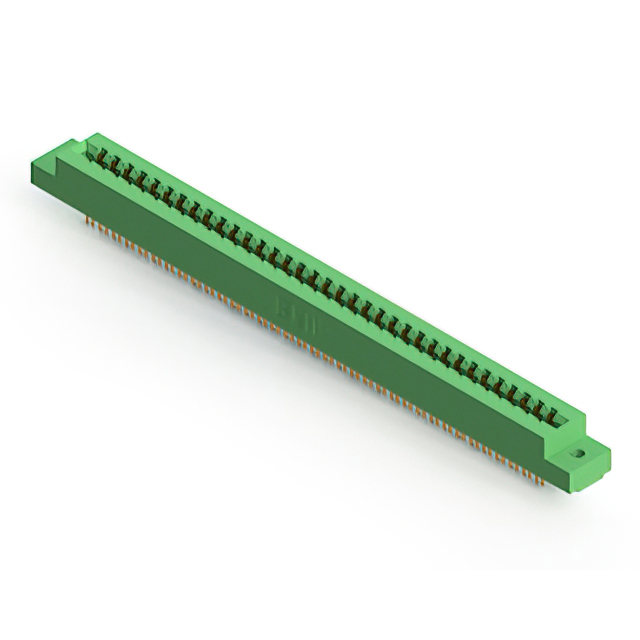

EDAC Inc. 305-070-500-502	2	Polyester Thermoplastic	Non Specified - Dual Edge		Copper Alloy	0.25 Ám	10 Áin	Panel Mount	35	3.96 mm	0.156 in	Solder Eyelet(s)	Gold	-40 C	105 ░C	2	Female	Green	70	Semi Bellows	Dual	Flush Mount Top Opening Unthreaded	0.07 in 1.78 mm	0.054 in 1.37 mm	3.25 mm	0.128 "

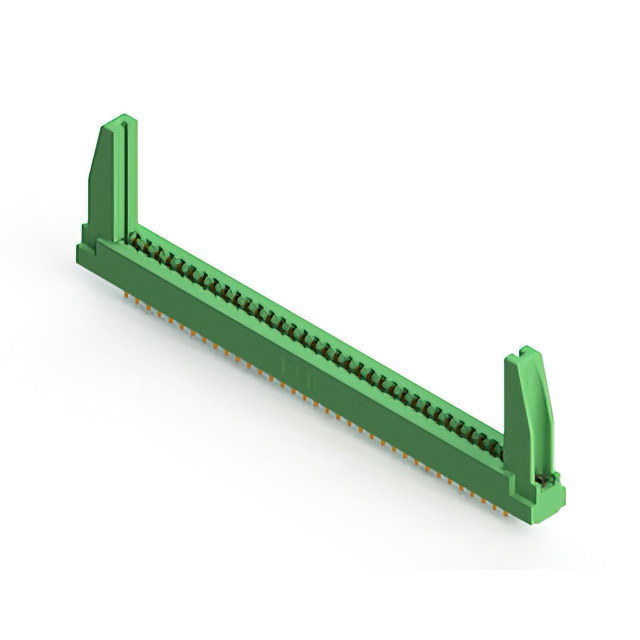

EDAC Inc. 305-070-520-278	2	Polyester Thermoplastic	Non Specified - Dual Edge		Copper Alloy	0.25 Ám	10 Áin	Panel Mount Through Hole	35	3.96 mm	0.156 in	Solder	Gold	-40 C	105 ░C	2	Female	Green	70	Semi Bellows	Dual	4-40 Flush Mount Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 305-070-520-268	2	Polyester Thermoplastic	Non Specified - Dual Edge		Copper Alloy	0.25 Ám	10 Áin	Panel Mount Through Hole	35	3.96 mm	0.156 in	Solder	Gold	-40 C	105 ░C	2	Female	Green	70	Semi Bellows	Dual	4-40 Flush Mount Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm

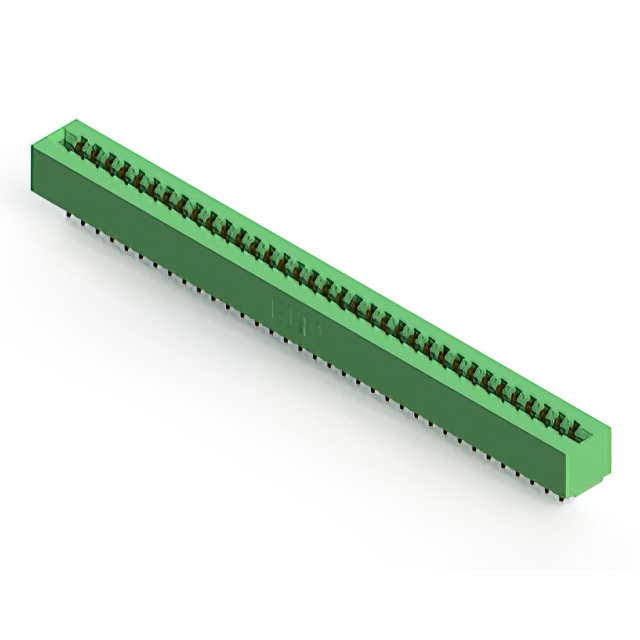

EDAC Inc. 305-070-556-201	2	Polyester Thermoplastic	Non Specified - Dual Edge	Card Extender	Copper Alloy	0.25 Ám	10 Áin	Board Edge Straddle Mount	35	3.96 mm	0.156 in	Solder	Gold	-40 C	105 ░C	2	Female	Green	70	Semi Bellows	Dual		0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 305-070-555-507	2	Polyester Thermoplastic	Non Specified - Dual Edge	Card Extender	Copper Alloy	0.25 Ám	10 Áin	Board Edge Straddle Mount	35	3.96 mm	0.156 in	Solder	Gold	-40 C	105 ░C	2	Female	Green	70	Semi Bellows	Dual	Flush Mount M3 Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm

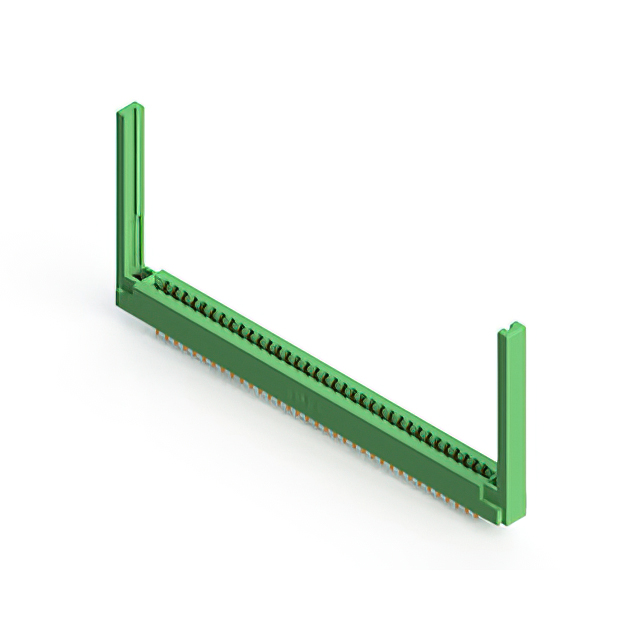

EDAC Inc. 305-070-520-568	2	Polyester Thermoplastic	Non Specified - Dual Edge		Copper Alloy	0.25 Ám	10 Áin	Panel Mount Through Hole	35	3.96 mm	0.156 in	Solder	Gold	-40 C	105 ░C	2	Female	Green	70	Semi Bellows	Dual	4-40 Flush Mount Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm
