LS0851 Series

Manufacturer: E-Switch

Catalog

SWITCH SNAP ACTION SPDT 15A 125V

Part	Termination Style	Circuit	Current Rating (Amps)	Switch Function	Voltage Rating - AC	Actuator Type	Mounting Type	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Pretravel	Pretravel	Operating Position	Operating Position	Release Force	Mechanical Life
E-Switch LS0851500F250S1A	Solder Lug	SPDT	15 A	On-Mom	125 V	Round (Pin Plunger)	Chassis Mount	50000 Cycles	85 °C	-25 °C	0.25 kgf	2 mm	0.08 in	14.7 mm	0.579 in	50 gf	1000000 Cycles
E-Switch LS0851503F025C1B	Quick Connect	SPST-NC	15 A	On-Mom	125 V	Lever Straight	Chassis Mount	50000 Cycles	85 °C	-25 °C		8.5 mm	0.335 in	15.3 mm	0.602 in	10 gf	1000000 Cycles

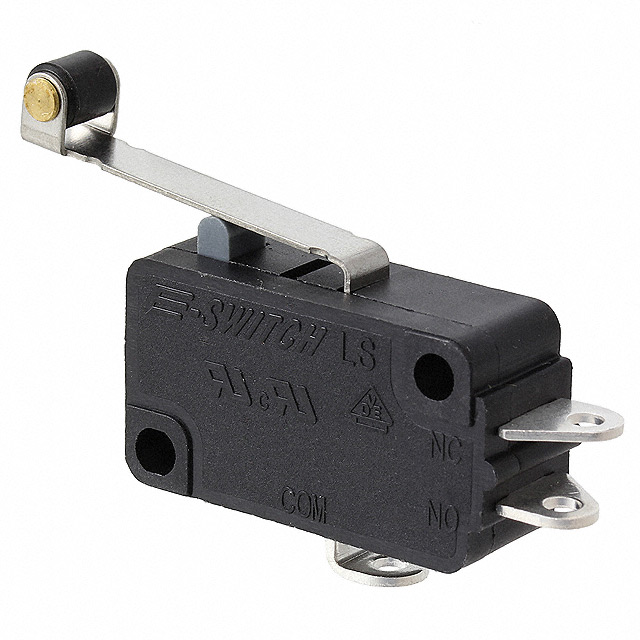

E-Switch LS0851506F045S1A	Solder Lug	SPDT	15 A	On-Mom	125 V	Lever Roller	Chassis Mount	50000 Cycles	85 °C	-25 °C		5.5 mm	0.218 in	20.7 mm	0.815 in	15 gf	1000000 Cycles
E-Switch LS0851504F050C2A	Quick Connect - 0.250" (6.3mm)	SPDT	15 A	On-Mom	125 V	Lever Simulated Roller	Chassis Mount	50000 Cycles	85 °C	-25 °C	50 gf	5.2 mm	0.205 in	19 mm	0.748 in	20 gf	1000000 Cycles
E-Switch LS0851500F250S1C	Solder Lug	SPST-NO	15 A	Off-Mom	125 V	Round (Pin Plunger)	Chassis Mount	50000 Cycles	85 °C	-25 °C	0.25 kgf	2 mm	0.08 in	14.7 mm	0.579 in	50 gf	1000000 Cycles
E-Switch LS0851502F120V1A	PC Pin	SPDT	15 A	On-Mom	125 V	Lever Straight	Right Angle Through Hole	50000 Cycles	85 °C	-25 °C	120 gf	4.1 mm	0.161 in	15.5 mm	0.61 in		1000000 Cycles

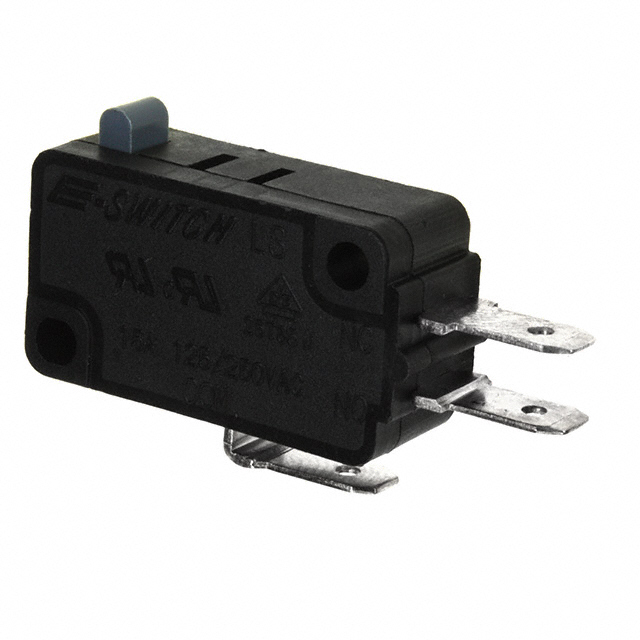

E-Switch LS0851500F160C1A	Quick Connect	SPDT	15 A	On-Mom	125 V	Round (Pin Plunger)	Chassis Mount	50000 Cycles	85 °C	-25 °C	160 gf	2 mm	0.08 in	14.7 mm	0.579 in		1000000 Cycles
E-Switch LS0851502F045S1AREDBLK	Solder Lug	SPDT	15 A	On-Mom	125 V	Lever Straight	Chassis Mount		85 °C	-25 °C		4.1 mm	0.161 in	15.5 mm	0.61 in	20 gf	1000000 Cycles
E-Switch LS0851500F160V2BMK	PC Pin	SPST-NC	15 A	On-Mom	125 V	Round (Pin Plunger)	Right Angle Through Hole	50000 Cycles	85 °C	-25 °C	160 gf	2 mm	0.08 in	14.7 mm	0.579 in		1000000 Cycles
E-Switch LS0851502F045C2A	Quick Connect - 0.250" (6.3mm)	SPDT	15 A	On-Mom	125 V	Lever Straight	Chassis Mount	50000 Cycles	85 °C	-25 °C		4.1 mm	0.161 in	15.5 mm	0.61 in	20 gf	1000000 Cycles
