5200.0423 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

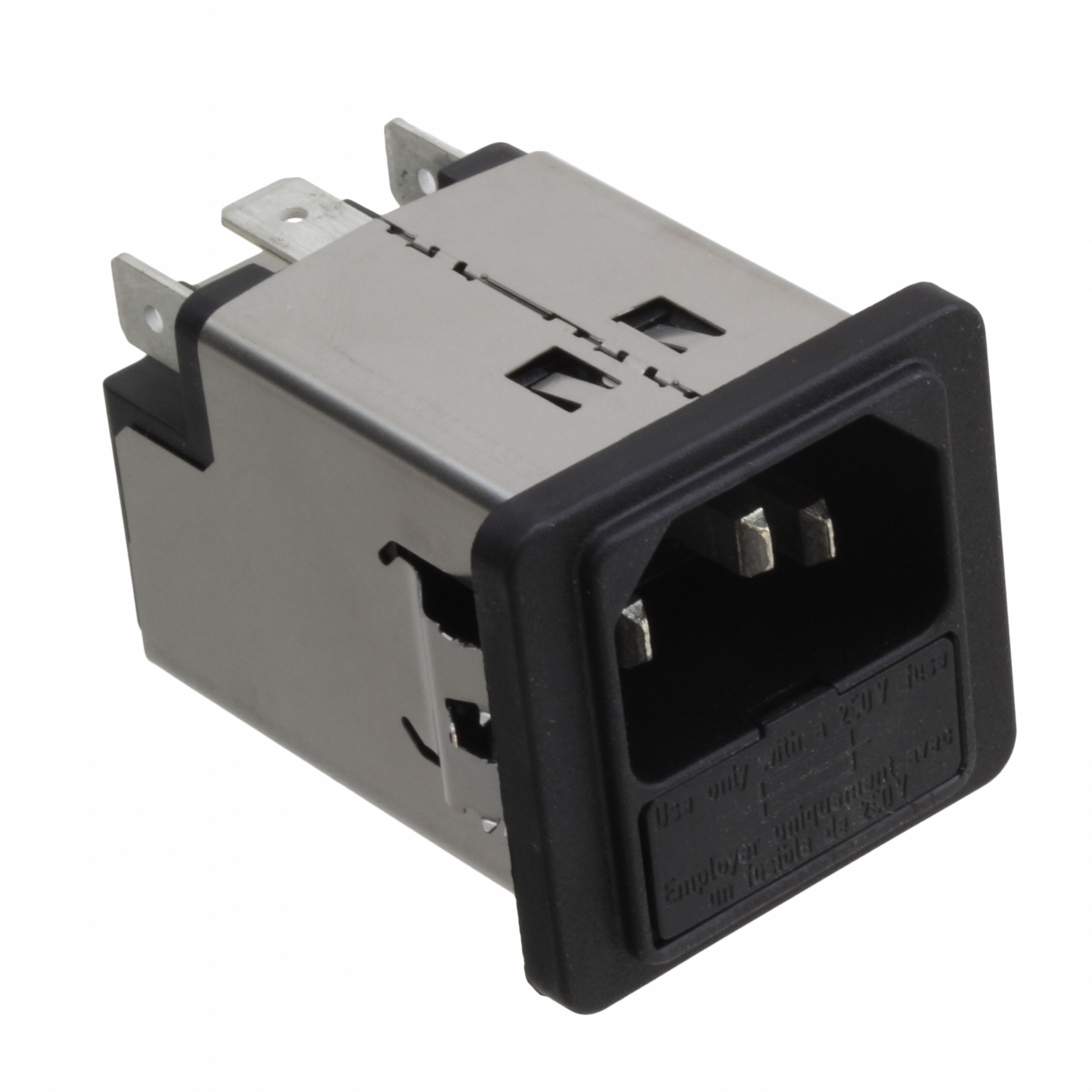

AC POWER ENTRY MODULES 5200 PWR ENTRY MODUL W. FILTER 4A
| Part | Approval Agency | Fuse Holder, Drawer | Connector Type | Connector Style | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Termination | Termination | Termination | Current Rating - Appliance Inlet | Voltage Rating - Appliance Inlet | Material Flammability Rating | Ingress Protection | Accomodates a Fuse | Mounting Type | Current Rating - Filter | Filter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | cULus ENEC | Fuse Holder | Receptacle Male Blades - Module | IEC 320-C14 | 32 mm | 29 mm | 6.3 mm | Quick Connect | 0.25 " | 4 A | 250 VAC | UL94 V-0 | IP40 | ||||
 SCHURTER Inc. | cULus ENEC | Fuse Holder | Receptacle Male Blades - Module | IEC 320-C14 | 32 mm | 29 mm | 6.3 mm | Quick Connect | 0.25 " | 4 A | 250 VAC | UL94 V-0 | IP40 | Flange Panel Mount | 4 A | Filtered (EMI RFI) - Commercial Medical |
