WP3-S0 Series

Catalog

CONN RCPT 24POS SMD GOLD

Part	Contact Finish	Connector Type	Mated Stacking Heights	Mounting Type	Height Above Board [z]	Height Above Board [z]	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Features	Pitch	Pitch	Number of Positions
JAE Electronics WP3-S024VA1-R500	Gold	Receptacle Center Strip Contacts	1 mm	Surface Mount	1 mm	0.039 "	2	0.1 Ám	4 Áin	Solder Retention	0.4 mm	0.016 in	24
JAE Electronics WP3-S070VA1-R6000	Gold	Receptacle Center Strip Contacts	1 mm	Surface Mount	1 mm	0.039 "	2	0.1 Ám	4 Áin	Solder Retention	0.4 mm	0.016 in	70

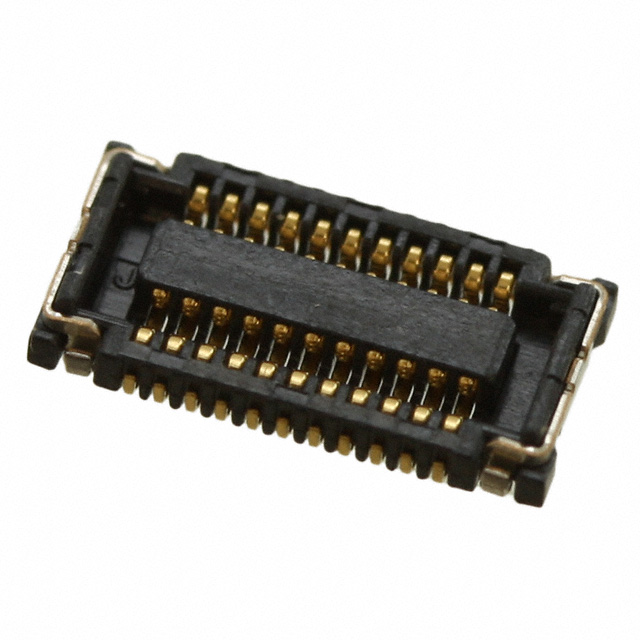

JAE Electronics WP3-S022VA1-R6000	Gold	Receptacle Center Strip Contacts	1 mm	Surface Mount	1 mm	0.039 "	2	0.1 Ám	4 Áin	Solder Retention	0.4 mm	0.016 in	22

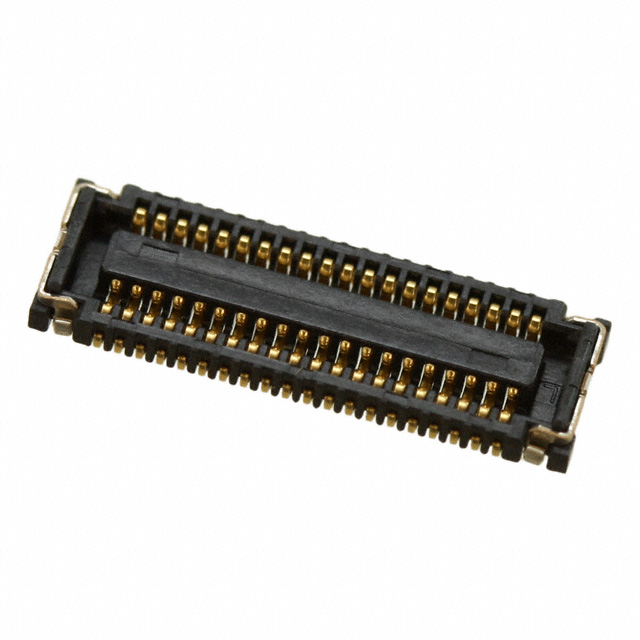

JAE Electronics WP3-S040VA1-R500	Gold	Receptacle Center Strip Contacts	1 mm	Surface Mount	1 mm	0.039 "	2	0.1 Ám	4 Áin	Solder Retention	0.4 mm	0.016 in	40
JAE Electronics WP3-S040VA1-R6000	Gold	Receptacle Center Strip Contacts	1 mm	Surface Mount	1 mm	0.039 "	2	0.1 Ám	4 Áin	Solder Retention	0.4 mm	0.016 in	40

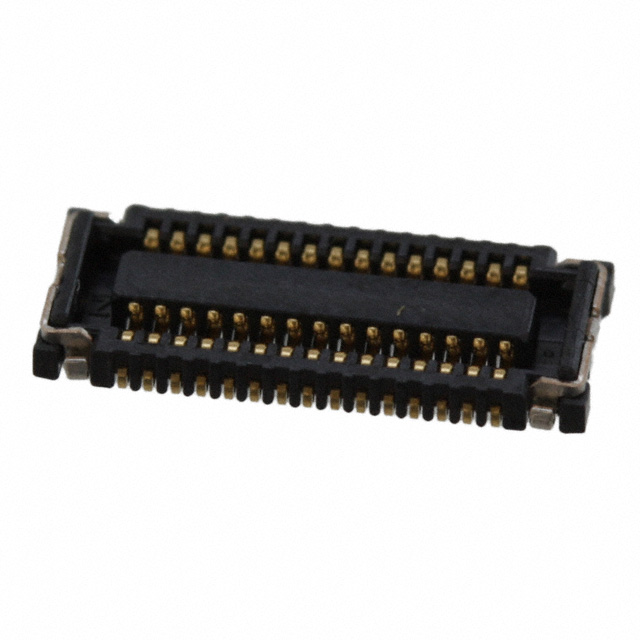

JAE Electronics WP3-S030VA1-R500	Gold	Receptacle Center Strip Contacts	1 mm	Surface Mount	1 mm	0.039 "	2	0.1 Ám	4 Áin	Solder Retention	0.4 mm	0.016 in	30

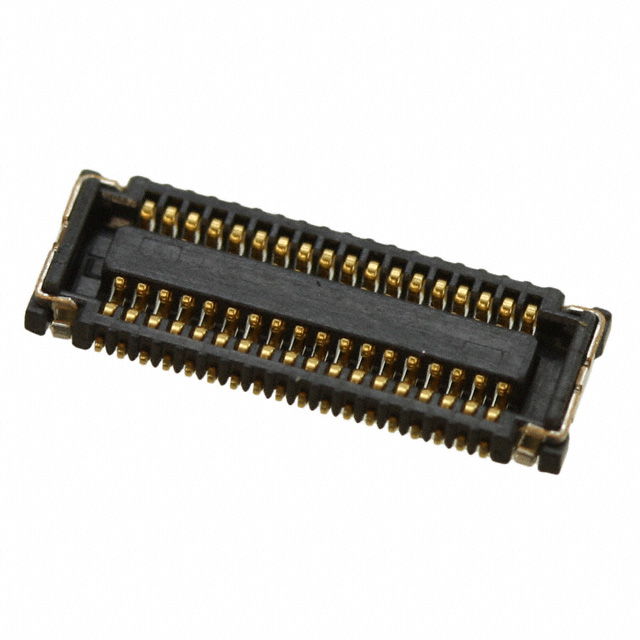

JAE Electronics WP3-S036VA1-R6000	Gold	Receptacle Center Strip Contacts	1 mm	Surface Mount	1 mm	0.039 "	2	0.1 Ám	4 Áin	Solder Retention	0.4 mm	0.016 in	36
JAE Electronics WP3-S030VA1-R6000	Gold	Receptacle Center Strip Contacts	1 mm	Surface Mount	1 mm	0.039 "	2	0.1 Ám	4 Áin	Solder Retention	0.4 mm	0.016 in	30

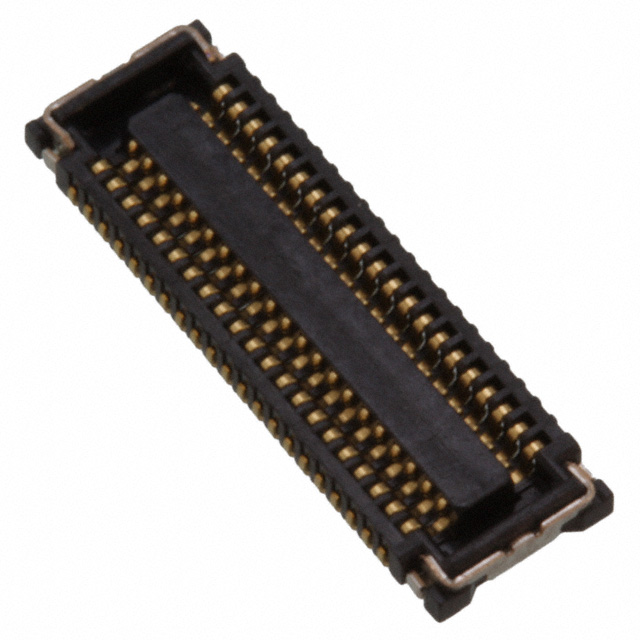

JAE Electronics WP3-S042VA1-R500	Gold	Receptacle Center Strip Contacts	1 mm	Surface Mount	1 mm	0.039 "	2	0.1 Ám	4 Áin	Solder Retention	0.4 mm	0.016 in	42

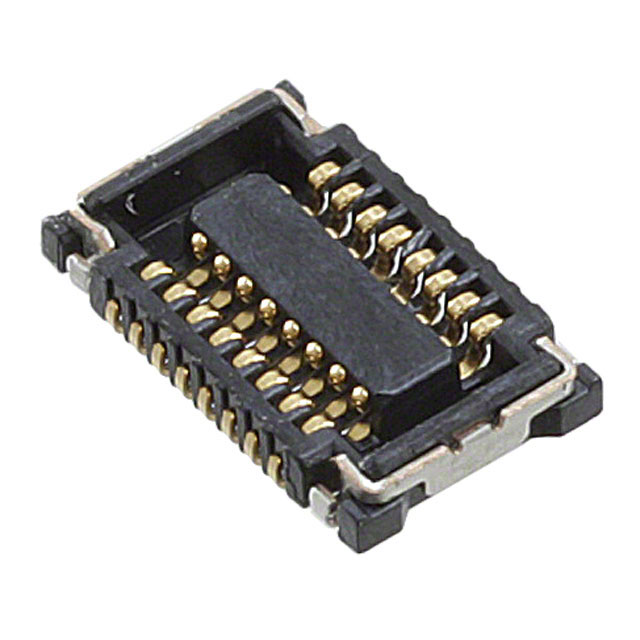

JAE Electronics WP3-S016VA1-R6000	Gold	Receptacle Center Strip Contacts	1 mm	Surface Mount	1 mm	0.039 "	2	0.1 Ám	4 Áin	Solder Retention	0.4 mm	0.016 in	16
