CI1104M1 Series
Manufacturer: Cvilux USA
Beta
⌘K
4POS 1.00MM(.039) SINGLE ROW RIG
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Style | Number of Positions | Contact Finish - Post | Insulation Height | Insulation Height | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Contact Length - Mating | Contact Length - Mating | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Features | Insulation Material | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Contact Shape | Number of Rows | Fastening Type | Contact Type | Mounting Type | Insulation Color | Termination | Shrouding | Current Rating (Amps) | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

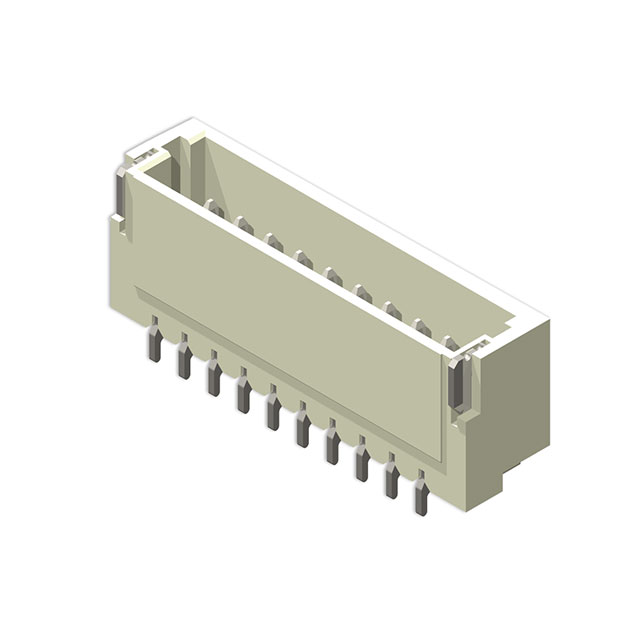

 Cvilux USA | 2.54 µm | 100 µin | Board to Cable/Wire | 4 | Tin | 0.116 " | 2.95 mm | 85 °C | -25 °C | Phosphor Bronze | 1.75 mm | 0.069 in | 1 mm | 0.039 in | All | Solder Retention | Glass Filled Halogen Free Nylon 6T Polyamide (PA6T) | UL94 V-0 | 100 çin | 2.54 çm | Header | Rectangular | 1 | Detent Lock | Male Pin | Right Angle Surface Mount | Natural | Solder | Shrouded - 4 Wall | 1 A | 50 VAC |

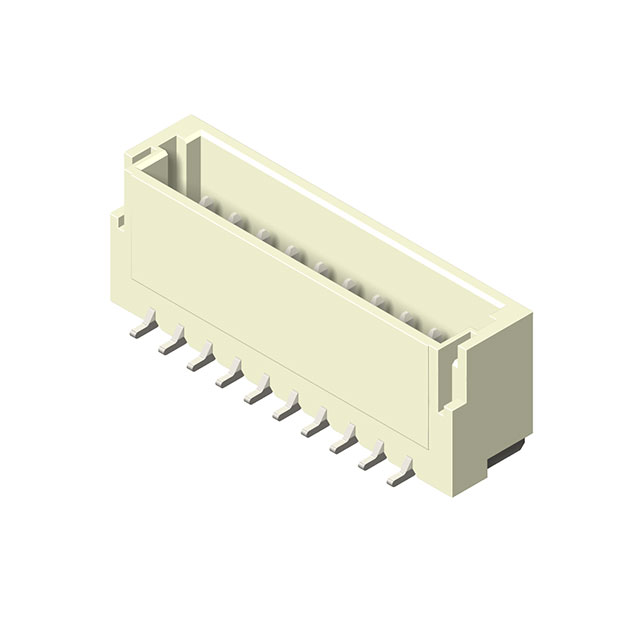

 Cvilux USA | 2.54 µm | 100 µin | Board to Cable/Wire | 4 | Tin | 0.169 " | 4.3 mm | 85 °C | -25 °C | Phosphor Bronze | 1.75 mm | 0.069 in | 1 mm | 0.039 in | All | Pick and Place Solder Retention | Glass Filled Halogen Free Nylon 6T Polyamide (PA6T) | UL94 V-0 | 100 çin | 2.54 çm | Header | Rectangular | 1 | Detent Lock | Male Pin | Surface Mount | Natural | Solder | Shrouded - 4 Wall | 1 A | 50 VAC |
