M52-511 Series
Manufacturer: Harwin Inc.
Beta
⌘K

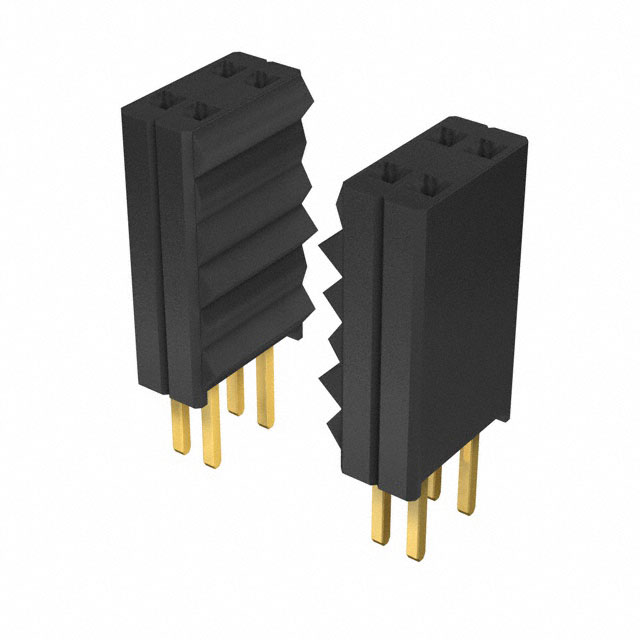

23+23 POS. FEMALE DIL VERTICAL THROUGHBOARD CONN. ROHS COMPLIANT: YES
| Part | Contact Shape | Applications | Insulation Material | Contact Material | Termination | Number of Positions Loaded | Contact Finish - Mating | Contact Type | Insulation Height | Insulation Height | Number of Rows [custom] | Connector Type | Number of Positions | Fastening Type | Mounting Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Insulation Color | Contact Length - Post [custom] | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Rectangular | General Purpose Medical Telecommunications | Nylon 9T Polyamide (PA9T) | Phosphor Bronze | Solder | All | Gold | Forked | 0.335 " | 8.51 mm | 2 | Receptacle | 46 | Push-Pull | Through Hole | 0.1 in | 2.54 mm | -40 C | 105 ░C | UL94 V-0 | 1.27 mm | 0.05 in | Black | 0.11 in | 2.79 mm |
