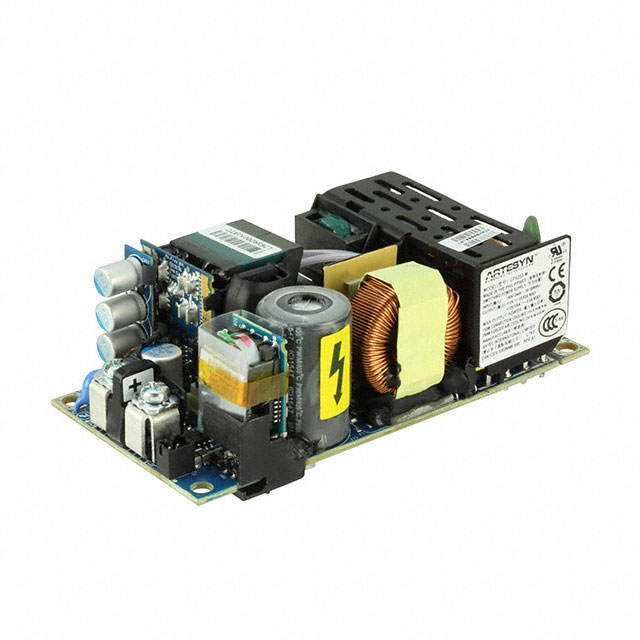

CPS253 Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 12V 20.83(CONVECTION)A/12.92(FORCED AIR)A 250W
| Part | Minimum Load Required | Approval Agency | Features | Mounting Type | Type | Applications | Voltage - Isolation | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Current - Output 2 | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input [Max] | Voltage - Input [Min] | Efficiency | Voltage - Output 1 | Number of Outputs | Voltage - Output 2 | Current - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | CCC CSA UL | PFC | Rack Mount | Open Frame | ITE (Commercial) Medical | 4000 V | 1.29 in | 32.8 mm | 4 " | 2 in | 101.6 mm | 50.8 mm | 100 mA | 20 °C | 70 °C | 264 VAC | 90 VAC | 93 % | 12 V | 2 | 5 V | 12.92 A |
