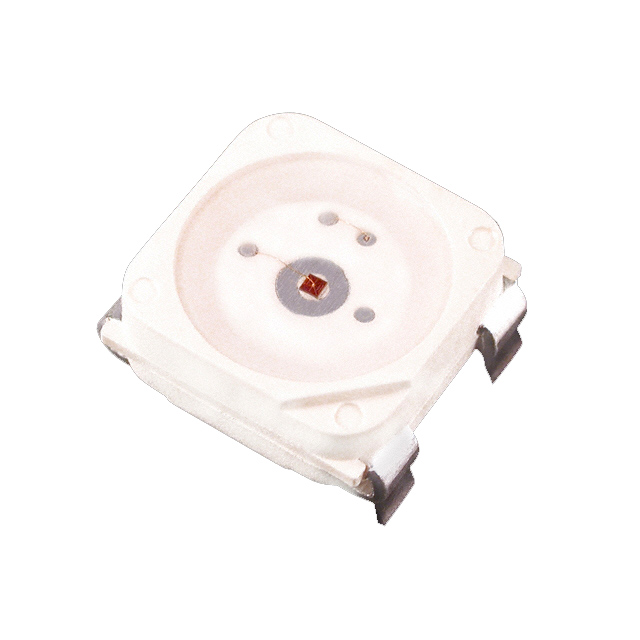

AA1010 Series

Catalog

LED YELLOW 588NM 4PLCC

Part	Thermal Resistance of Package	Temperature - Test	Lumens/Watt @ Current - Test	Mounting Type	Current - Test	Wavelength	Luminous Flux @ Current/Temperature	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Color	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Viewing Angle	Package / Case
Kingbright AA1010SY28ZC	80 °C/W	25 °C	26 lm/W	Surface Mount	350 mA	588 nm	23 lm	4-PLCC	0.394 in	0.394 in	10 mm	10 mm	Yellow	4.65 mm	0.183 in	350 mA	2.5 V	120 °	0404 (1010 Metric)
Kingbright AA1010ZG10ZC	9 °C/W	25 °C	56 lm/W	Surface Mount	350 mA	530 nm	65 lm	4-PLCC	0.394 in	0.394 in	10 mm	10 mm	Green	4.65 mm	0.183 in	350 mA	3.3 V	120 °	0404 (1010 Metric)

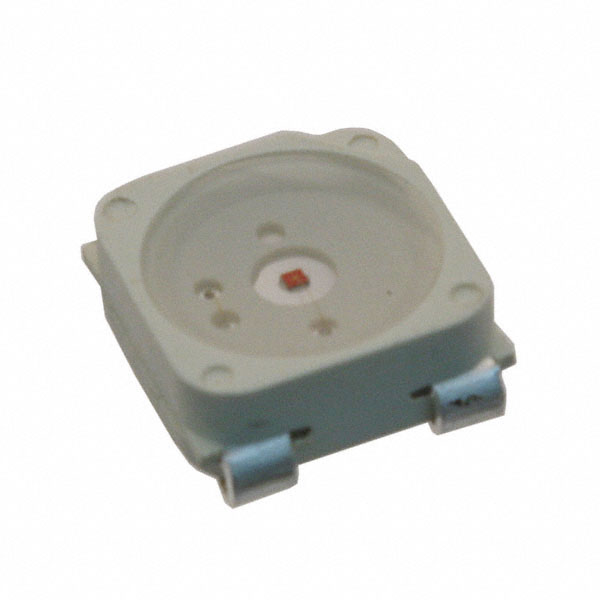

Kingbright AA1010SE28ZC	60 °C/W	25 °C	31 lm/W	Surface Mount	350 mA	625 nm		4-PLCC	0.394 in	0.394 in	10 mm	10 mm	Red	4.65 mm	0.183 in	350 mA	2.5 V	120 °	0404 (1010 Metric)
