892-090 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 90POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Contact Type	Number of Positions	Number of Rows [custom]	Termination	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions/Bay/Row	Gender	Pitch	Pitch	Features	Mounting Type	Contact Finish	Color	Read Out	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Card Type
EDAC Inc. 892-090-560-212	2	Polyphenylene Sulfide (PPS)	Cantilever	90	2	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	45	Female	0.1 "	2.54 mm	Card Extender	Board Edge Straddle Mount	Gold	Black	Dual	0.25 Ám	10 Áin	125 °C	-40 C	Non Specified - Dual Edge
EDAC Inc. 892-090-500-204	2	Polyphenylene Sulfide (PPS)	Cantilever	90	2	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	45	Female	0.1 "	2.54 mm		Through Hole	Gold	Black	Dual	0.25 Ám	10 Áin	125 °C	-40 C	Non Specified - Dual Edge
EDAC Inc. 892-090-520-204	2	Polyphenylene Sulfide (PPS)	Cantilever	90	2	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	45	Female	0.1 "	2.54 mm		Through Hole	Gold	Black	Dual	0.25 Ám	10 Áin	125 °C	-40 C	Non Specified - Dual Edge

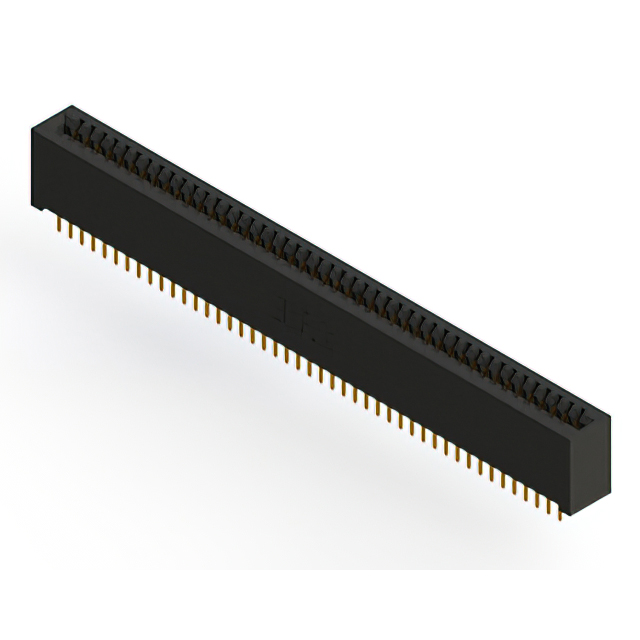

EDAC Inc. 892-090-521-201	2	Polyphenylene Sulfide (PPS)	Cantilever	90	2	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy				45	Female	0.1 "	2.54 mm		Through Hole	Gold	Black	Dual	0.25 Ám	10 Áin	125 °C	-40 C	Non Specified - Dual Edge
EDAC Inc. 892-090-560-207	2	Polyphenylene Sulfide (PPS)	Cantilever	90	2	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening			45	Female	0.1 "	2.54 mm	Card Extender	Board Edge Straddle Mount	Gold	Black	Dual	0.25 Ám	10 Áin	125 °C	-40 C	Non Specified - Dual Edge
EDAC Inc. 892-090-540-202	2	Polyphenylene Sulfide (PPS)	Cantilever	90	2	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	45	Female	0.1 "	2.54 mm		Through Hole	Gold	Black	Dual	0.25 Ám	10 Áin	125 °C	-40 C	Non Specified - Dual Edge

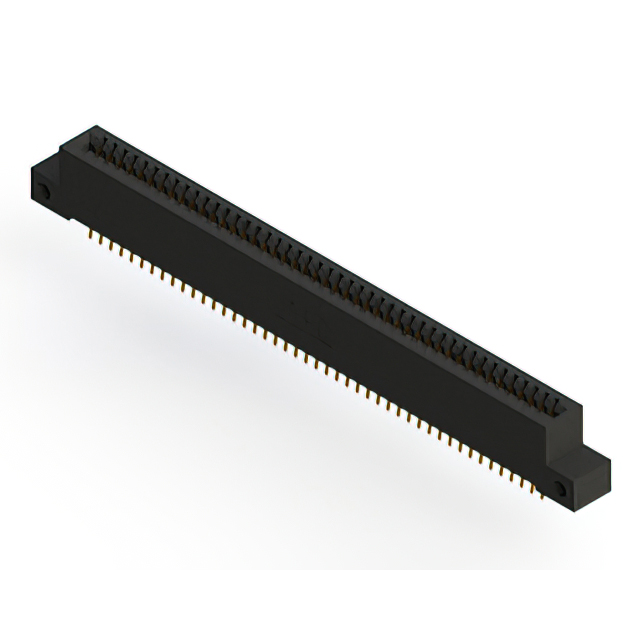

EDAC Inc. 892-090-556-212	2	Polyphenylene Sulfide (PPS)	Cantilever	90	2	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	45	Female	0.1 "	2.54 mm	Card Extender	Board Edge Straddle Mount	Gold	Black	Dual	0.25 Ám	10 Áin	125 °C	-40 C	Non Specified - Dual Edge
EDAC Inc. 892-090-523-204	2	Polyphenylene Sulfide (PPS)	Cantilever	90	2	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	45	Female	0.1 "	2.54 mm		Through Hole	Gold	Black	Dual	0.25 Ám	10 Áin	125 °C	-40 C	Non Specified - Dual Edge
EDAC Inc. 892-090-540-203	2	Polyphenylene Sulfide (PPS)	Cantilever	90	2	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Floating Bobbin Flush Mount	0.116 "	2.95 mm	45	Female	0.1 "	2.54 mm		Through Hole	Gold	Black	Dual	0.25 Ám	10 Áin	125 °C	-40 C	Non Specified - Dual Edge
EDAC Inc. 892-090-541-203	2	Polyphenylene Sulfide (PPS)	Cantilever	90	2	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Floating Bobbin Flush Mount	0.116 "	2.95 mm	45	Female	0.1 "	2.54 mm		Through Hole	Gold	Black	Dual	0.25 Ám	10 Áin	125 °C	-40 C	Non Specified - Dual Edge
