AST041 Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K
TERM BLOCK 7POS 45DEG 2.5MM PCB
| Part | Contact Material - Plating | Clamp Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Color | Voltage | Wire Gauge [Min] | Wire Gauge [Max] | Positions Per Level [custom] | Mounting Type | Wire Termination | Features | Mating Orientation | Mating Orientation | Pitch | Pitch | Number of Levels | Current | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | Steel | -40 C | 105 ░C | Gray | 150 V | 17.5 AWG | 28 AWG | 7 | Through Hole | Screwless - Spring Cage Tension Clamp | Lever Actuated | 135 ° | 45 ° | 2.5 mm | 0.098 in | 1 | 8 A | |
METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | Steel | -40 C | 105 ░C | Gray | 150 V | 17.5 AWG | 28 AWG | Through Hole | Screwless - Spring Cage Tension Clamp | Lever Actuated | 135 ° | 45 ° | 2.5 mm | 0.098 in | 1 | 8 A | 18 | |
METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | Steel | -40 C | 105 ░C | Gray | 150 V | 17.5 AWG | 28 AWG | Through Hole | Screwless - Spring Cage Tension Clamp | Lever Actuated | 135 ° | 45 ° | 2.5 mm | 0.098 in | 1 | 8 A | 12 | |

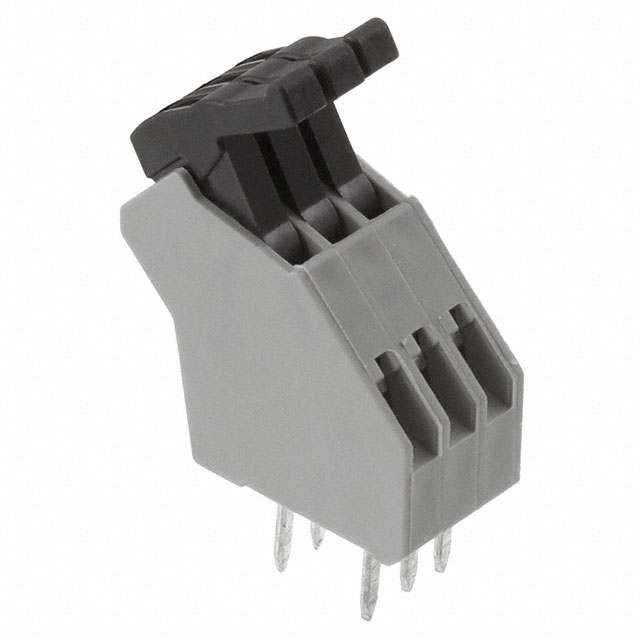

 METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | Steel | -40 C | 105 ░C | Gray | 150 V | 17.5 AWG | 28 AWG | Through Hole | Screwless - Spring Cage Tension Clamp | Lever Actuated | 135 ° | 45 ° | 2.5 mm | 0.098 in | 1 | 8 A | 3 | |

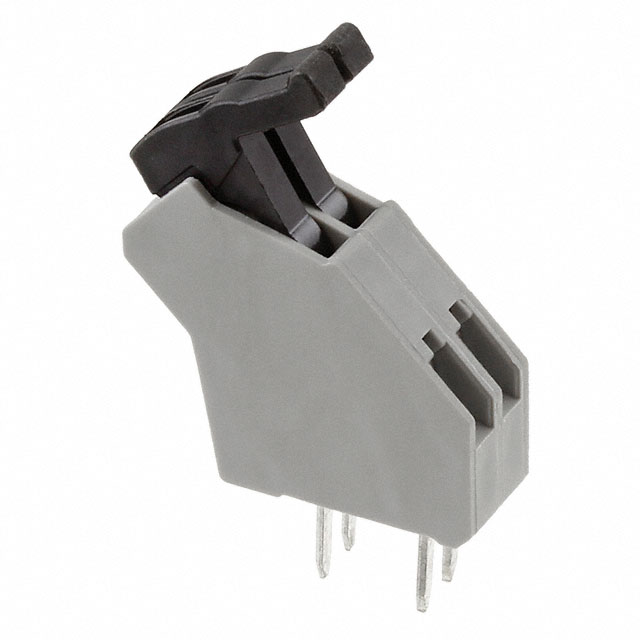

 METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | Steel | -40 C | 105 ░C | Gray | 150 V | 17.5 AWG | 28 AWG | Through Hole | Screwless - Spring Cage Tension Clamp | Lever Actuated | 135 ° | 45 ° | 2.5 mm | 0.098 in | 1 | 8 A | 2 | |

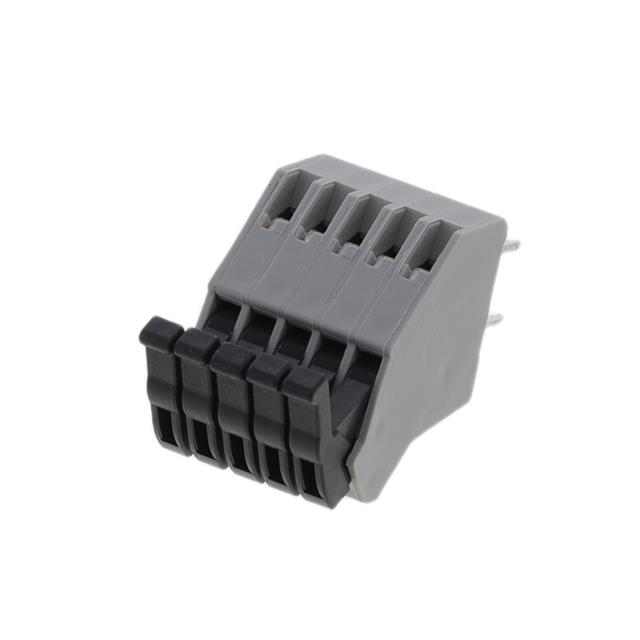

 METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | Steel | -40 C | 105 ░C | Gray | 150 V | 17.5 AWG | 28 AWG | Through Hole | Screwless - Spring Cage Tension Clamp | Lever Actuated | 135 ° | 45 ° | 2.5 mm | 0.098 in | 1 | 8 A | 5 | |

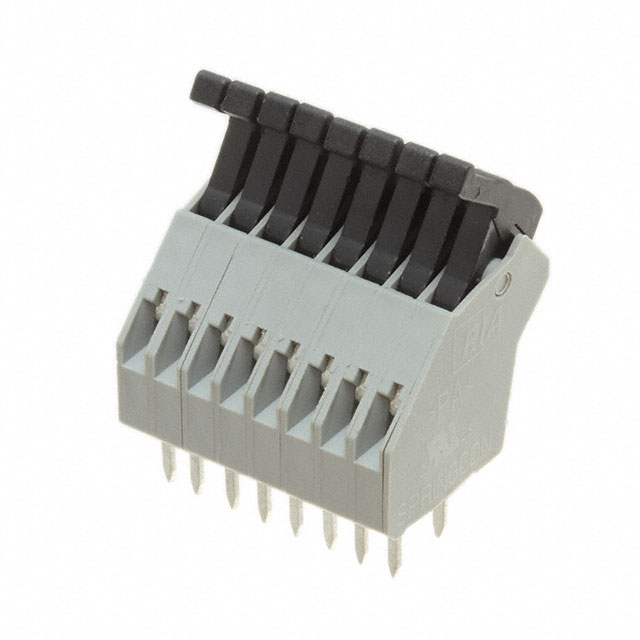

 METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | Steel | -40 C | 105 ░C | Gray | 150 V | 17.5 AWG | 28 AWG | Through Hole | Screwless - Spring Cage Tension Clamp | Lever Actuated | 135 ° | 45 ° | 2.5 mm | 0.098 in | 1 | 8 A | 8 | |

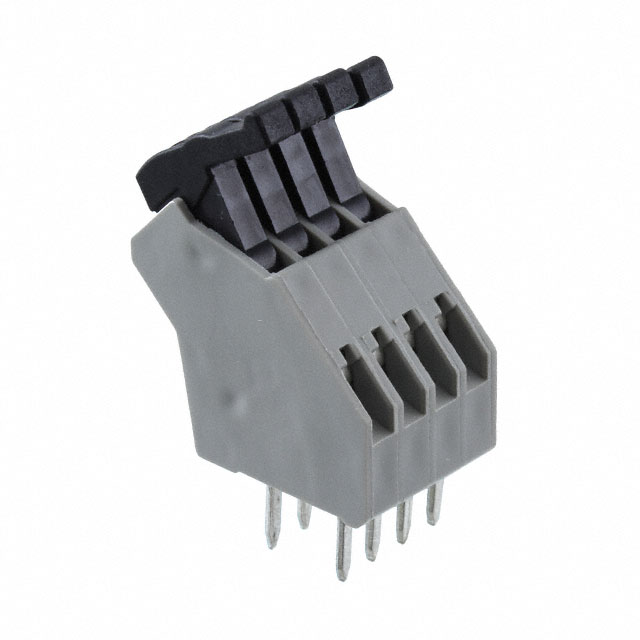

 METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | Steel | -40 C | 105 ░C | Gray | 150 V | 17.5 AWG | 28 AWG | Through Hole | Screwless - Spring Cage Tension Clamp | Lever Actuated | 135 ° | 45 ° | 2.5 mm | 0.098 in | 1 | 8 A | 4 | |
METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | Steel | -40 C | 105 ░C | Gray | 150 V | 17.5 AWG | 28 AWG | Through Hole | Screwless - Spring Cage Tension Clamp | Lever Actuated | 135 ° | 45 ° | 2.5 mm | 0.098 in | 1 | 8 A | 15 | |
METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | Steel | -40 C | 105 ░C | Gray | 150 V | 17.5 AWG | 28 AWG | Through Hole | Screwless - Spring Cage Tension Clamp | Lever Actuated | 135 ° | 45 ° | 2.5 mm | 0.098 in | 1 | 8 A | 10 |
