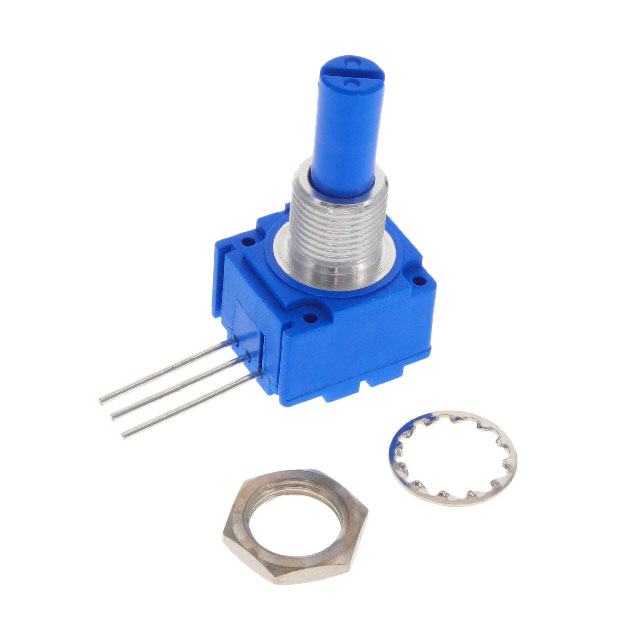

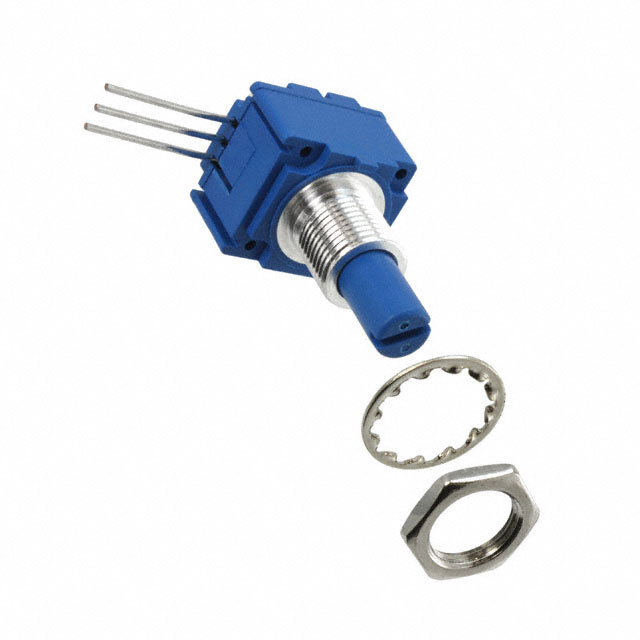

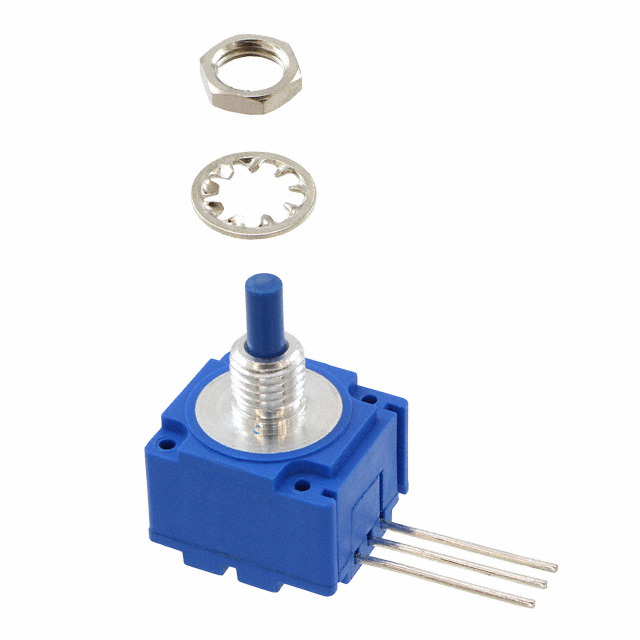

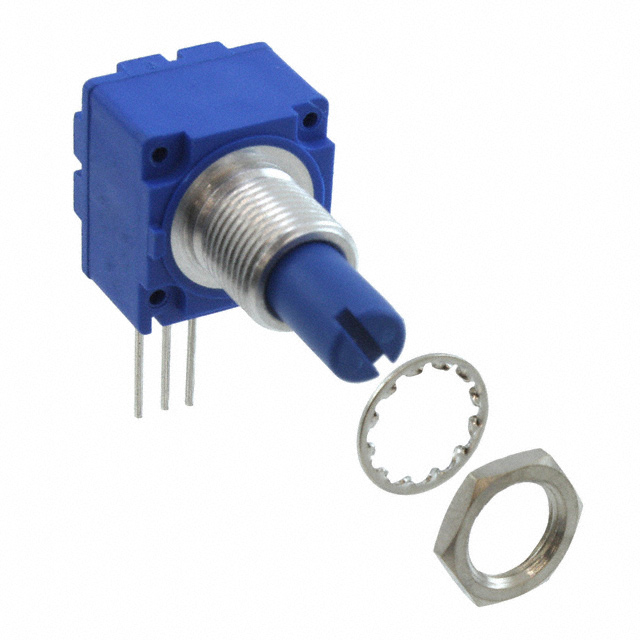

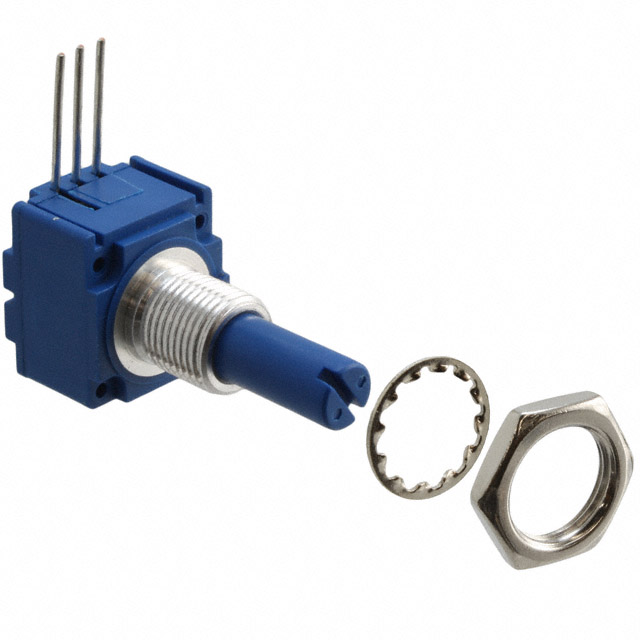

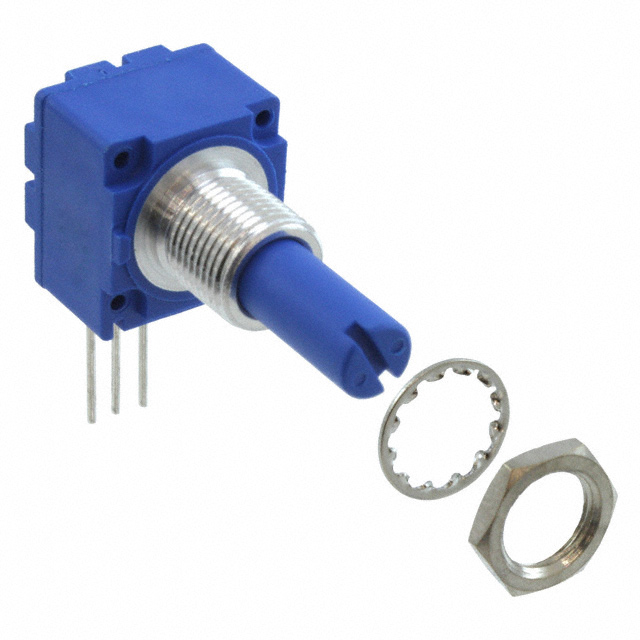

91A1A Series
Manufacturer: Bourns Inc.
Beta
⌘K
POT 1K OHM 2W CERMET LINEAR
| Part | Actuator Length [x] | Actuator Length [x] | Number of Gangs | Power (Watts) | Bushing Thread | Size - Body [x] | Size - Body [x] | Size - Body [y] | Size - Body [y] | Number of Turns | Taper | Termination Style | Resistive Material | Built in Switch | Tolerance | Adjustment Type | Rotation | Actuator Type | Resistance (Ohms) | Mounting Type | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Temperature Coefficient | Power (Watts) | Resistance (Ohms) [custom] | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | 19.05 mm | 0.75 in | 1 | 2 W | 3/8-32 | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 1 | Linear | PC Pins | Cermet | None | 10 % | Side Adjustment | 300 ░ | Round | 1k | Panel Mount | 6.35 mm | 0.25 in | 150 ppm/°C | |||
 Bourns Inc. | 19.05 mm | 0.75 in | 1 | 0.5 W | 3/8-32 | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 1 | Logarithmic | PC Pins | Conductive Plastic | None | 20 % | Side Adjustment | 300 ░ | Slotted | 100k | Panel Mount | 6.35 mm | 0.25 in | 1000 ppm/°C | 0.5 W | ||
 Bourns Inc. | 22.23 mm | 0.875 in | 1 | 1 W | 3/8-32 | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 1 | Linear | PC Pins | Conductive Plastic | None | 10 % | Side Adjustment | 300 ░ | Slotted | Panel Mount | 6.35 mm | 0.25 in | 1000 ppm/°C | 25 kOhms | |||
 Bourns Inc. | 19.05 mm | 0.75 in | 1 | 0.5 W | 3/8-32 | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 1 | Logarithmic | PC Pins | Conductive Plastic | None | 20 % | Side Adjustment | 300 ░ | Slotted | Panel Mount | 6.35 mm | 0.25 in | 1000 ppm/°C | 0.5 W | 5 kOhms | ||
 Bourns Inc. | 22.23 mm | 0.875 in | 1 | 1 W | 3/8-32 | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 1 | Linear | PC Pins | Conductive Plastic | None | 20 % | Side Adjustment | 300 ░ | Slotted | 1k | Panel Mount | 6.35 mm | 0.25 in | 1000 ppm/°C | |||
Bourns Inc. | 22.23 mm | 0.875 in | 1 | 1 W | 3/8-32 | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 1 | Linear | PC Pins | Conductive Plastic | None | 20 % | Side Adjustment | 300 ░ | Slotted | Panel Mount | 6.35 mm | 0.25 in | 1000 ppm/°C | 500 kOhms | |||
 Bourns Inc. | 15.88 mm | 0.625 in | 1 | 1 W | 3/8-32 | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 1 | Linear | PC Pins | Conductive Plastic | None | 20 % | Side Adjustment | 300 ░ | Slotted | 10k | Panel Mount | 6.35 mm | 0.25 in | 1000 ppm/°C | |||
 Bourns Inc. | 22.23 mm | 0.875 in | 1 | 0.5 W | 3/8-32 | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 1 | Logarithmic | PC Pins | Conductive Plastic | None | 20 % | Side Adjustment | 300 ░ | Slotted | 10k | Panel Mount | 6.35 mm | 0.25 in | 1000 ppm/°C | 0.5 W | ||
Bourns Inc. | 19.05 mm | 0.75 in | 1 | 1 W | 3/8-32 | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 1 | Linear | PC Pins | Conductive Plastic | None | 20 % | Side Adjustment | 300 ░ | Slotted | Panel Mount | 6.35 mm | 0.25 in | 1000 ppm/°C | 5 kOhms | |||
 Bourns Inc. | 22.23 mm | 0.875 in | 1 | 2 W | 3/8-32 | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 1 | Linear | PC Pins | Cermet | None | 10 % | Side Adjustment | 300 ░ | Slotted | Panel Mount | 6.35 mm | 0.25 in | 150 ppm/°C | 50 kOhms |
