TPS7A4701-EP Series

Automotive 1-A, 36-V, low-noise, high-PSRR, low-dropout voltage regulator with enable

Catalog

Automotive 1-A, 36-V, low-noise, high-PSRR, low-dropout voltage regulator with enable

Part	Protection Features	Supplier Device Package	Output Type	Mounting Type	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max] [custom]	Output Configuration	Current - Output	Voltage - Output (Min/Fixed)	Voltage - Output (Max) [Max]	Package / Case	Current - Quiescent (Iq)	Voltage Dropout (Max) [Max]	Number of Regulators	Current - Supply (Max) [Max]	PSRR	Supplied Contents	Board Type	Regulator Type	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Channels per IC	Grade	Qualification
Texas Instruments TPS7A4701MRGWREP	Over Current Over Temperature Under Voltage Lockout (UVLO)	20-VQFN (5x5)	Adjustable/Programmable	Surface Mount	Enable	125 ¯C	-55 °C	35 V	Positive	1 A	1.4 V	34 V	20-VQFN Exposed Pad	1 mA	0.45 V	1	6.1 mA	78 dB

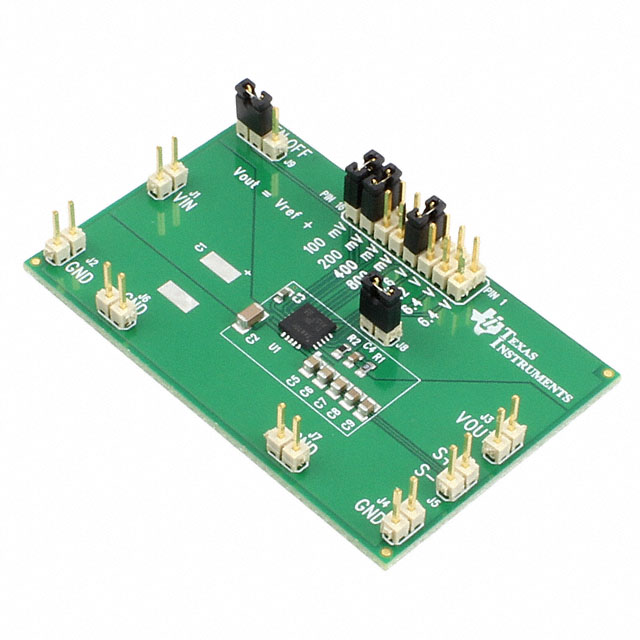

Texas Instruments TPS7A4701EVM-094										1 A									Board(s)	Fully Populated	Positive Adjustable	35 V	3 V	TPS7A4701	1 - Single
Texas Instruments TPS7A4701QRGWRQ1	Over Current Over Temperature Under Voltage Lockout (UVLO)	20-VQFN (5x5)	Adjustable/Programmable	Surface Mount	Enable	145 °C	-40 C	35 V	Positive	1 A	1.4 V	34 V	20-VQFN Exposed Pad	1 mA	0.45 V	1	6.1 mA	78 dB								Automotive	AEC-Q100

Catalog

Automotive 1-A, 36-V, low-noise, high-PSRR, low-dropout voltage regulator with enable

Key Features

• Input Voltage Range: 3 V to 36 VOutput Voltage Noise: 4 µVRMS(10 Hz, 100 kHz)Power-Supply Ripple Rejection:82 dB (100 Hz)≥ 55 dB (10 Hz, 10 MHz)Two Output Voltage Modes:ANY-OUT™ Version (User-Programmable Output via PCB Layout):No External Feedback Resistors or Feed-Forward Capacitors RequiredOutput Voltage Range: 1.4 V to 20.5 VAdjustable Version:Output Voltage Range: 1.4 V to 34 VOutput Current: 1 ADropout Voltage: 307 mV at 1 ACMOS Logic Level-Compatible Enable PinBuilt-In Fixed Current Limit and Thermal ShutdownAvailable in High-Performance Thermal Package: 5-mm × 5-mm QFNOperating Temperature Range: –55°C to 125°CSupports Defense, Aerospace, and Medical Applications:Controlled BaselineOne Assembly/Test SiteOne Fabrication SiteAvailable in Extended (–55°C to 125°C) Temperature RangeExtended Product Life CycleExtended Product-Change NotificationProduct TraceabilityInput Voltage Range: 3 V to 36 VOutput Voltage Noise: 4 µVRMS(10 Hz, 100 kHz)Power-Supply Ripple Rejection:82 dB (100 Hz)≥ 55 dB (10 Hz, 10 MHz)Two Output Voltage Modes:ANY-OUT™ Version (User-Programmable Output via PCB Layout):No External Feedback Resistors or Feed-Forward Capacitors RequiredOutput Voltage Range: 1.4 V to 20.5 VAdjustable Version:Output Voltage Range: 1.4 V to 34 VOutput Current: 1 ADropout Voltage: 307 mV at 1 ACMOS Logic Level-Compatible Enable PinBuilt-In Fixed Current Limit and Thermal ShutdownAvailable in High-Performance Thermal Package: 5-mm × 5-mm QFNOperating Temperature Range: –55°C to 125°CSupports Defense, Aerospace, and Medical Applications:Controlled BaselineOne Assembly/Test SiteOne Fabrication SiteAvailable in Extended (–55°C to 125°C) Temperature RangeExtended Product Life CycleExtended Product-Change NotificationProduct Traceability

Description

The TPS7A4701-EP is a positive voltage (36 V), ultra-low-noise (4 µVRMS) low-dropout linear regulators (LDO) capable of sourcing a 1-A load. The TPS7A4701-EP output voltage can be configured with a user-programmable PCB layout (up to 20.5 V), or adjustable (up to 34 V) with external feedback resistors. The TPS7A4701-EP is designed with bipolar technology primarily for high-accuracy, high-precision instrumentation applications where clean voltage rails are critical to maximize system performance. This feature makes the device ideal for powering operational amplifiers, analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and other high-performance analog circuitry in critical applications such as medical, radio frequency (RF), and test-and-measurement. In addition, the TPS7A4701-EP is ideal for post DC-DC converter regulation. By filtering out the output voltage ripple inherent to DC-DC switching conversions, maximum system performance is ensured in sensitive instrumentation, test-and-measurement, audio, and RF applications. The TPS7A4701-EP is a positive voltage (36 V), ultra-low-noise (4 µVRMS) low-dropout linear regulators (LDO) capable of sourcing a 1-A load. The TPS7A4701-EP output voltage can be configured with a user-programmable PCB layout (up to 20.5 V), or adjustable (up to 34 V) with external feedback resistors. The TPS7A4701-EP is designed with bipolar technology primarily for high-accuracy, high-precision instrumentation applications where clean voltage rails are critical to maximize system performance. This feature makes the device ideal for powering operational amplifiers, analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and other high-performance analog circuitry in critical applications such as medical, radio frequency (RF), and test-and-measurement. In addition, the TPS7A4701-EP is ideal for post DC-DC converter regulation. By filtering out the output voltage ripple inherent to DC-DC switching conversions, maximum system performance is ensured in sensitive instrumentation, test-and-measurement, audio, and RF applications.
